RiverRidge 02-075 Assembly Instructions Manual

Kids storage stacker with veggie bin/2 cubbies
Hide thumbs

Advertisement

Quick Links

Download this manual
This product requires assembly by an adult because of the small parts. Care should be
taken in unpacking and assembling this item to keep the small parts away from children.
WARNING
Young children can be seriously injured or killed, if furniture tips over.
Don't use this item for a TV stand.
Use angle-braces or anchors to secure furniture to the wall.

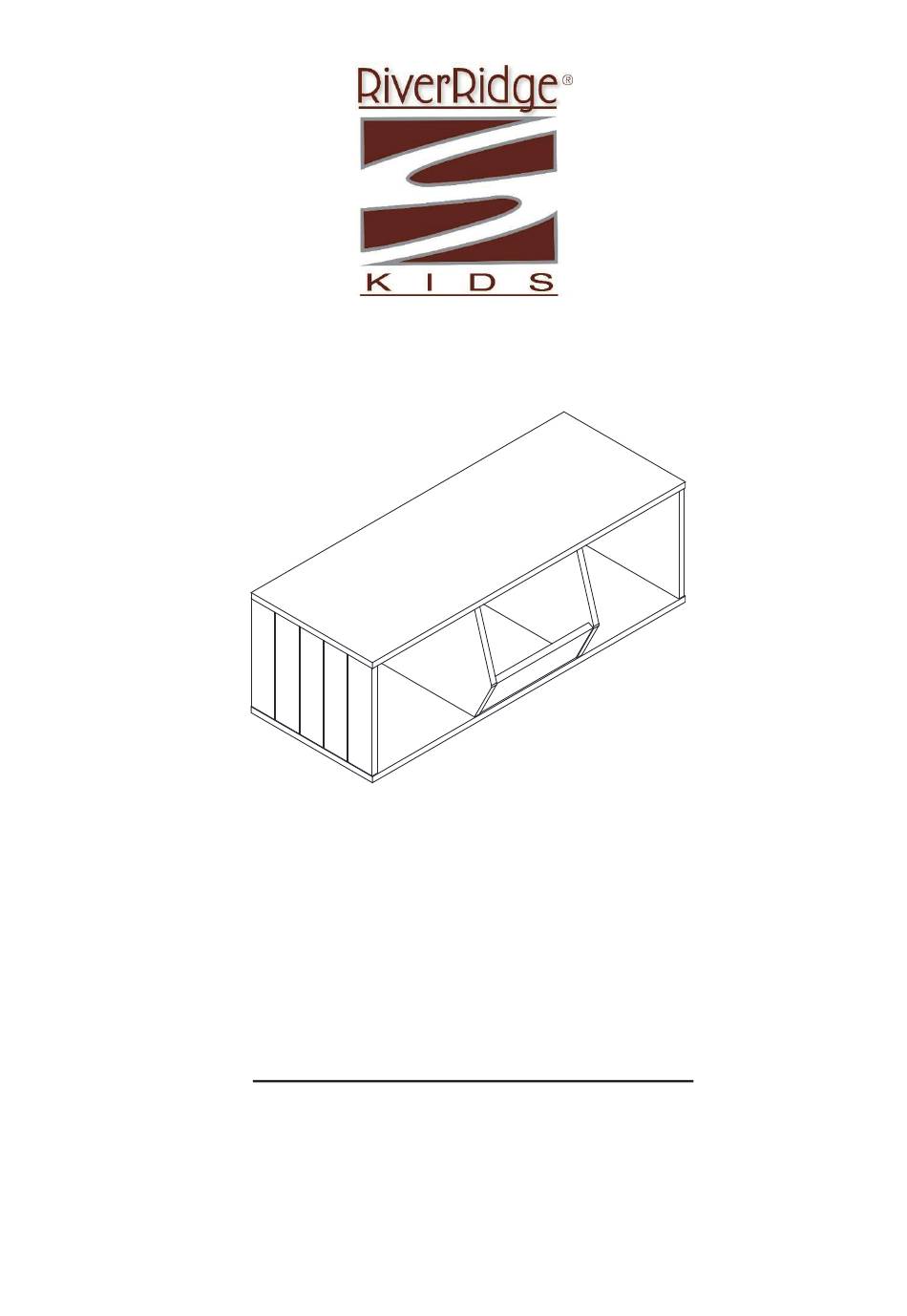

ASSEMBLY INSTRUCTIONS
RiverRidge® Kids Storage Stacker
with Veggie Bin/2 Cubbies
ITEM #: 02-075 White
ITEM #: 02-076 Navy
ITEM #: 02-077 Turquoise
ADULT ASSEMBLY REQUIRED

Advertisement

loading
Need help?

Need help?

Do you have a question about the 02-075 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RiverRidge 02-075

Summary of Contents for RiverRidge 02-075

  • Page 1 ASSEMBLY INSTRUCTIONS RiverRidge® Kids Storage Stacker with Veggie Bin/2 Cubbies ITEM #: 02-075 White ITEM #: 02-076 Navy ITEM #: 02-077 Turquoise ADULT ASSEMBLY REQUIRED This product requires assembly by an adult because of the small parts. Care should be taken in unpacking and assembling this item to keep the small parts away from children.
  • Page 2 Send requests for missing or damaged parts replacements by email to : customer.service@ssi-rr.com or call toll free 1-(844)-223-5201 or order parts on line at www.riverridgehome.com WARNING: EACH STORAGE STACKER WILL HOLD UP TO 25 POUNDS PER VEGGIE BIN/ CUBBY. DO NOT LOAD EACH VEGGIE BIN/CUBBY WITH MORE THAN 25 POUNDS. THIS MAY CAUSE DAMAGE TO THE STORAGE STACKER AND MAY CAUSE SERIOUS INJURY OR DEATH.

  • Page 3: Parts List

    PARTS LIST PARTS DESCRIPTION WOOD DOWEL 20PCS 10PCS CAM BOLT 10PCS CAM LOCK 9PCS SCREW 4x35mm 2PCS CONNECTOR BRACKET 5PCS SCREW 3x12mm ANCHOR BRACKET 2PCS PLASTIC LOCK STRAP PLASTIC ANCHOR...
  • Page 4 PARTS DESCRIPTION FRONT BIN PANEL RIGHT DIVIDER LEFT DIVIDER RIGHT SIDE PANEL LEFT SIDE PANEL BOTTOM BOARD TOP BOARD BACK BOARD TOOLS NEEDED FOR ASSEMBLY : FLAT & PHILIPS SCREWDRIVER(NOT INCLUDED) THE USE OF POWER SCREWDRIVER IS NOT RECOMMENED...
  • Page 5 STEP 1 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of front bin panel (1). STEP 2 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of right divider (2). 2.
  • Page 6 STEP 3 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of left divider (3). 2. Screw 1 cam bolt (B) into the pre-threaded hole on the left divider (3). STEP 4 1. Attach the front bin panel (1) to right divider (2) by inserting the wood dowels into the wood dowel holes on the right divider (2) and inserting the cam bolt (B) into the cam lock hole on the front bin panel (1).
  • Page 7 STEP 5 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of right side panel (4). STEP 6 1. Insert 4 wood dowels (A) into the wood dowel holes on the edges of left side panel (5).
  • Page 8 STEP 7 1. Attach the bottom board (6) to pre-assembled left side panel (5), left divider (3) and pre-assembled right side panel (4), right divider (2) by inserting the wood dowels into the wood dowel holes on the bottom board (6). 2.
  • Page 9 STEP 9 1. Slide the back board (8) into the grooves on the left side panel (5), right side panel (4) and bottom board (6). 2. Attach the top board (7) to pre-assembled left side panel (5), left divider (3) and pre-assembled right side panel (4), right divider (2) by inserting the wood dowels into the wood dowel holes on the top board (7) and inserting the cam bolts into the cam lock holes on the left side panel (5), left divider (3), right side panel (4) and right divider (2).
  • Page 10 STEP 11 WALL 1. Drill a hole on the wall where you want to place the storage stacker. 2. Insert the plastic anchor (I) into the hole on the wall. 3. Attach 1 anchor bracket (G) to plastic anchor (I) by inserting 1 screw (D) through the hole on the anchor bracket (G) then tighten to the plastic anchor (I).
  • Page 11 STEP 12 WALL 1. If you have more than one storage stackers, you can use 2 connector bracket (E) and 4 screws (F) to connect them. 2. Then use the anti-tip hardware (D,G,H,I) to attach the storage stackers to the wall. 3.
  • Page 12 Take appropriate action necessary to correct the hazard such as tightening of screws and taking any damaged parts away from children. Thank you for purchasing this RiverRidge® Kids Products item. We hope you enjoy it, and consider purchasing other RiverRidge® items.

This manual is also suitable for:

02-07602-077
