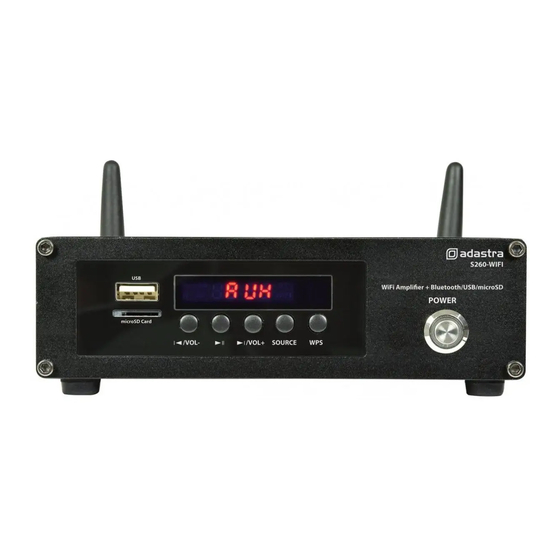

- Page 1 S260-WIFI Item ref: 103.126UK User Manual Internet Streaming Amplifier Version 1.1 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
-
Page 2: Front Panel
“WIFI ANT” and “BT ANT” (6, 10) to enable clear reception of WIFI and Bluetooth signals. The S260-WIFI amplifier can also play mp3 tracks stored onto a USB pen drive or microSD (TF) card. These should be inserted into the relevant USB port or microSD slot on the front panel (1, 2) If an external playback device is to be used, connect this to the L+R LINE IN RCA sockets on the rear panel (7). -
Page 3: Operation
The S260-WIFI delivers up to 30W per channel at 8Ω to the speaker outputs on the rear panel (8, 9). Connect an 8Ω speaker to each output with power handling of up to 30W each by unscrewing the binding posts and securing the “+” wire to the “+” post and “-” wire to the “-” post for left and right channels. - Page 4 Open the WiiM Player app and the welcome screen will be followed by a Searching screen. If the S260-WIFI has already been connected to the local WiFi, the Searching screen will confirm that it has found 1 or more devices. The app will then jump to the Device List page (shown in following pages) If the S260-WIFI is not detected, select Add Device.
- Page 5 “LinkPlay_XXXX”, as shown opposite. In the case of the S260-WIFI, the correct ID to search for will be S260-WIFI_ XXXX where XXXX is the ID number of the amplifier.
- Page 6 Change Wi-Fi if a different one is preferred. Enter the password as required and select Continue (note: the WiFi must operate on the standard 2.4GHz band for the S260-WIFI to join the network) The S260-WIFI and smart phone will now begin the connection process.
-
Page 7: Device List
Once connected, a notification will appear to confirm this, showing the signal strength. Select Next to see the Name Device page, which enables the user to give the S260-WIFI a label to describe its audio zone. Select a name (or create a custom name). -
Page 8: Browse Menu
Locally stored tracks can be listed by Song, Artist, Album or Folder for convenience. The smart phone must remain connected to the same WiFI as the S260-WIFI to maintain playback. Going back to the main Browse list, some of the listed Music services require a subscription and may be added or removed from the list as required via the icon at the bottom of the list. - Page 9 To change the audio stream or output level via the smart phone, it is necessary to connect the smart phone to the local WiFi and open the WiiM Player app for control. When the S260-WIFI is powered down, the audio stream may need to be re-set when powered on again.
