Summary of Contents for Adastra SA180
- Page 1 SA180 Secure Wall Amplifier with UHF Microphone Item ref: 953.148UK User Manual Version 1.0 Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...

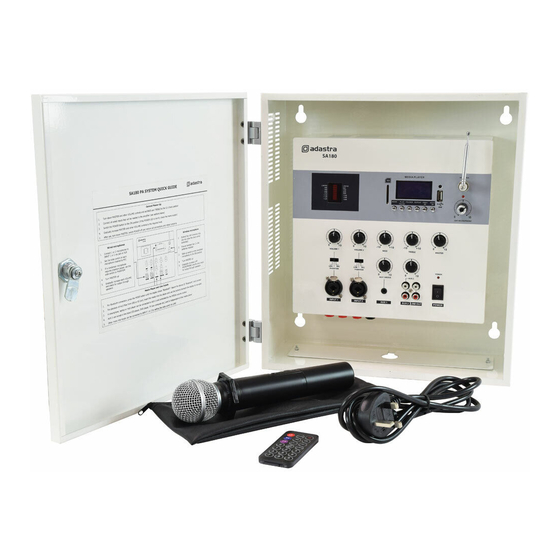

- Page 2 Introduction Thank you for choosing the Adastra SA180 secure wall amplifier as part of your public address system. This amplifier is designed to offer high quality, dependable service for mobile and installed systems. Please read this manual fully and follow the instructions to achieve the best results with your new purchase and to avoid damage through misuse.
-
Page 3: Front Panel
(supplied) to deter tampering with the connections. The SA180 has a total of 4 input channels. INPUT 1 and INPUT 2 are connected by either XLR or 6.3mm jack to the combo connectors on the front panel (6). It is important to determine which type of input source is connected and make the appropriate selection on the input type selector switch (5). -
Page 4: Speaker Outputs
Speaker outputs The SA180 can be used with standard low impedance speakers or 100V or 70V line speakers. Only one type of speaker may be used, so it is important to decide which method will be used at the start. -
Page 5: Operation
(13) up part way for testing. The SA180 is supplied with a built-in UHF wireless microphone. Install 2 x alkaline AA batteries by unscrewing the bottom of the housing and inserting the batteries with the base of each onto the spring, as indicated inside the compartment. -
Page 6: Media Player
2. Scan for devices and look for “Bluetooth” in the list of available devices (ensure that the SA180 is powered on with Bluetooth mode selected and within reception range) 3. Select “Bluetooth” and the SA180 media player display will show “Connected” if successful. -
Page 7: Specifications
Mic/line inputs 2 x combo XLR/jack Line inputs 3.5mm (Aux 1), L+R RCA (Aux 2) Line output L+R RCA Equalizer: bass 100Hz ±12dB Equaliser: treble 10kHz ±12dB Bluetooth version <0.1% Dimensions 375 x 335 x 160mm Weight 10kg SA180 User Manual... -
Page 8: Troubleshooting
Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines. Errors and omissions excepted. Copyright© 2018. AVSL Group Ltd. SA180 User Manual...
