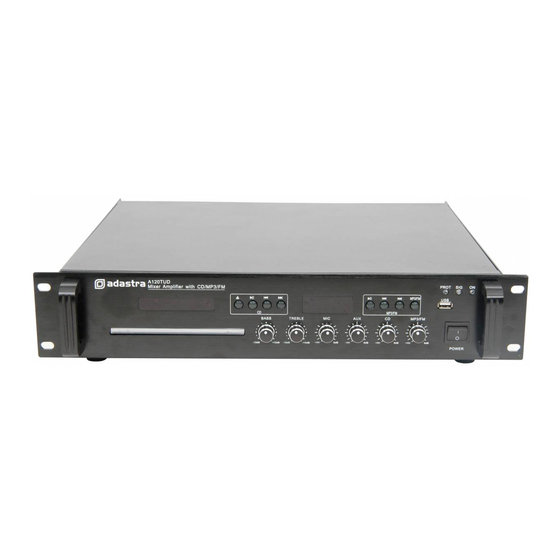

A120TUD - Mixer amplifier with USB, FM tuner and CD/DVD player
Features:
1 Mic, 1 Line input
Integral USB media player and FM tuner
CD/DVD disc player with composite video output
4-16Ω or 100V line output,
Fire alarm line input
Current limiter, short circuit, thermal protection with Protect indicator

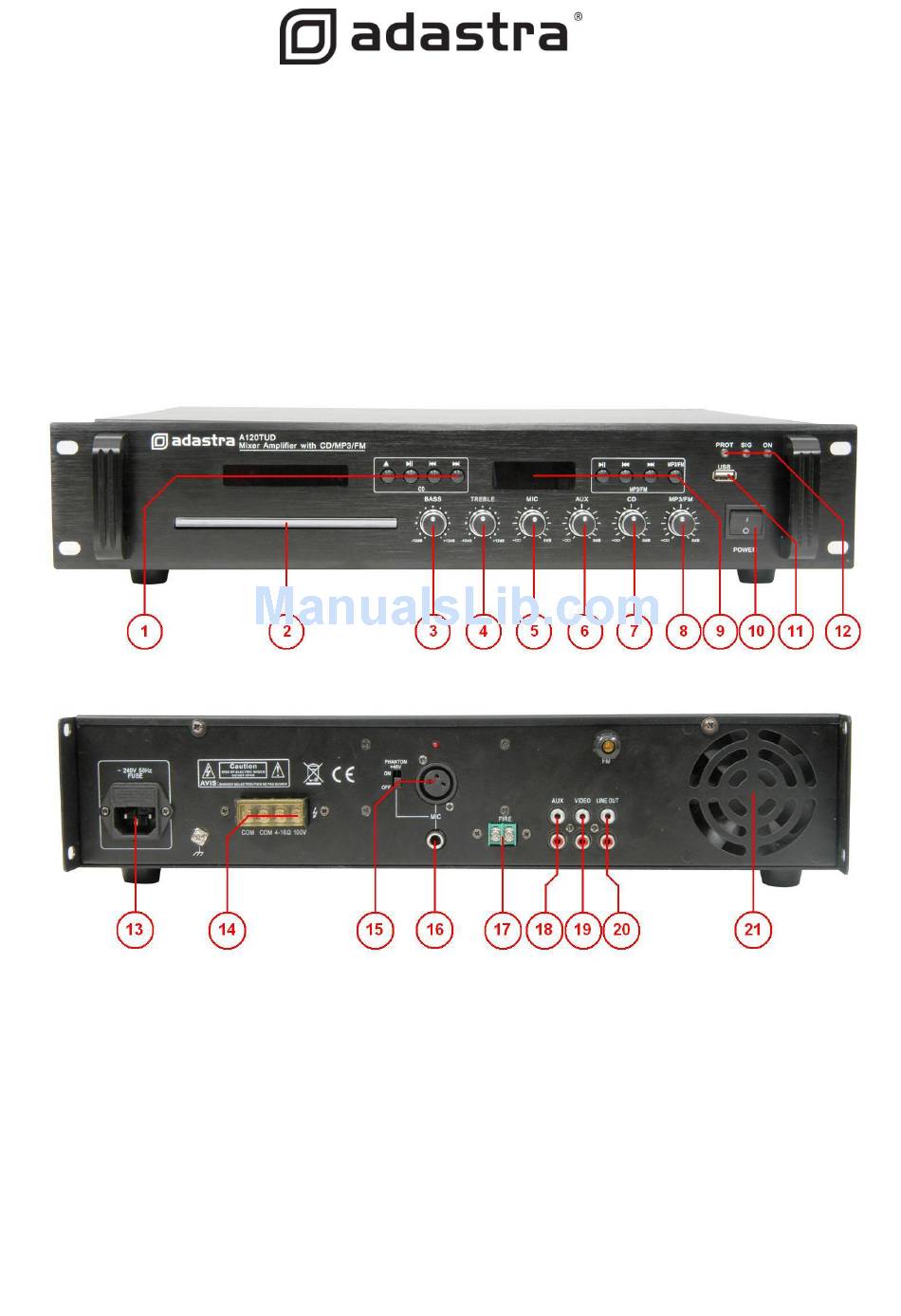

Front & Rear Panels:
1. CD/DVD player display and transport controls
2. Disc player drawer
3. BASS – master low frequency EQ
4. TREBLE – master high frequency EQ
5. MIC level
6. AUX level
7. CD/DVD level
8. USB/FM level
9. USB/FM player/tuner controls and display
10. POWER on/off switch
11. USB input
12. Status indicators
13. Mains IEC inlet and fuse
14. Speaker outputs 4-16Ω or 100V
15. MIC XLR and phantom power switch
16. MIC 6.3mm jack input
17. Fire alarm input – line level to mute all channel
18. AUX line input
19. Composite video output (2 parallel RCA outs)
20. LINE output
21. Cooling fan – do not cover
952.900
Advertisement
Table of Contents
Related Manuals for Adastra A120TUD
Summary of Contents for Adastra A120TUD
- Page 1 A120TUD - Mixer amplifier with USB, FM tuner and CD/DVD player 952.900 Features: 1 Mic, 1 Line input Integral USB media player and FM tuner CD/DVD disc player with composite video output 4-16Ω or 100V line output, ...
- Page 2 The fire alarm contacts at rear should be connected to the building’s fire alarm panel which feeds a line level signal when the alarm is triggered, muting the output of the A120TUD to allow the alarm to be heard. ...
- Page 3 selects next track or station MP3/FM switches between USB and FM tuner. CD/DVD Operation: open or close disc drawer selects Play or Pause selects previous track selects next track Specifications: © adastra 2010...
