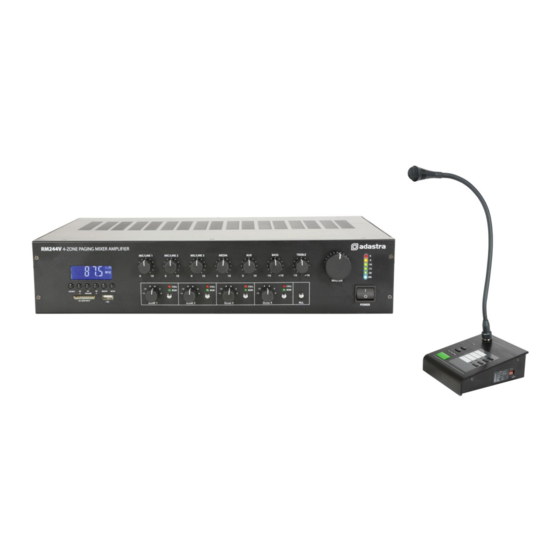

- Page 1 RM244V and CS4 4 Output 100V Mixer-Amp and Call Station Item ref: 953.144UK, 953.146UK User Manual Caution: Please read this manual carefully before operating Damage caused by misuse is not covered by the warranty...
-
Page 2: Safety Notice
HAZARDOUS LIVE and should only be connected by qualified personnel 15. Ensure that the apparatus is connected to a mains socket with a protective EARTH connection 16. Ensure correct operation of the mains switch RM244V & CS4 User Manual... - Page 3 This is a 4 output mixer-amp with built-in media player + Bluetooth® and individual level and mute control for each output. Up to 2 CS4 call stations can be used with the RM244V to create a flexible 4-zone paging system. Please read this manual fully and follow the instructions to achieve the best results with your new purchase and to avoid damage through misuse.
-
Page 4: Front Panel
Channel 3 MIC/LINE + PHANTOM switches SPEAKER OUTPUT modular screw terminals Channel 3 input XLR/jack 24V MUTE modular screw terminals Channel 2 MIC/LINE + PHANTOM switches CS4 CALL STATION connectors 2 x RJ45 Channel 2 input XLR/jack RM244V & CS4 User Manual... -
Page 5: Connection And Setup
(including the internal media player) but is not affected by the MASTER volume control. The RM244V also has RCA connectors for PRE OUT and AMP IN, which can be used as Send and Return in a series loop for connecting audio processors or as Mix output and Slave input separately. -
Page 6: Speaker Outputs
Connecting a CS4 call station The CS4 call station is a bespoke optional addition to the RM244V system and up to 2 of these can be connected to a single amplifier by RJ45 with CAT5 network cable. This is not a standard LAN connection and should only be connected directly to the RM244V. -
Page 7: Operation
Repeat this process for any other microphones or line inputs connected to the RM244V. Note: If a line input is not connected to the RM244V, the initial test can be made using the built-in media player from USB/SD, FM tuner or Bluetooth. See section below for instructions. -
Page 8: Media Player
Media player The RM244V is fitted with a built-in media player, which allows playback of music or audio messages stored as standard compressed audio files on either USB pen drive or SD card. The media player also has an FM radio tuner function and Bluetooth receiver as described below. - Page 9 Holding down the Previous or Next buttons will also adjust the volume of the player. Bluetooth range is between 5m and 10m. It is necessary to stay within this distance of the RM244V in order to maintain the Bluetooth connection.
-
Page 10: Chime Function
CS4 base unit. Next to these is a level control (51) for a local Aux input, which allows connection of a stereo line input (e.g. smart phone or laptop) to a 3.5mm jack on the left side (50). RM244V & CS4 User Manual... - Page 11 Bluetooth version Fire alarm contacts 24V screw terminals THD +N <2% @ 1kHz (rated power) Protection Short circuit, overload, overheat Speaker outputs 4 x 100V (modular terminal block) Dimensions 430 x 315 x 89mm Weight 10.4kg RM244V & CS4 User Manual...
-
Page 12: Troubleshooting
Check that “adastra” is the connected device Bluetooth cannot connect If there are more than one “adastra” devices, check each in turn If one of many “adastra” devices, rename it on the sending device Ensure that volume controls are not turned down on sending device...
