Total Gym 5113-02 Quick Start Manual

ACCESSORIES | ENCOMPASS MODELS

SLIDE DISTANCE REGULATOR

One long strap with a folded loop sewn
offset from the middle

INSTALLING LONG STRAP TO GLIDEBOARD

TO BEGIN INSTALLATION: Remove the center pulley snap link
from the glideboard ring and leave unattached from unit for
now. STEPS 1 AND 2. Insert the sewn center loop of the long
1 2
TotalGym.com | 858 586 6080
© 2017 Total Gym Global Corp. All rights reserved. 5113-02
Two identical buckle loops
strap through the glideboard ring six or more inches.
STEP 3. Open the sewn loop in the strap and (STEP 4) insert
both straps all the way through the sewn loop.
3 4

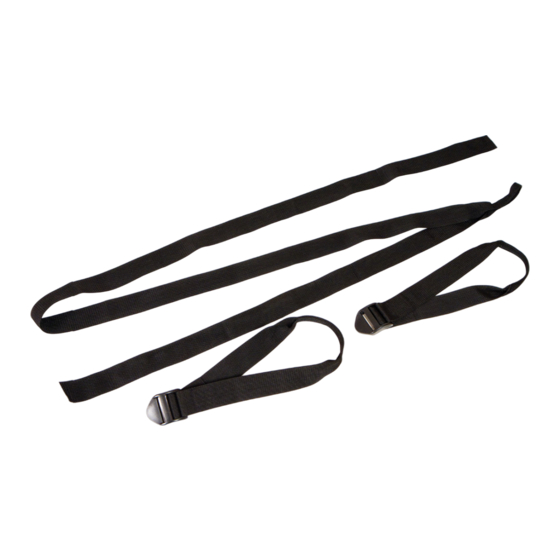

PARTS: One long strap, two identical buckle loops
ACCESSORY IN USE
STEPS 5 AND 6. Pull both straps until the loop is taut on the
glideboard ring and there are no kinks in the sewn loop.
CONTINUED ON REVERSE SIDE.
5 6
