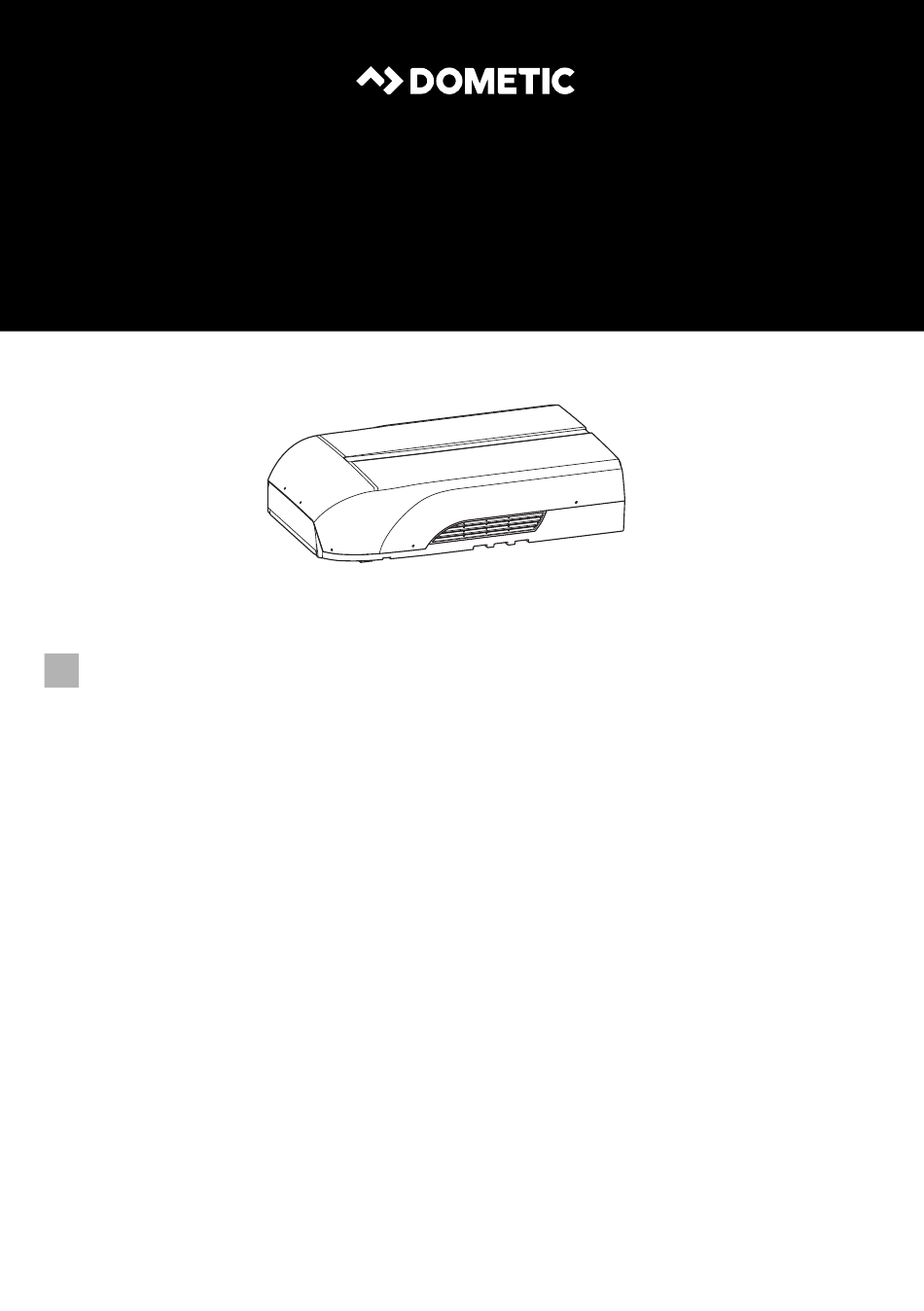

- Page 1 CLIMATE CONTROL HARRIER Harrier Lite HL36H401RI, HL36H401RIY Harrier Plus HP36H401RI, HP36H401RIY Air conditioning roof unit Operating manual...
- Page 2 © 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.
-
Page 3: Table Of Contents
If you pass on the product to another person, hand over this instruction manual along with it. You find the installation manual online at: “dometic.com/manuals”. The instructions in the installation manual are intended for qualified personnel at workshops who are familiar with the guidelines and safety precautions to be applied. -
Page 4: Explanation Of Symbols
Explanation of symbols Harrier series Setting the timer .........17 7.10 Activating the sleep function . -
Page 5: General Safety
Harrier series Safety instructions In particular, the manufacturer will not be liable for any consequential damage, especially consequential damage caused by failure of the roof air conditioner. General safety WARNING! • Electrical devices are not toys. The appliance is not to be used by persons (including chil- dren) with reduced physical, sensory or mental capabili- ties, or lack of experience and knowledge, unless they are under supervision or have been given instruction. -
Page 6: Operating The Device Safely
Target group for this manual Harrier series • Make sure no combustible objects are stored or installed near the air outlet. A distance of at least 50 cm must be kept. • Do not reach into air outlets or insert any foreign objects in the roof air conditioner. -
Page 7: Intended Use
Harrier series Intended use Intended use The Harrier series roof air conditioner are designed for installation on the roof of a caravan or recreational vehicle to provide reverse cycle heating and cooling. It is intended for vehicles with roofs with a thickness of 30 to 100 mm. The roof air conditioner must be installed so that it is within ±10°... -
Page 8: Control Panel
Technical description Harrier series Control panel The control panel (1) is at the air outlet unit of the roof air conditioner. AUTO Control and display elements (fig. 2): Symbol Explanation Switches the roof air conditioner on or to stand-by mode. + button: Increases the currently displayed value. -
Page 9: Remote Control
Harrier series Technical description Symbol Explanation Enables/disables automatic mode (chapter “Air conditioning modes” on page 11). Enables/disables cooling mode (chapter “Air conditioning modes” on page 11). Enables/disables heating mode (chapter “Air conditioning modes” on page 11). Adjusts the fan speed between Low, Med, High or Auto – showing as 1, 2, 3 or AA on the air outlet unit display for a short time when changed. - Page 10 Technical description Harrier series °F °C ON OFF The following control and display elements are available on the remote control (fig. 3, page 10) : No./ Explanation Button Display Displays the following: • Selected room temperature (target value) in °C or °F •...
-
Page 11: Air Conditioning Modes
Harrier series Technical description No./ Explanation Button Switches between temperature units Celsius (°C) and Fahrenheit (°F) Switches the roof air conditioner on or to stand-by mode. + button: Increases the currently displayed value. – button: Reduces the currently displayed value. Selects the turbo mode. -
Page 12: Additional Functions
Before initial use Harrier series Air conditioning Display Explanation mode message Ventilation The fan operates to circulate air without heating or cooling. Dehumidification Dehumidification removes moisture from the air with- out heating or cooling the inside. The fan speed is Low. -
Page 13: Operating The Roof Air Conditioner
Harrier series Operating the roof air conditioner Set the remote control ➤ Insert the batteries (see chapter “Replacing the remote control batteries” on page 19). ✓ The display shows all symbols for 5 seconds. ✓ The remote control is ready for operation. Operating the roof air conditioner Basic notes on operation The roof air conditioner has three operating modes:... -
Page 14: Using The Remote Control
Operating the roof air conditioner Harrier series Using the remote control AUTO The remote control must be pointed at the IR receiver (1) on the control panel during operation. ➤ Press a button. ✓ The value is transmitted directly to the roof air conditioner. ✓... -
Page 15: Hints For Improved Use
Harrier series Operating the roof air conditioner Hints for improved use The following hints will optimise the performance of your roof air conditioner: • Improve the heat insulation of your vehicle by sealing gaps and hanging reflective blinds or curtains on your windows. •... -
Page 16: Setting The Temperature
Operating the roof air conditioner Harrier series In all modes, except for the “Automatic”( ) mode, the fan speed can be selected manually. Display message Explanation 1, 2, 3 Fan icon will show plus the number 1, 2 or 3 to indicate Low, Med or Hi speeds. -
Page 17: Adjusting The Air Nozzles
Harrier series Operating the roof air conditioner Adjusting the air nozzles The air supply within the vehicle can be regulated by setting the air nozzles. ➤ Turn the slats (1) in the air nozzles independently in the required directions. The air flow can be adjusted along the ceiling or towards the floor. -
Page 18: Activating The Sleep Function
Operating the roof air conditioner Harrier series ✓ The switch-on time is set on the roof air conditioner. The roof air conditioner is switched on with the selected air conditioning mode at the specified time. ✓ The OFF symbol flashes on the display of the remote control. If no OFF time is needed press the button again without changing the hour value. -
Page 19: Operating The Ambient Lights
Harrier series Operating the roof air conditioner 7.11 Operating the ambient lights NOTE button on the remote control is active even if the remote control is switched off. Switching the lights on/off with the control panel ➤ Briefly press the button to switch the lights on or off. -
Page 20: Cleaning The Roof Air Conditioner
Cleaning the roof air conditioner Harrier series Cleaning the roof air conditioner NOTICE! Beware of damage • Do not clean the roof air conditioner with a high-pressure cleaner. Exposure to water can damage the air conditioner. • Do not use sharp or hard objects or cleaning agents for cleaning as these may damage the roof air conditioner. -
Page 21: Maintenance Of The Roof Air Conditioner
Harrier series Maintenance of the roof air conditioner ➤ Clean the housing of the roof air conditioner and the air outlet unit occasionally with a damp cloth. ➤ Clean the remote control with a slightly damp cloth from time to time. We recommend using a cleaning cloth for glasses to clean the display. - Page 22 Maintenance of the roof air conditioner Harrier series Interval Inspection/maintenance Regularly Clean the filter of the air discharge unit: ➤ Insert a flat screwdriver or knife into the handle (1) to pull the filters (2) slightly out. ➤ Remove the filters by hand. ➤...
-
Page 23: Troubleshooting
16 °C. ➤ Contact an authorised service One of the temperature sensors is defective. agent or Dometic. The evaporator fan is damaged. The condenser fan is damaged. ➤ Set the roof air conditioner to Not heating well The roof air conditioner is not set to heating. - Page 24 ➤ Contact an authorised service The fan is defective. agent or Dometic. ➤ Clean the drainage openings Water enters the The condensation water drainage vehicle. openings are clogged up.
-
Page 25: Warranty
Warranty If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 3 year(s) when used as described in the Intended use section of this manual. - Page 26 • Keep noise levels down to reduce noise pollution. For more information on correct dismantling of our products please refer to the recycling handbooks at dometic.com. ➤ Place the packaging material in the appropriate recycling waste bins wherever possible.
-
Page 27: Technical Data
Harrier series Technical data • manufacturing, installing, commissioning, servicing or maintaining equipment regardless of whether it is charged with refrigerant or not • decommissioning or disposing of equipment where refrigerant is present Discharge of refrigerant into the atmosphere is against the law. Severe penalties apply. - Page 28 YOUR LOCAL YOUR LOCAL YOUR LOCAL DEALER SUPPORT SALES OFFICE dometic.com/dealer dometic.com/contact dometic DOMETIC GROUP AB...
