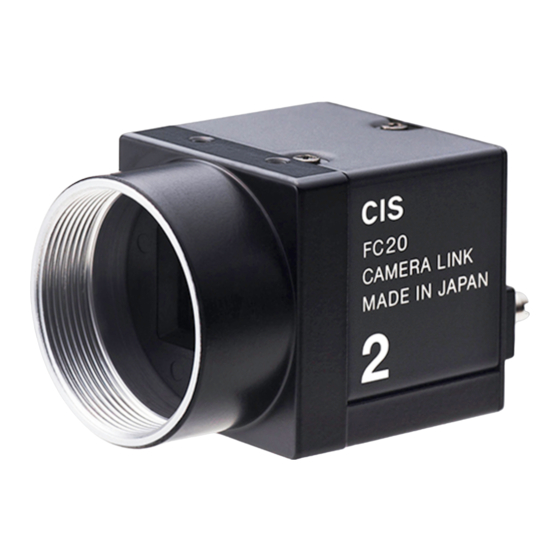

29mm cubic vga high-speed color cmos pocl camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VCC-FC20V49PCL
Rev.900-734-33
English
Camera link I/F
29mm cubic VGA
High-Speed Color CMOS PoCL Camera
VCC-FC20V49PCL
Product Specification
& Operational Manual
CIS Corporation
©2014 CIS Corporation. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCC-FC20V49PCL and is the answer not in the manual?

Questions and answers

Related Manuals for CIS VCC-FC20V49PCL

Summary of Contents for CIS VCC-FC20V49PCL

  • Page 1 VCC-FC20V49PCL Rev.900-734-33 English Camera link I/F 29mm cubic VGA High-Speed Color CMOS PoCL Camera VCC-FC20V49PCL Product Specification & Operational Manual CIS Corporation ©2014 CIS Corporation. All rights reserved.

  • Page 2: Table Of Contents

    Remote Interface Function ........................... 18 Initial Settings ..............................19 CMOS Optical Axis Accuracy ..........................20 Dimensions ................................. 21 Cases for Indemnity (Limited Warranty) ........................ 22 Sensor Pixel Defect .............................. 22 Product Support ..............................22 ©2014 CIS Corporation. All rights reserved.

  • Page 3: Scope Of Application

    VCC-FC20V49PCL Rev.900-734-33 Scope of Application This is to describe VCC-FC20V49PCL, high-speed Color CMOS Camera. All specifications contained herein are subject to change without prior notice. Reproduction in whole or in part is prohibited. Handling Precautions The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical failure or malfunction could result in serious bodily injury or loss of human life.
  • Page 4 The rising time of camera power supply voltage shall be less than +10V, Max 60ms.  Please avoid noises like chattering when rising. Voltage Rising Time [ ms ] In case of abnormal operation, contact the distributor from whom you purchased the product. ©2014 CIS Corporation. All rights reserved.

  • Page 5: Notes On Partial Scan Mode Operation

    For instance, installing the camera to the place under 40 degrees C ambient temperature, or installing the camera to a metalic part, would be effective. Product Outline VCC-FC20V49PCL is an industrial Color high-speed digital video camera module utilizing a global shutter type, CMOS sensor. Interface of VCC-FC20V49PCL complies with power over camera link (Base Configuration) with its resolution 300K pixels.

  • Page 6: Specification

    (18) Gamma 1(Fixed) (19) Shutter speed OFF(1/500),1/750s,1/1000s,1/1500s,1/2000s,1/2500s,1/4000s,1/5000s,1/10000s,1/15000s, variable range 1/20000s,1/25000s,1/30000s,1/40000s,1/50000s ・Fixed Trigger Shutter Mode (20) Trigger shutter mode ・Pulse Width Trigger Shutter Mode (Exposure time is set with the pulse width of trigger signal.) ©2014 CIS Corporation. All rights reserved.
  • Page 7 (100G) for ±X, ±Y, and ±Z, 6 Shock directions. (without package) Operation guaranteed: -5℃～+45℃ Temperature Performance guaranteed: 0℃～+40℃ (23) Operation environment Humidity RH 20～80% with no condensation -25℃ ～ +60℃ Temperature (24) Storage environment RH 20～80% with no condensation Humidity ©2014 CIS Corporation. All rights reserved.

  • Page 8: Camera Output Signal Specification

    Setup Level (5) Video output signal :under ±04h for both vertical and horizontal. Digital 8bit Dark Shading (condition: gain 0dB) 5 seconds shall be waited after turning on power to get proper camera operation. ©2014 CIS Corporation. All rights reserved.

  • Page 9: Cmos Spectral Response (Representative Value)

    Bayer Pattern: GBRG (At full frame scan) Pixels 2047 From Camera (2 Tap Output) 1087 Lines At manual partial scan mode, Bayer Pattern changes per 1 line according to the set vertical starting position value. ©2014 CIS Corporation. All rights reserved.

  • Page 10: Camera Link Port Data Bit Assignment (Base Configuration)

    Not in use DB:bit2 Port C3 Not in use DB:bit3 Port C4 Not in use DB:bit4 Port C5 Not in use DB:bit5 Port C6 Not in use DB:bit6 Port C7 Not in use DB:bit7 ©2014 CIS Corporation. All rights reserved.

  • Page 11: Function Settings

    0～+12dB 0.1dB/step ※Make the data of Address 003 to 004. Manual White Balance B Gain Control 121～255: +12dB 0～120: 0～+12dB 0.1dB/step ※Set the data of address 001 to 003. Manual Gain Control 121～255: +12dB ©2014 CIS Corporation. All rights reserved.
  • Page 12 Address 019 MSB and Address 020 LSB make 11bit in total. ※Address 005 data shalla be 002. 9600bps 19200bps Remote Communication 38400bps Baud Rate Setting 57600bps 115200bps 5～255: 9600bps Data Save Input 083 to save address 000 ～ 031 to EEP-ROM. ©2014 CIS Corporation. All rights reserved.

  • Page 13: External Connector Pin Assignment

    26pins Mini Camera Link Connector 12226-1100-00 PL (SUMITOMO 3M) 7.1. Pin No. Pin No. DC +12V Xclk- Xclk+ SerTC+ SerTC- SerTFG- SerTFG+ CC1- (Trigger IN-) CC1+ (Trigger IN+) CC2+ CC2- CC3- CC3+ CC4+ CC4- DC +12V ©2014 CIS Corporation. All rights reserved.

  • Page 14: Timing Chart

    LVAL Output · · · · · · · 479 480 DVAL Output · · · · · · · FVAL Output 10 H 480 H ※Video output signal delays by 2H from Exposure Time. ©2014 CIS Corporation. All rights reserved.

  • Page 15: Fixed Trigger Shutter Mode

    DVAL Output ・ ・ ・ ・ ・ FVAL Output 480 H 10 H Trigger Input Exposure Time Exposure Time Delay(Fixed) (nHD ×4.06μ s ) 330ns ※Video output signal delays by 2H from Exposure Time. ©2014 CIS Corporation. All rights reserved.

  • Page 16: Pulse Width Trigger Shutter Mode

    479 480 DVAL Output ・ ・ ・ ・ ・ FVAL Output 480 H 10 H Trigger Input Delay(Fixed) Delay(Fixed) 330ns 270ns Exposure Time Exposure Time ※Video output signal delays by 2H from Exposure Time. ©2014 CIS Corporation. All rights reserved.

  • Page 17: Partial Scan Mode

    The set manual shutter lines ≦ Vertical partial scan output lines If the condition above is not met, shutter lines to be set will be the same number as vertical partial scan output lines. ©2014 CIS Corporation. All rights reserved.

  • Page 18: Remote Interface Function

    Note: Once the data was saved into EEPROM, it may not be reset to t he initial settings. C is the code to send the data back from the camera. Note: Do not set code C when sending the data from PC side. ©2014 CIS Corporation. All rights reserved.

  • Page 19: Initial Settings

    0: 0dB Manual Shutter Control 009&010 480: 1/500s Trigger Polarity 0: Positive Input Output Data Selection 0: 8bit Output Data (RAW) Trigger Input Signals 2: OFF Camera Internal H Sync ON/OFF Baud Rate 0:9600bps ©2014 CIS Corporation. All rights reserved.

  • Page 20: Cmos Optical Axis Accuracy

    Inclination of effective pixels, Theta,?, to datum plane shall be ?? ±0.5° The center of effective pixels shall be within f 0.6 to the center of C lens mount (*) Dimensions from datum plane to the center of the lens mount 910-006-01-01 (Unit:mm) ©2014 CIS Corporation. All rights reserved.

  • Page 21: Dimensions

    VCC-FC20V49PCL Rev.900-734-33 Dimensions ©2014 CIS Corporation. All rights reserved.

  • Page 22: Cases For Indemnity (Limited Warranty)

    Sensor Pixel Defect Sensor pixel defects might be noted with time of usage of the products. Cause of the Sensor pixel defects is the characteristic phenomenon of CMOS itself and CIS is exempted from taking any responsibilities for them. Product Support When defects or malfunction of our products occur, and if you would like us to investigate on the cause and repair, please contact your distributors you purchased from to consult and coordinate.
