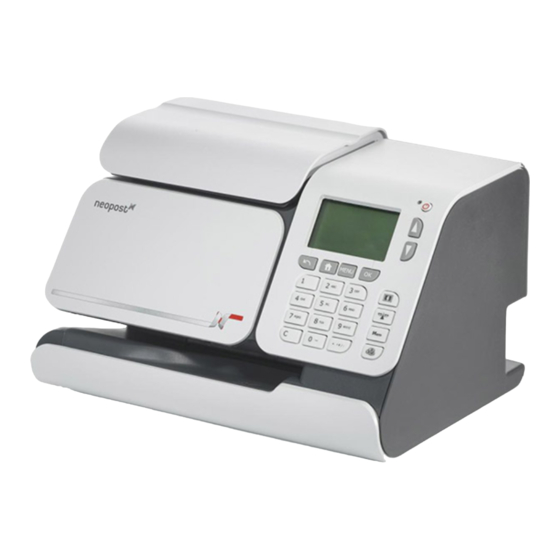

quadient IS-240 Series Replacement Manual

IS-240/280 Series
Weighing Platform Replacement Guide
For more information or if you experience any issues please visit :
kb.quadient.us/IS280
The following steps will guide you through the removal of the weighing platform and installation of a
new weighing platform.
Shipping Package Contents
1 - Weighing Platform
1 - Prepaid Shipping Label
Replacing The Weighing Platform
1
Put the mail machine in
sleep mode by pressing
the sleep wake button
The power indicator light will
be amber.
2
Disconnect the power
cable from the wall
outlet. This will turn off the
IS-240/280 mailing system.
3
Remove the Weighing
Platform cable from
the component cavity.
4 D i s c o n n e c t
Weighing Platform
cable from the port of the
IS-240/280 mailing system.
.
t h e
Weighing Platform Components
5
R e m o v e t h e n e w
Weighing Platform
and shipping label from
the shipping package.
6
Place the old Weighing Platform into the new
shipping package. Seal the package with
packing tape (not provided). Apply the prepaid
label to the package over the old shipping label.
7
Connect the new
Weighing Platform
cable to the port of the IS-
240/280 mailing system.
8
Tu c k t h e
Weighing Platform
cable into the component
cavity.
IS-240/280
Mailing
System
(back view)
Weighing
Platform
n e w
