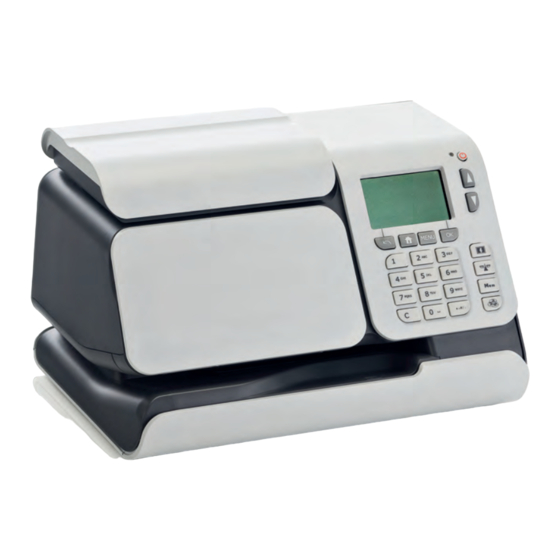

quadient IS-240 Quick Installation Manual

IS-240/IS-280
Quick Installation Guide
Mailing System Components:
mailing system
base
1
Unpack the box, remove the mailing system (a) from the packaging.
4
When you plug the system the power goes on automatically.
8
A C E G I K
B D F H J
Open the door, insert ink cartridge and follow steps to complete alignment test.
(f)
For more help with your installation, please visit :
kb.quadient.com.au/is280_install
meter
2
Insert meter
(b).
5
Installation Process
1 LAN
OK
Select LAN and press 'OK' to test connection type.
9
Amount
Postage Available
$ 100.00
Enter amount:
Headset alignment $ 10
Select letter with arrows
and press «OK»
Press the button to add funds.
weighing platform
LAN cable
Plug in LAN cable
and power cable
6
Installation Process
Do you want to add postage?
Yes No
Non
DO NOT
add money to the meter at this step.
Press NO.
10
Your mailing system is now ready to use. Please turn over for your Quick Start Guide.
power cable
3
2
3
, weighing platform connector
(c)
(e).
7
Installation Process
Press "OK" to activate
mailing system for Online
Services.
Next
Complete the declaration by following the screen.
ink cartridge
1
4
(d - place weighing platform in position)
