Summary of Contents for Ancona WPC630

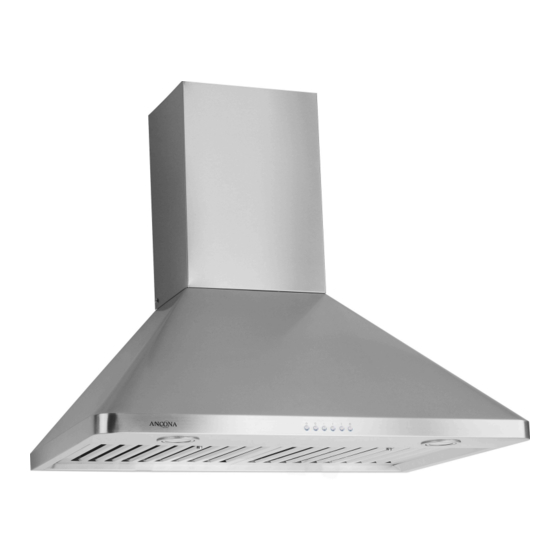

- Page 1 Range Hood WPC630 & WPC636 30" & 36" User Manual & Installation Instructions IMPORTANT SAFETY INSTRUCTIONS Carefully read the important information regarding installation, safety and maintenance. Keep these instructions for future reference.
-
Page 2: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 4: Parts Supplied
Parts supplied: Upper Chimney Upper Chimney Lower Chimney Lower Chimney Range Hood Chimney-mounting Bracket Hood-mounting Bracket Qty: 4 PCS Qty: 2 PCS (30-in models) Qty: 3 PCS (36-in models) Qty: 6 PCS Qty: 4 PCS (30-in models) Qty: 6 PCS (36-in models) Qty: 2 PCS (30-in models) Qty: 3 PCS (36-in models) Qty: 4 PCS... -
Page 5: Venting Requirements
Venting Requirements: Height & Clearance: • Chimney- Vent system must terminate to the outside (roof or side wall). Maximum ceiling clearance mounting 110” at 30” hood mounting • DO NOT terminate the vent system in an at- Bracket height above countertop/ tic or other enclosed area. - Page 6 IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separate- ly) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct.
-
Page 7: Venting Methods
Venting methods : • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 8: Electrical Requirements
Electrical Requirements: IMPORTANT: Observe all governing codes and ordinances. It is the customer’s responsibility: • To contact a qualified electrical installer. If codes permit and a separate ground wire is used, it is recommended that a qualified electrician determine that the ground path is adequate. - Page 9 Preparation: Advanced Preparations: • Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. • Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (120-Volt, 60Hz, AC only) and turn on the range hood.
-
Page 10: Installation
Installation: Installations (refer to Page 4 for parts): 1. Measure the distance between stove top and the bottom of range hood. A distance of 24” to 30” is recommended with a minimum of 30” for gas stove tops. 2. Using references in Height & Clearance on Page 5 and Measurements and Diagrams on Page 16, mark the leveling point of the hood. - Page 11 Installation (Continued): 8. Connect the range hood to a designated standard outlet (120-Volt, Figure 8 Figure 8 60Hz, AC only) or cut off the plug and connect three wires (black, white and green) to house wires and cap with wire connectors. Con- nect according to colors (i.e.
-
Page 12: Range Hood Operations
Range Hood Operations: Control Panel Layout and Buttons Configurations: LED Light LED Speed Indicator Indicators Light Control Speed Control Power Control (On/Off) This range hood is equipped with six electronic controls, oversized powerful centrifugal squirrel cage motor with stainless steel baffle filters and spacers, two bright 3W LED lights. The six electronic buttons control the intensity of the Lights, Speeds (Quiet, Low, Medium and High) and Power (On/Off). - Page 13 Range Hood Operations (Continued): Control Panel Layout and Buttons Configurations: Quiet Medium High Speed Speed Speed Speed LED Light LED Speed Indicator Indicators Light Control Power Control (On/Off) • During this 3-minutes delay, changing speeds will not affect the countdown. Immediate Power-off •...
-
Page 14: Troubleshooting
Troubleshooting 1. If the range hood or LED light does not operate • Check if the range hood has been plugged in, make sure that all power has been turned back ON, fused after installation: not blown and all electrical wiring are properly con- nected. -
Page 15: Specifications
Use and Care Information: Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. - Page 16 Measurements and diagrams: Instal ation Overview: lation Overview: Chimney- Qty: 4 PCS mounting bracket Qty: 6 PCS Upper support frame Qty: 4 PCS Upper chimney Back of the range hood Qty: 4 PCS (For sheet rock only) Hood-mounting bracket Round duct (exhaust) Range hood...
- Page 17 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Overall:...
- Page 18 • All measurements in parenthesis are in millimeter. • All inch measurements are converted from millimeters, thus inch measurements are estimated. Overall without Chiminey:...
- Page 19 Hood-mounting Bracket: Circuit Diagram:...
- Page 20 Range Hood Assembly: Description Description Chimney-Mounting Bracket Control Panel Assembly Upper Standard Chimney Processor Board Baffle Handle Lower Standard Chimney Chimney-Mounting Bracket Electrical Box Cover Hood-Mounting Bracket Electrical Box Base LED Light Transformer Power Cable Safety Screen Electrical Panel Locknut Control Panel Assembly Panel Squirrel Cage Hood Casing...
-
Page 21: Blower Assembly
Blower Assembly: Description Description Motor Locknut Air Chamber Safety Screen Squirrel Cage Electrical Assembly: Description Description Screws (3/16” x 3/8”) Electrical Panel Electrical Box Cover Capacitor Screws (3/16” x 3/8”) Processor Board LED Light Transformer Screws (3/16” x 3/8”) Electrical Box Base... -
Page 22: Maintenance
Maintenance: SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •... - Page 23 THE ANCONA LIMITED WARRANTY This Ancona Range hood product (the “Product”) is warranted by AMS, in the manner fully set forth below, to be free from defects in material and workmanship and to operate properly in accordance with specifications, provided that it is used under the normal operating conditions and for ordinary home use and service in Canada and the USA.
