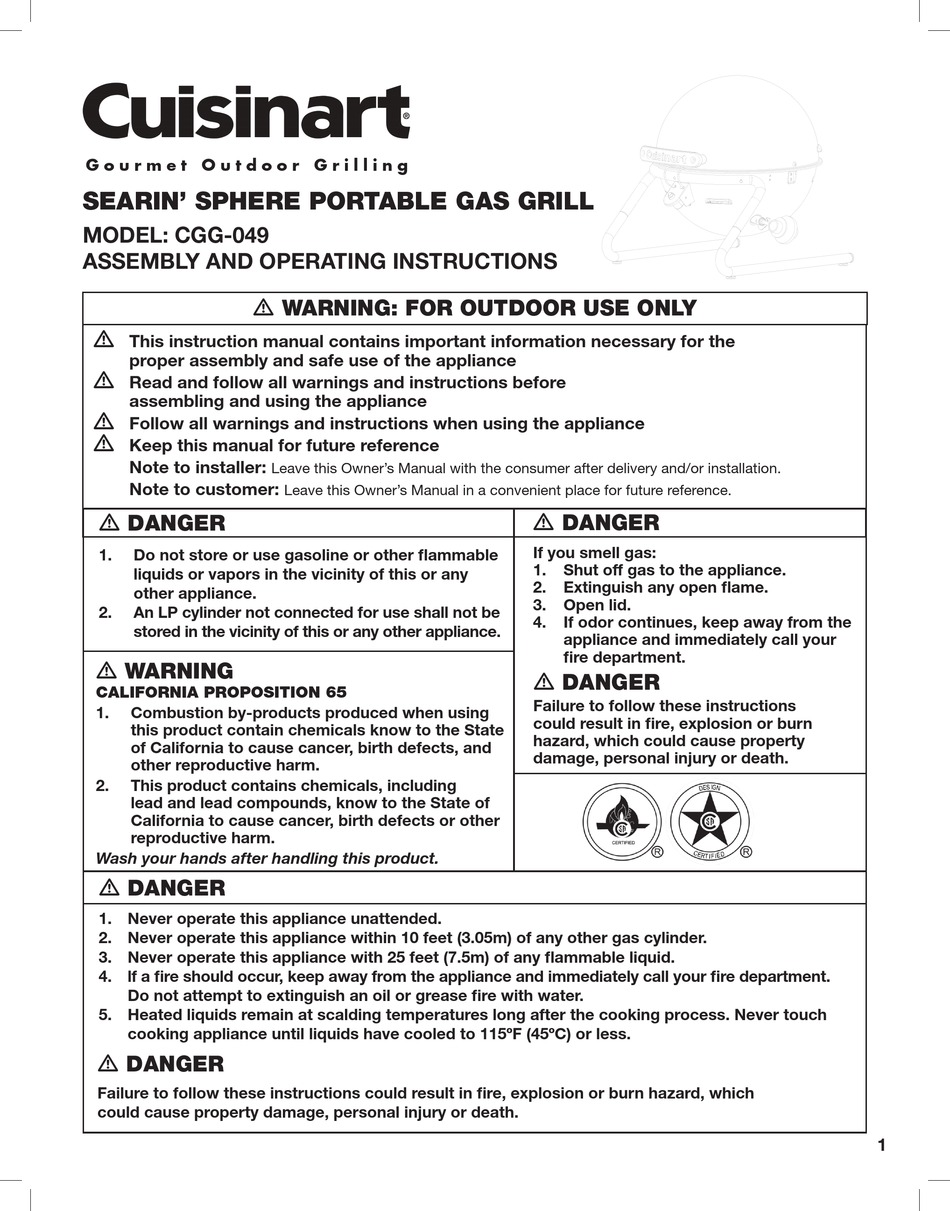

G o u r m e t O u t d o o r G r i l l i n g
Searin' Sphere portable GaS Grill
MODEL: CGG-049
ASSEMBLY AND OPERATING INSTRUCTIONS
m WarninG: For oUtDoor USe onlY
m
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance
m
Read and follow all warnings and instructions before
assembling and using the appliance
m
Follow all warnings and instructions when using the appliance
m
Keep this manual for future reference
Note to installer:
Note to customer:
m DanGer
1.
Do not store or use gasoline or other flammable
liquids or vapors in the vicinity of this or any
other appliance.
2.
An LP cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
m WarninG
CaliFornia propoSition 65
1.
Combustion by-products produced when using
this product contain chemicals know to the State
of California to cause cancer, birth defects, and
other reproductive harm.
2.
This product contains chemicals, including
lead and lead compounds, know to the State of
California to cause cancer, birth defects or other
reproductive harm.
Wash your hands after handling this product.
m DanGer
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet (3.05m) of any other gas cylinder.
3. Never operate this appliance with 25 feet (7.5m) of any flammable liquid.
4. lf a fire should occur, keep away from the appliance and immediately call your fire department.
Do not attempt to extinguish an oil or grease fire with water.
5. Heated liquids remain at scalding temperatures long after the cooking process. Never touch
cooking appliance until liquids have cooled to 115ºF (45ºC) or less.
m DanGer
Failure to follow these instructions could result in fire, explosion or burn hazard, which
could cause property damage, personal injury or death.
Leave this Owner's Manual with the consumer after delivery and/or installation.
Leave this Owner's Manual in a convenient place for future reference.
m DanGer
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open lid.
4.
If odor continues, keep away from the
appliance and immediately call your
fire department.
m DanGer
Failure to follow these instructions
could result in fire, explosion or burn
hazard, which could cause property
damage, personal injury or death.
1
