Cuisinart SMK0036AS Owner's Manual & Operating Instructions

Cuisinart SMK0036AS Owner's Manual & Operating Instructions

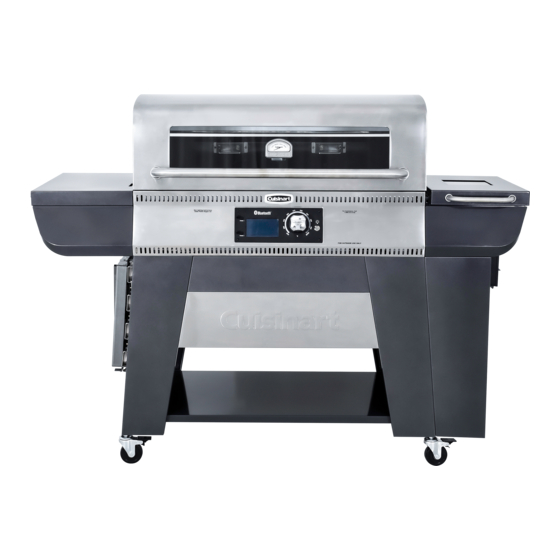

Woodcreek 4-in-1 pellet grill
Hide thumbs Also See for SMK0036AS:

Advertisement

Woodcreek 4-in-1 Pellet Grill
OWNER'S MANUAL
OPERATING IN STRUC TIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
Model SMK0036AS / SMK0036ASO
WARNING
NOTICE TO INSTALLER:
PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION
AND USE OF THIS PELLET FUEL-BURNING APPLIANCE.
LEAVE THESE INSTRUCTIONS
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. CONTACT
WITH THE GRILL OWNER
LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS
FOR FUTURE REFERENCE .
AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.
SAVE THESE INSTRUCTIONS.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SMK0036AS and is the answer not in the manual?

Questions and answers

Dustin
June 3, 2025

Why does my grill keep feeding pellets without stopping. It is starting to burn the pellets but, smothers itself with pellets.

Subscribe to Our Youtube Channel

Summary of Contents for Cuisinart SMK0036AS

  • Page 1 Woodcreek 4-in-1 Pellet Grill OWNER’S MANUAL OPERATING IN STRUC TIONS SAVE THIS MANUAL FOR FUTURE REFERENCE Model SMK0036AS / SMK0036ASO WARNING NOTICE TO INSTALLER: PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET FUEL-BURNING APPLIANCE. LEAVE THESE INSTRUCTIONS FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
  • Page 2 IMPORTANT SAFETY WARNINGS WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE. THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL & SMOKER. WHEN YOU SEE THE SAFETY ALERT SYMBOL, PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS! READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING AND OPERATING YOUR GRILL &...
  • Page 3: Table Of Contents

    TABLE OF CONTENTS: General Warnings ..........3-4 Operating the Grill .
  • Page 4: General Warnings

    GENERAL WARNINGS: WARNING When using electric appliances, basic safety precautions should always be followed including the following: • Operate only per manufacturers instructions. • Keep all combustible materials at least 60 inches (152.4 cm) away from the grill at all times. Do not use this grill under any overhang or near any combustible structures.
  • Page 5 • This product is not designed for tabletop use. Do not set this product on a tabletop. • Outdoor extension cords must be used with outdoor use products and are marked with suffix “W” and with the statement “Suitable for Use with Outdoor Appliances.” •...
  • Page 6: Operating The Grill

    USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR PELLET GRILL & SMOKER. FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS MANUAL COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE. SAVE THIS MANUAL FOR FUTURE REFERENCE. OPERATING THE GRILL: WARNING Read and follow all warnings and instructions contained in the preceding sections of this manual.
  • Page 7 Step 2 Make sure temperature control knob is “OFF” . Plug power Control Panel cord into a GFI (grounded) outdoor electrical outlet. When connecting, fi rst connect plug to the outdoor cooking gas appliance then plug appliance into the outlet; Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance;...
  • Page 8 Follow these steps If the grill does not ignite or if the fi re in the fi re pot goes out while cooking: Step 1 Turn the temperature control knob to “OFF” and unplug. Open cooking chamber lid and remove all food, cooking grates, grease tray and heat distribution plate. CAUTION: Some parts may contain sharp edges.
  • Page 9 OPERATING TIPS: • Your Pellet Grill should never be moved while it is hot. If you are transporting your grill in a vehicle after cooking on it, make sure the fi re is completely out and the grill is cold before placing it in any vehicle. NEVER put water into the fi re pot.
  • Page 10 • Griddle: Place Griddle on top of cooking grates with the grease reservoir toward the back of the grill. Push the Griddle to the back of the grill. It is best to locate the Griddle near the middle of the grill. 2.
  • Page 11 COOK MODE: • The temperature dial can be changed at any time to increase or decrease the cooking temperature of the grill. • The 200°F to 300°F temperature settings are for slow cooking/smoking. • The 325°F to 450°F temperature settings are for grilling. •...
  • Page 12: Proper Care And Maintenance

    PROPER CARE & MAINTENANCE: • Remove wood pellets from hopper if grill will not be used for a long period of time. Wood pellets can become soggy due to moisture/humidity and can cause the auger to bind up or not push pellets to burn chamber.
  • Page 13: Transporting And Storage

    TRANSPORTING AND STORAGE: WARNING • Never move a grill when it is hot or when objects are on the cooking surfaces. • Never store fl ammable liquids or spray canisters under or near the grill. • DO NOT extinguish grease fi res using water. BEFORE STORING YOUR GRILL: •...
  • Page 14: Trouble Shooting

    Temperature 1. Temperature fl uctuations are normal for pellet grills. Any signifi cant fl uctuations can be caused by wind, air temperature, improper use, or lack of grill maintenance. fl uctuations For more information, please visit us at www.cuisinart.com...
  • Page 15: Wiring Diagram

    WIRING DIAGRAM: THERMOCOUPLE POWER CORD BLACK WHITE DC 12V3A Power Supply and Control POWER SUPPLY Wire FUSE HOLER 5 Amp Fuse PURPLE WHITE FIRE POT WHITE IGNITOR AUGER MOTOR ORANGE WHITE BLOWER FAN BLUE WHITE GRAY GREEN YELLOW BLACK DISPLAY PANEL BLACK PELLET SENSOR YELLOW...
  • Page 16 IC: 25523-0356 FCC ID: 2AURUJINHENG The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause any undesired operation.
  • Page 17 For replacement parts, call our customer service department at 1-866-212-3150 from 9:00am to 5:00pm Eastern time, Monday through Friday for assistance. ©2019 The Boltz Group LLC Owner’s Manual for Models OM0036AS/ASO Carrollton, Texas 75006 U.S.A. 1019 SMK0036AS / SMK0036ASO...
