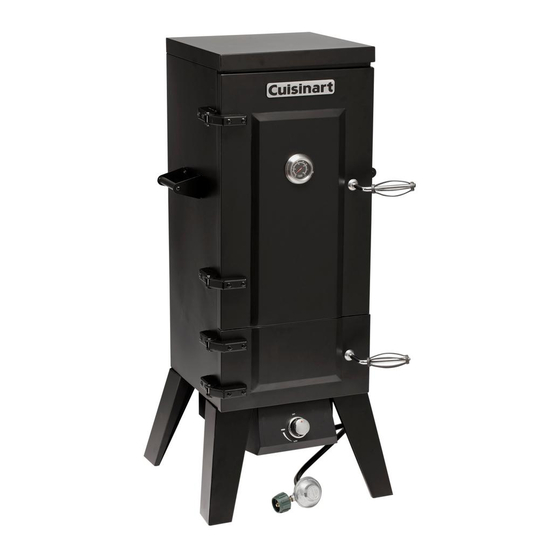

Vertical 36" propane smoker

Advertisement

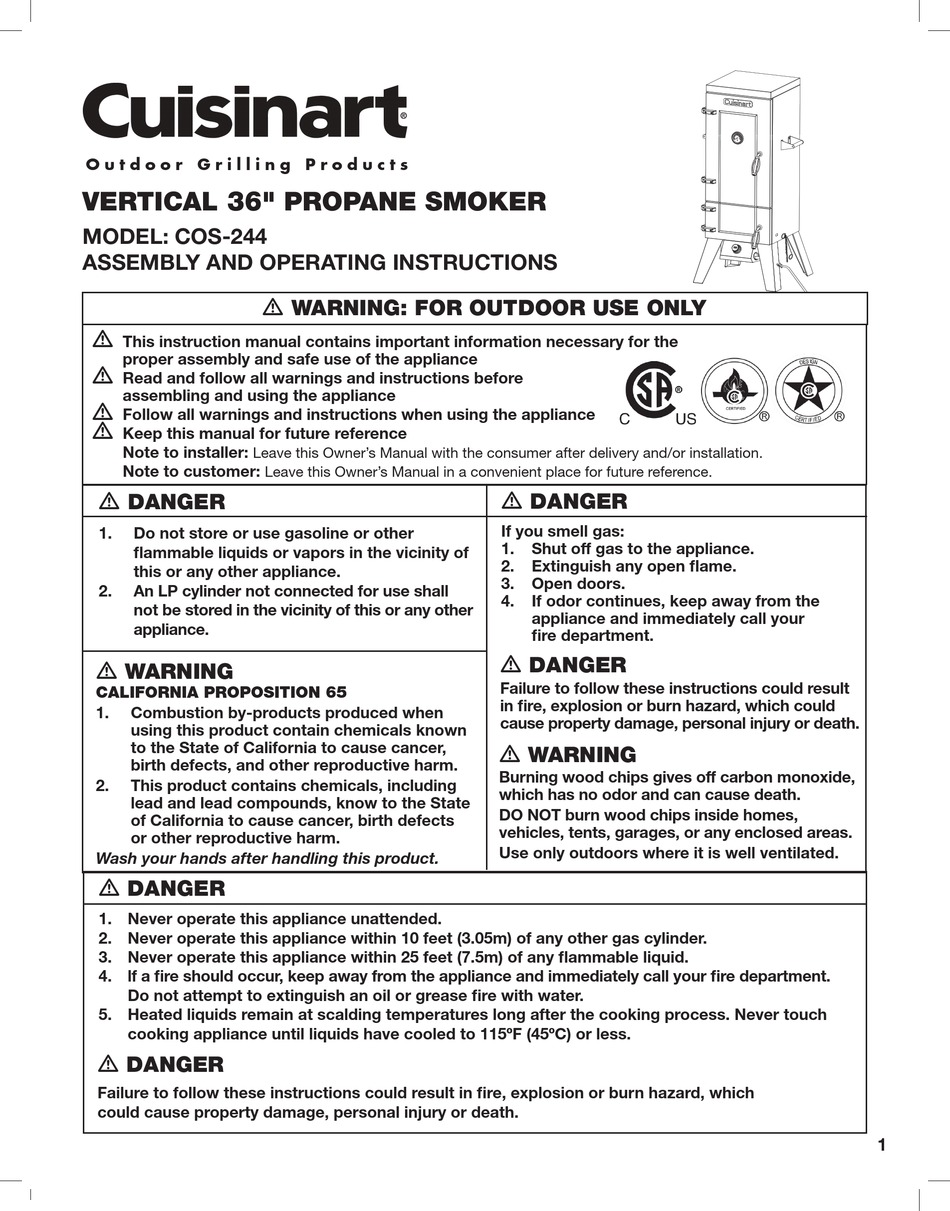

O u t d o o r G r i l l i n g P r o d u c t s
Vertical 36" ProPane Smoker
MODEL: COS-244
ASSEMBLY AND OPERATING INSTRUCTIONS
m
This instruction manual contains important information necessary for the
proper assembly and safe use of the appliance
m
Read and follow all warnings and instructions before
assembling and using the appliance
m
Follow all warnings and instructions when using the appliance
m
Keep this manual for future reference
Note to installer:
Leave this Owner's Manual with the consumer after delivery and/or installation.
Note to customer:
m DanGer
1.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2.
An LP cylinder not connected for use shall
not be stored in the vicinity of this or any other
appliance.
m WarninG
caliFornia ProPoSition 65
1.
Combustion by-products produced when
using this product contain chemicals known
to the State of California to cause cancer,
birth defects, and other reproductive harm.
2.
This product contains chemicals, including
lead and lead compounds, know to the State
of California to cause cancer, birth defects
or other reproductive harm.
Wash your hands after handling this product.
m DanGer
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet (3.05m) of any other gas cylinder.
3. Never operate this appliance within 25 feet (7.5m) of any flammable liquid.
4. lf a fire should occur, keep away from the appliance and immediately call your fire department.
Do not attempt to extinguish an oil or grease fire with water.
5. Heated liquids remain at scalding temperatures long after the cooking process. Never touch
cooking appliance until liquids have cooled to 115ºF (45ºC) or less.
m DanGer
Failure to follow these instructions could result in fire, explosion or burn hazard, which
could cause property damage, personal injury or death.
m WarninG: For oUtDoor USe onlY
Leave this Owner's Manual in a convenient place for future reference.
m DanGer
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open doors.
4.
If odor continues, keep away from the
appliance and immediately call your
fire department.
m DanGer
Failure to follow these instructions could result
in fire, explosion or burn hazard, which could
cause property damage, personal injury or death.
m WarninG
Burning wood chips gives off carbon monoxide,
which has no odor and can cause death.
DO NOT burn wood chips inside homes,
vehicles, tents, garages, or any enclosed areas.
Use only outdoors where it is well ventilated.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COS-244 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cuisinart COS-244

  • Page 1 O u t d o o r G r i l l i n g P r o d u c t s Vertical 36" ProPane Smoker MODEL: COS-244 ASSEMBLY AND OPERATING INSTRUCTIONS m WarninG: For oUtDoor USe onlY This instruction manual contains important information necessary for the...
  • Page 2: Table Of Contents

    This appliance is not intended for commercial use. The pressure regulator supplied with the Cuisinart Vertical 36” Propane Smoker must be used. PROPOSITION 65 WARNING: Handling the brass material on this product exposes you to lead, a chemical known to the state of California to cause cancer, birth defects or other reproductive harm.
  • Page 3: Illustrated Parts List

    2. illustrated Parts list 3. exploded View A Smoker Body 1 pc B Front Left/Back Right Legs 2 pcs C Front Right/Back Left Legs 2 pcs D Burner Box Assembly 1 pc E Air Vent 1 pc F Upper Door 1 pc G Lower Door 1 pc...
  • Page 4: Assembly Instructions

    4. assembly instructions Remove all the contents from packaging, and ensure all parts are present before attempting Step 4: to assemble. (See Parts List on page 4) Use screws (DD), nuts (FF) and Step 1: washers (GG) to connect han- dles to smoker.
  • Page 5 4. assembly instructions (cont.) Step 6: Step 9: Use screws (AA) and nuts (CC) to Insert cooking rack supports into smoker box holes and angle Repeat step 5 for bottom door. downward until they sit flat (see zoomed in image to the right). Insert four cooking rack supports per side.
  • Page 6: Operating Your Smoker

    4. assembly instructions (cont.) 5. operating Your Smoker 5.1 Select a Proper Location Once you have assembled your new smoker, find a suitable location for use. Note: The use and installation of this product must conform to local codes. In absence of local codes, use the National Fuel Gas Code: ANSI Z223.1/NFPA54, Storage and Handling of Liquified Petroleum Gases, ANSI.NFPA 58 or Natural Gas and Propane Installation Code, CSA B149.1;...
  • Page 7: Checking For Gas Leak

    5. operating Your Smoker (cont.) WarninG! 4. If ignition does not occur in 3-5 seconds, turn the control knob “OFF”. Wait 5 minutes before attempting to re-light the smoker. If the smoker fails to ignite after the third attempt, call customer service at 1-866-994-6390 for assis- Never attempt to use damaged or obstructed equipment.
  • Page 8: Care And Maintenance

    6. care and maintenance 7. FaQ and troubleshooting 6.1 Care Frequently Asked Questions Regular care of your smoker will help keep it operating properly. All maintenance should be done only when the Should I use wood chips or wood chunks? smoker is cool and with the fuel supply turned off.
  • Page 9: Warranty Program And Replacement Parts

    For troubleshooting, FAQs or customer service, visit us at www.cuisinartgrilling.com or contact us by phone at 1-866-994-6390 or email at grilling@thefulhamgroup.com To order replacement parts or additional Cuisinart Grilling products, visit us at www.cuisinart.com or call 1-800-211-9604 Model# COS-244...
