Mains electricity
230 V/50 Hz
Standby power
0.3 W
External operating temperature
-25 to +35 °C
Dimensions
46x46x18 mm
Type of switching
Relay, Micro gap (μ)
Protection
Overtemperature software
Zero crossing switching (breaker protection)
Radio
2.4 GHz mesh
Bluetooth
®
<10 dBm
Radio range
Approx. 10 m indoors
The Plejd mesh technology extends the range by
allowing the units to communicate with each other.
RISK OF INJURY TO PERSON OR PROPERTY
All work on the appliance must be
carried out by an authorized electrician.
National laws and regulations
must be followed.
Plejd AB
Krokslätts Fabriker 27A
431 37 Mölndal, Sweden
Compliant to standards
Hereby, Plejd AB declares that the radio
equipment type REL-01-2P is in compliance
with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
internet address: plejd.com/compliance
EN

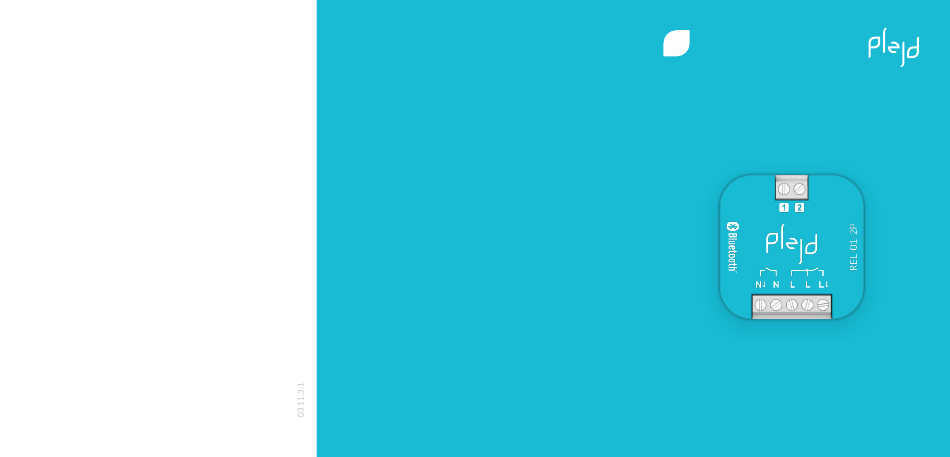

R E L- 0 1 - 2 P
INSTALLATION MANUAL
Further information can be found
in the Plejd app or at plejd.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Plejd REL-01-2P
Summary of Contents for Plejd REL-01-2P
- Page 1 Approx. 10 m indoors equipment type REL-01-2P is in compliance Further information can be found The Plejd mesh technology extends the range by with Directive 2014/53/EU. allowing the units to communicate with each other. in the Plejd app or at plejd.com...
- Page 2 (MNT-01, not included) on the wall or DIN rail. After supplying power to the unit by following REL-01-2P has a relay with a breaker capacity of 16 A the wiring diagram, use the app to complete in resistive loads. Due to heat build-up, the maximum the installation.
