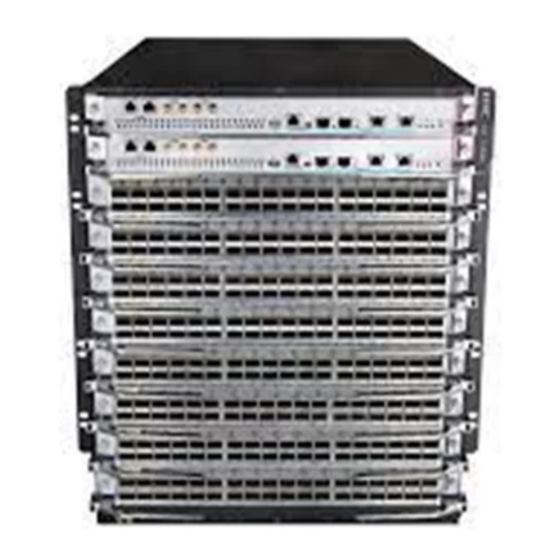

H3C S12508CR Installation, Quick Start
Switch router
Hide thumbs
Also See for S12508CR:
- Preparing for installation (9 pages) ,
- Installation manual (97 pages) ,
- Hardware reference manual (69 pages)
Related Manuals for H3C S12508CR
Summary of Contents for H3C S12508CR
- Page 1 H3C S12508CR Switch Router Installation Quick Start New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 5PW101-20200701...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
Contents 1 Preparing for installation ············································································· 1 ESD prevention ·················································································································································· 1 Examining the installation site ···························································································································· 1 Installation tools and equipment ························································································································ 1 2 Installing the device ···················································································· 2 Device dimensions ············································································································································· 2 Rack requirements ············································································································································· 2 Slide rail requirements ······································································································································· 3 Installing cage nuts for attaching mounting brackets ·························································································... -
Page 4: Preparing For Installation
EMI, grounding, power supply, ventilation, and space requirements. As a best practice, reserve a minimum of 1.2 m (3.94 ft) of clearance between the device and walls or other devices. For more information, see H3C S12500CR Switch Router Series Installation Guide. Installation tools and equipment No installation tools and equipment are provided with the device. -
Page 5: Installing The Device
Installing the device Device dimensions Figure 2-1 Device dimensions (1) Top hood (2) Mounting bracket Rack requirements Table 2-1 Rack requirements Device dimensions Rack requirements • Height—842 mm (33.15 in) (19 RU). • Width—442 mm (17.40 in). • A minimum of 1.1 m (3.61 ft) in depth •... -
Page 6: Slide Rail Requirements
(24.80 in) to 900 mm (35.43 in) and occupy 1U rack space. For information about installing the LSXM1BSR slide rails, see H3C LSXM1BSR 1U Bottom-Support Rails Installation Guide. Follow these guidelines for attaching the LSXM1BSR slide rails to the rack: •... -
Page 7: Mounting The Device In A Rack
Figure 2-2 Installing cage nuts Mounting the device in a rack WARNING! To avoid device damage or bodily injury, follow these guidelines to lift and move the device: • Use the chassis handles, rather than the handles of the components (fan trays, power supplies, and modules) as well as the chassis air vents, to move the chassis. -
Page 8: Grounding The Device
WARNING! After you place the device on the slide rails installed on the rack, do not leave go of your hands immediately because this might tip the device, damaging the device or even causing bodily injury. Use M6 screws provided with the device to secure the mounting brackets to the rack posts. As a best practice, use a torque of 30 kgf-cm (2.94 Nm) to fasten the M6 screws. - Page 9 IMPORTANT: The grounding cable provided with the device is NEBS compliant. Connect the two-hole grounding lug of the grounding cable to the chassis and the ring terminal to a grounding strip. To ground the device: Unpack the grounding cable. Use a screwdriver to remove the grounding screws (M6 screws) from the grounding point at the rear of the chassis.
-
Page 10: Installing Removable Components
MPUs), environment management modules, interface modules, fabric modules, fan trays, power trays, and power supplies. For the compatibility matrix between these modules and the device models, see H3C S12500CR Switch Router Series Hardware Reference. WARNING! Long-time exposure to strong air flow might cause discomfort. As a best practice, do not stand close to the air outlet vents while the device is operating. - Page 11 The cable management brackets use the same procedure for installation at the left side and right side of the front panel. The following procedure installs a cable management bracket at the left side. To install a cable management bracket: Identify the installation position for the cable management bracket on the mounting bracket. The LA, LB, RA, and RB marks on the mounting brackets indicate the types of cable management brackets to be installed.
-
Page 12: Installing Seus
Installing SEUs CAUTION: • If you are not to install an SEU in an SEU slot, keep the filler panel in the slot. • When you install an SEU, avoid damaging the connectors on the SEU. • When you install or remove the filler panel while the device is operating, hold both sides of the filler panel with two hands. -
Page 13: (Optional.) Replace Environment Management Modules
(Optional.) Replace environment management modules CAUTION: • Before replace an environment management module, remove cables from the module. • Do not use excessive force during the replacement procedure. The device comes with two environment management modules installed. To replace an environment management module: As shown in Figure 3-4, press the latch rightwards to release the ejector lever. -
Page 14: Installing Interface Modules
To install an S12500R interface module on the device, first install an interface module adapter in the target interface module slot. For more information about installing an interface module adapter, see H3C S12500CR LSXM1IMAA Interface Module Adapter User Manual. -
Page 15: Installing Fabric Modules
Figure 3-6 Installing an interface module Installing fabric modules The device comes with all fabric module slots empty. Purchase fabric modules and filler panels for the device as required. Installing fabric modules Follow these restrictions and guidelines when you install fabric modules: •... - Page 16 • Before installing a fabric module, make sure it is compatible with the interface modules installed on the device. For example, type K fabric modules can be used only with Type K interface modules. Type K interface modules have a K in their module identifiers (for example, LSXM1CDQ36KBR1) and Type K fabric modules have a character string of SFK in their module identifiers (for example, LSXM1SFK08GR1).
-
Page 17: Installing A Filler Panel In A Fabric Module Slot
Figure 3-8 Installing a fabric module Installing a filler panel in a fabric module slot Loosen the captive screws on the ejector levers and rotate outward the ejector levers. Orient the filler panel with the side marked "UP" up. Hold the filler panel front panel near the ejector levers with one hand and support its bottom with the other. -
Page 18: Removing A Filler Panel From A Fabric Module Slot
Figure 3-9 Installing a filler panel in a fabric module slot Removing a filler panel from a fabric module slot As shown by callout 1 in Figure 3-10, loosen the captive screws on the ejector levers. As shown by callout 2 in Figure 3-10, rotate outward the ejector levers. -
Page 19: Installing Fan Trays
Figure 3-10 Removing the filler panel from a fabric module slot Installing fan trays Follow these restrictions and guidelines when you install a fan tray: • Fan trays cover fabric module slots. Before installing a fan tray, install fabric modules or filler panels in the fabric module slots that the fan tray will cover. -
Page 20: Installing A Fan Tray
Installing a fan tray The following procedure installs a fan tray in the FAN2 slot. To install a fan tray: As shown by callout 1 in Figure 3-11, pivot up the fan tray handles to make them perpendicular to the fan tray. As shown by callout 2 in Figure 3-11, hold the fan tray handles and slide the fan tray along the... -
Page 21: Installing Power Supplies And Power Trays
As shown by callout 1 in Figure 3-12, loosen the M3 screws on the fan tray filler panel. As shown by callout 2 in Figure 3-12, put your fingers into the holes of the filler panel, and then pull the filler panel out. Keep the removed filler panel secure for future use. -
Page 22: Installing A Power Supply
Figure 3-13 Power supplies and power input ends PWR 6 PWR 5 PWR 4 PWR 3 PWR 2 PWR 1 PWR 6 PWR 5 PWR 4 PWR 3 PWR 2 PWR 1 PWR 6 PWR 5 PWR 4 PWR 3 PWR 2 PWR 1 PWR 6... -
Page 23: Connecting Power Cords
Figure 3-15 Installing a power supply Connecting power cords WARNING! • Before you connect a power cord, turn off the circuit breaker at the power input end of the power cord and the power switch on the device. • Make sure each power cord has a separate circuit breaker. Before connecting a power cord, remove the protective plate over the power input area. -
Page 24: (Optional) Installing Power Trays
Connect the other end of the AC power cord to an AC power source. Figure 3-17 Connecting an AC power cord Connecting a DC power cord Remove the cover on the power tray, as shown in Figure 3-18. Keep the removed cover secure and reinstall it after connecting the power cord. Figure 3-18 Removing the cover from the power tray Remove the screws on the terminal blocks. - Page 25 As shown in Figure 3-20 Figure 3-21, remove the front and rear filler panels from the target power tray slot. As shown by callout 1 in Figure 3-22, hold both sides of the power tray with two hands, and insert the power tray into the slot along the guide rails slowly and steadily. As shown by callout 2 in Figure 3-22, close the ejector levers when the ejector levers touch the...
-
Page 26: Installing The Air Filter In The Top Hood
Figure 3-22 Installing a power tray Installing the air filter in the top hood Unpack the air filter. Position the air filter over the top hood, and then push the air filter until it is seated into the top hood. Figure 3-23 Installing the air filter in the top hood Installing transceiver modules CAUTION:... -
Page 27: Installing A Transceiver Module
Figure 3-24 Installing a transceiver module NOTE: The types of transceiver modules supported by the device might change over time. For information about installing a transceiver module, see H3C Transceiver Modules and Network Cables Installation Guide. Connecting a cable CAUTION: When you connect a cable, make sure the bend radius of the cable is no less than eight times the cable diameter. -
Page 28: Cabling Recommendations
Cabling recommendations The cable management brackets are installed at the two sides of the chassis front panel. As a best practice, route network cables from the left and right sides, as shown in Figure 4-1. Figure 4-1 Routing cables... -
Page 29: Accessing The Device
Accessing the device The first time you access the device you must use a console cable to connect a console terminal, for example, a PC, to the console port on the device. Connecting the console cable IMPORTANT: • Identify the mark on the console port and make sure you are connecting to the correct port. •... -
Page 30: Viewing Device Startup Information
The cooling system is working, and you can hear fan rotating noise and feel air being blown out. • The LEDs on the SEUs show that the system is operating correctly. For more information about LEDs, see H3C S12500CR Switch Router Series Hardware Reference.
