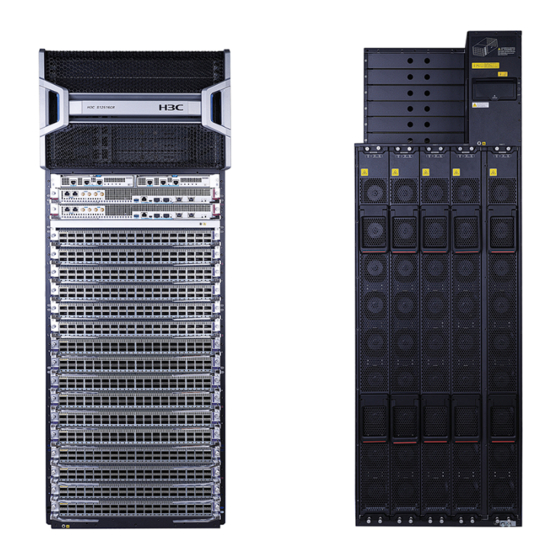

H3C S12516CR Installation, Quick Start
Switch router
Hide thumbs
Also See for S12516CR:
- Preparing for installation (9 pages) ,
- Installation manual (97 pages) ,
- Hardware reference manual (69 pages)
Related Manuals for H3C S12516CR
Summary of Contents for H3C S12516CR
- Page 1 H3C S12516CR Switch Router Installation Quick Start New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 5PW100-20200731...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
Contents 1 Preparing for installation ············································································· 1 ESD prevention ·················································································································································· 1 Examining the installation site ···························································································································· 1 Installation tools and equipment ························································································································ 1 2 Installing the device ···················································································· 2 Device dimensions ············································································································································· 2 Rack requirements ············································································································································· 3 Slide rail requirements ······································································································································· 3 Installing cage nuts for attaching mounting brackets ·························································································... -
Page 4: Preparing For Installation
EMI, grounding, power supply, ventilation, and space requirements. As a best practice, reserve a minimum of 1.2 m (3.94 ft) of clearance between the device and walls or other devices. For more information, see H3C S12500CR Switch Router Series Installation Guide. Installation tools and equipment No installation tools and equipment are provided with the device. -
Page 5: Installing The Device
Installing the device Device dimensions Figure 2-1 Device dimensions (1) Top hood (2) Mounting bracket... -
Page 6: Rack Requirements
(24.80 in) to 900 mm (35.43 in) and occupy 1U rack space. For information about installing the LSXM1BSR slide rails, see H3C LSXM1BSR 1U Bottom-Support Rails Installation Guide. Follow these guidelines for attaching the LSXM1BSR slide rails to the rack: •... -
Page 7: Mounting The Device In A Rack
Figure 2-2 Installing cage nuts Mounting the device in a rack WARNING! To avoid device damage or bodily injury, follow these guidelines to lift and move the device: • Use the chassis handles, rather than the handles of the components (fan trays, power supplies, and modules) as well as the chassis air vents, to move the chassis. - Page 8 To mount the device in the rack: Face the rear of the chassis towards the front of the rack. Lift the device to a height slightly above the slide rails by holding the chassis handles. Place the device on the slide rails from the front of the rack and slide the device along the guide rails until the mounting brackets on the device touch the front rack posts tightly, as shown by callout 2 in Figure...
-
Page 9: Grounding The Device
Grounding the device CAUTION: • Reliably grounding the device is crucial to lightning protection and EMI protection. Ground the device reliably before you use it. • To guarantee the grounding effect, use the grounding cable (yellow-green grounding cable) provided with the device. •... -
Page 10: Installing Removable Components
MPUs), environment management modules, interface modules, fabric modules, fan trays, power trays, and power supplies. For the compatibility matrix between these modules and the device models, see H3C S12500CR Switch Router Series Hardware Reference. WARNING! Long-time exposure to strong air flow might cause discomfort. As a best practice, do not stand close to the air outlet vents while the device is operating. - Page 11 Identify the installation position for the cable management bracket on the mounting bracket. The LA, LB, RA, and RB marks on the mounting brackets indicate the types of cable management brackets to be installed. Orient the cable management bracket, with the lettering facing upward, and then position the cable management bracket near its installation position on the mounting bracket.
-
Page 12: Installing Seus
Installing SEUs CAUTION: • If you are not to install an SEU in an SEU slot, keep the filler panel in the slot. • When you install an SEU, avoid damaging the connectors on the SEU. • When you install or remove the filler panel while the device is operating, hold both sides of the filler panel with two hands. -
Page 13: (Optional.) Replace Environment Management Modules
(Optional.) Replace environment management modules CAUTION: • Before replace an environment management module, remove cables from the module. • Do not use excessive force during the replacement procedure. The device comes with two environment management modules installed. To replace an environment management module: As shown in Figure 3-4, press the latch rightwards to release the ejector lever. -
Page 14: Installing Interface Modules
To install an S12500R interface module on the device, first install an interface module adapter in the target interface module slot. For more information about installing an interface module adapter, see H3C S12500CR LSXM1IMAA Interface Module Adapter User Manual. -
Page 15: Installing Fabric Modules
Figure 3-6 Installing an interface module Installing fabric modules The device comes with all fabric module slots empty. Purchase fabric modules and filler panels for the device as required. Installing fabric modules Follow these restrictions and guidelines when you install fabric modules: •... - Page 16 c. After the fan tray operates correctly, remove another fan tray and install or replace the fabric modules. • Before installing a fabric module, make sure it is compatible with the interface modules installed on the device. For example, type K fabric modules can be used only with Type K interface modules.
- Page 17 Figure 3-7 Fabric module with an air deflector (1) Air deflector (2) Close the air deflector until it is locked in place. Figure 3-8 Removing the protection box (1) Loosen the captive screws on the protection box (2) Hold the protection box to disengage it from the connector side of the fabric module...
-
Page 18: Installing A Filler Panel In A Fabric Module Slot
Figure 3-9 Installing a fabric module Installing a filler panel in a fabric module slot Loosen the captive screws on the ejector levers and rotate outward the ejector levers. - Page 19 Orient the filler panel with the side marked "UP" facing up. Hold the filler panel front panel near the ejector levers with one hand and support its bottom with the other. Place the filler panel bottom gently on the bottom guide rails of the chassis. Align the filler panel with the fabric module slot.
-
Page 20: Removing A Filler Panel From A Fabric Module Slot
Removing a filler panel from a fabric module slot As shown by callout 1 in Figure 3-11, loosen the captive screws on the ejector levers. As shown by callout 2 in Figure 3-11, rotate outward the ejector levers. Then pull the filler panel part way out of the slot. -
Page 21: Installing Fan Trays
Installing fan trays Follow these restrictions and guidelines when you install a fan tray: • Fan trays cover fabric module slots. Before installing a fan tray, install fabric modules or filler panels in the fabric module slots that the fan tray will cover. •... -
Page 22: Removing The Filler Panel From A Fan Tray Slot
Figure 3-12 Installing a fan tray Removing the filler panel from a fan tray slot The device comes with the FAN1 and FAN5 slots installed with filler panels. To install a fan tray in the FAN1 or FAN5 slot or install a fabric module in slot 20 or 21 under the FAN 1 slot or slot 28 under the FAN 5 slot, first remove the filler panel from the slot. - Page 23 To remove the filler panel from a fan tray slot: As shown by callout 1 in Figure 3-13, loosen the M3 screws on the fan tray filler panel. As shown by callout 2 in Figure 3-13, put your fingers into the holes of the filler panel, and then pull the filler panel out.
-
Page 24: Installing Power Supplies And Power Trays
Installing power supplies and power trays Power trays and power supplies The power supplies are installed in the power trays. Power supplies at the front correspond to the power input ends at the rear as shown in Figure 3-14. Figure 3-14 Power supplies and power input ends PWR 6 PWR 5 PWR 4... -
Page 25: Connecting Power Cords
Figure 3-15 Removing a filler panel Align the power supply with the power supply slot. Then slide the power supply along the guide rails into the slot until the latch locks the power supply in place, as shown in Figure 3-16. - Page 26 Figure 3-17 Protective plate and power switch (1) Protective plate over the power input area (2) Power switch Connecting an AC power cord Connect the AC power cord connector to the AC input receptacle on the power tray, as shown by callout 1 in Figure 3-18.
-
Page 27: (Optional) Installing Power Trays
Figure 3-19 Removing the cover from the power tray Remove the screws on the terminal blocks. Use the screws to connect the black wires to the positive terminals marked with RTN(+) and the blue wires to the negative terminals marked with NEG(–), as shown in Figure 3-20. - Page 28 Figure 3-21 Removing a front filler panel from a power tray slot Figure 3-22 Removing a rear filler panel from a power tray slot...
-
Page 29: Installing The Air Filter In The Top Hood
Figure 3-23 Installing a power tray Installing the air filter in the top hood The device comes with the top hood installed. You only need to install the air filter in the top hood. To install the air filter in the top hood: Unpack the air filter. -
Page 30: Installing Transceiver Modules
Figure 3-25 Installing the air filter in the top hood Installing transceiver modules CAUTION: If you are not to use a fiber port or transceiver module, insert dust plugs into the port or module. If you are not to connect an optical fiber, install dust caps for the fiber connector. Installing a transceiver module The transceiver modules are hot swappable. -
Page 31: Connecting An Interface Cable
NOTE: The types of transceiver modules supported by the device might change over time. For information about installing a transceiver module, see H3C Transceiver Modules and Network Cables Installation Guide. Connecting an interface cable CAUTION: When you connect an interface cable, make sure the bend radius of the interface cable is no less than eight times the cable diameter. -
Page 32: Cabling Recommendations
Cabling recommendations The cable management brackets are installed at the two sides of the chassis front panel. As a best practice, route network cables from the left and right sides, as shown in Figure 4-1. Figure 4-1 Routing cables... -
Page 33: Accessing The Device
Accessing the device The first time you access the device you must use a console cable to connect a console terminal, for example, a PC, to the console port on the device. Connecting the console cable IMPORTANT: • Identify the mark on the console port and make sure you are connecting to the correct port. •... -
Page 34: Viewing Device Startup Information
The cooling system is working, and you can hear fan rotating noise and feel air being blown out. • The LEDs on the SEUs show that the system is operating correctly. For more information about LEDs, see H3C S12500CR Switch Router Series Hardware Reference.
