Summary of Contents for SUPAIR BUMP STK2

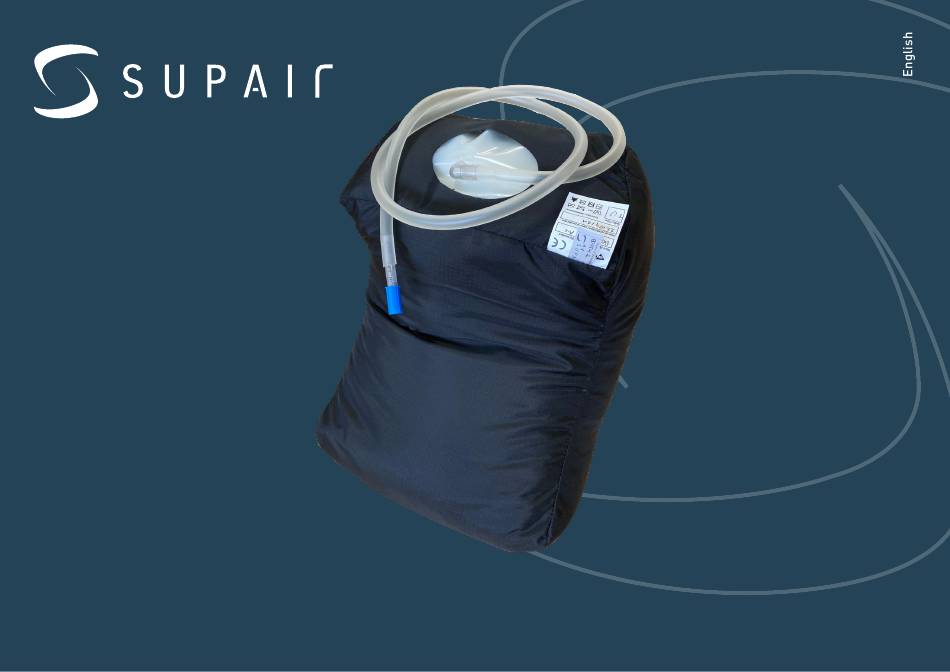

  • Page 1 BUMP STK2 SUPAIR SAS PARC ALTAÏS 34 RUE ADRASTÉE 74650 ANNECY CHAVANOD User’s manual FRANCE RCS 387956790 Indice de révision : V1 01/07/2021...
  • Page 2: Table Of Contents

    Installation in the harness Inflating the protection Deflating the protection Note Maintenance Cleaning and maintenance Product longevity and warranty Repair Spare parts Materials Recycling Shock Absorber In case of incident Service Book SUPAIR | BUMP STRIKE 2 | page 2...
  • Page 3: Introduction

    Welcome to the world of paragliding according to SUPAIR, a world of shared passion. The BUMP STK2 inflatable protection is an option for the STRIKE 2 hike&fly harness. This option is particularly suitable for entering the world of light and performance! This protection increases the damping characteristics of the STRIKE 2 and makes the harness more compact in the walking phase! Originally designed for X-Alps pilots, it is intended for the hike &...
  • Page 4: Presentation

    User’s manuel | BUMP STRIKE 2 GENERAL PRESENTATION SUPAIR | BUMP STRIKE 2 | page 4...
  • Page 5: Nomenclature

    User’s manuel | BUMP STRIKE 2 NOMENCLATURE Envelope Inflatable pocket Pipe Pull-push valve SUPAIR | BUMP STRIKE 2 | page 5...
  • Page 6: Operating Principle

    A tube ending in a Pull-push valve allows the bag to be inflated or deflated. This action is done at the harness shoulder straps which makes it pos- sible to inflate the protection when the pilot is in the harness at take-off (or in flight to adjust the pressure). SUPAIR | BUMP STRIKE 2 | page 6...
  • Page 7: Installation In The Harness

    Insert the Inflatable BUMP by first passing the pipe through the hole at the bottom of the pocket on the top right. The passage (8mm diameter hole may be difficult to find) SUPAIR | BUMP STRIKE 2 | page 7...
  • Page 8 The pipe passes between the back plate pocket and the back pocket (visible by opening the horizontal zip in the back pocket). Pass the tube through a new 8mm diameter hole into the back pocket. SUPAIR | BUMP STRIKE 2 | page 8...
  • Page 9 And not the reverse. - Check that the tube is not twisted or pinched between the bag and the mouthpiece, which can affect inflation in flight. SUPAIR | BUMP STRIKE 2 | page 9...
  • Page 10: Use

    The bag is correctly inflated when the pressure in the bag prevents further inflation (like a buoy, there is no need to force it). Close the valve by pushing the nozzle towards the bag. CLOSE SUPAIR | BUMP STRIKE 2 | page 10...
  • Page 11: Deflating The Protection

    Pull the movable nozzle towards you OPEN WARNING Don’t try to turn the valve. Risk of damaging the connection with the pipe. The only movements you need to do are pulling or pushing the nozzle. SUPAIR | BUMP STRIKE 2 | page 11...
  • Page 12: Note

    For the standard test: The protection is inflated and tested at the same altitude with a “normal” full inflation pressure at the mouth without forcing. At an altitude higher than the take-off altitude, i.e. higher than the inflation altitude, the pressure in the protection increases. Supair’s tests show a stable shock absorption quality compared to the test conditions.
  • Page 13: Repair

    We have minimized our manufacturing footprint by carefully selecting environmentally friendly materials; most of our components are recyclable. If you estimate that your BUMP STK2 has reached the end of it life span, you can separate plastics from metals and recycle them according to your community rules in effect.
  • Page 14: Shock Absorber

    Entretien / Maintenance : 30°C If your BUMPAIR is damaged, have it inspected and repaired at a professional qualified facility or contact us at sav@supair.com The test results and the EU declaration of conformity can be found at: www.supair.com SUPAIR...
  • Page 15: In Case Of Incident

    IN CASE OF AN INCIDENT Call for help after an accident Emergency call numbers EUROPE / INDIA Help needed? USA / CANADA CHINA / JAPAN NEPAL IRAN AUSTRALIA NEW ZEALAND Flashlight SOS : SUPAIR | BUMP STRIKE 2 | page 15...
  • Page 16: Service Book

    User’s manuel | BUMP STRIKE 2 SERVICE BOOK This page will help you keep record of your BUMP STK2 scheduled maintenance. Care Care Purchase date Resale Resale Owner’s name : Date Date Name and stamp of the shop : Workshop’s name/ Buyer’s name Workshop’s name/ Buyer’s name...
  • Page 17 SUPAIR-VLD Parc Altaïs 34 rue Adrastée 74650 Chavanod, Annecy FRANCE info@supair.com +33(0)4 50 45 75 29 RCS 387956790...
