4.4.2 Example two – fixed IP on the WAN
Company ABC likes to establish a WLAN network to support mobile communication on all
employees' Notebook PCs. MIS engineer collects information and plans the WLAN Broadband Router
implementation by the following configuration.
WAN configuration : Fixed IP
IP Address
Subnet Mask
Default Gateway
Primary DNS Address
LAN configuration:
IP Address
Subnet Mask
DHCP Client Range
WLAN configuration:
SSID
Channel Number
1. Configure the WAN interface:

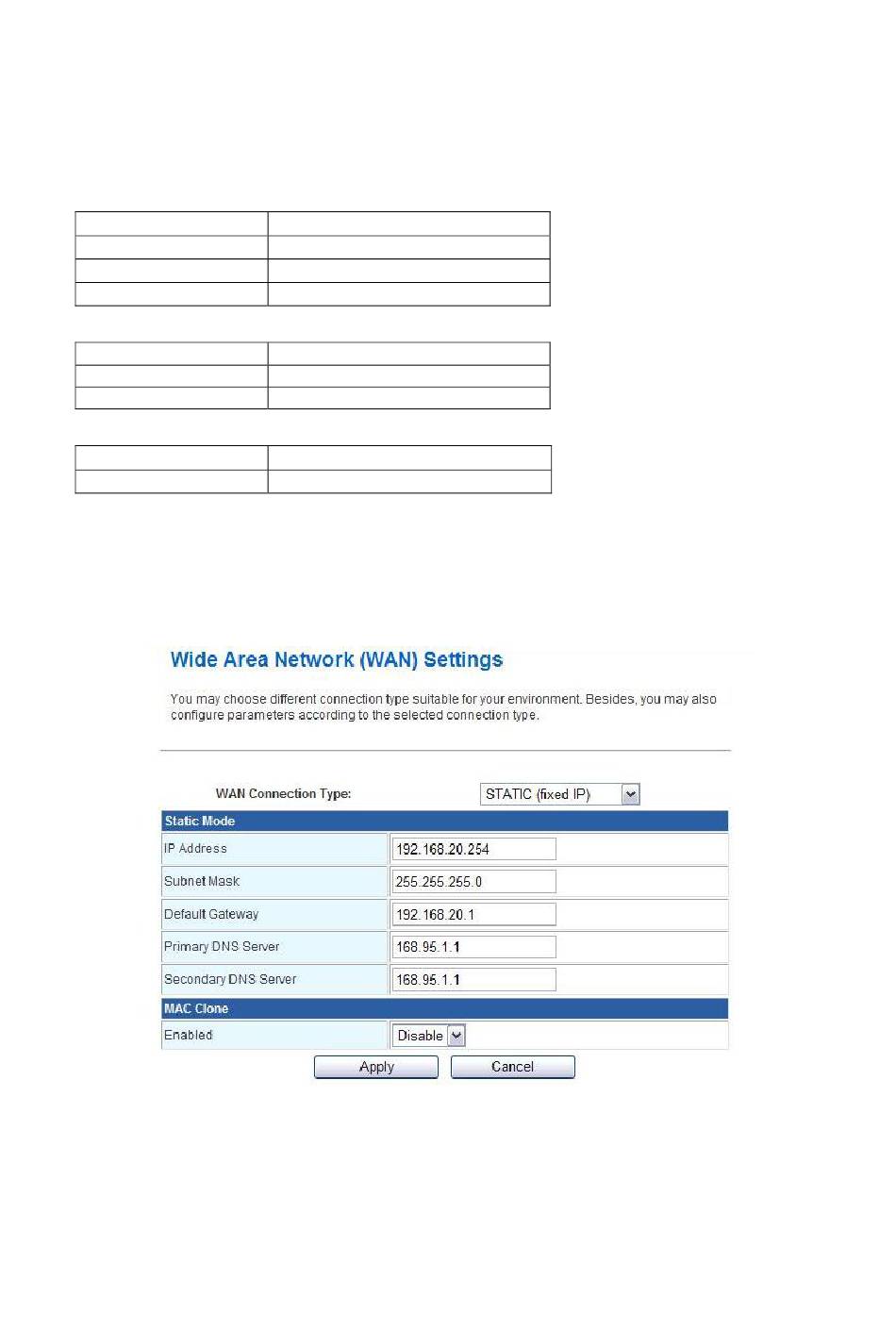

Open "Wide Area Network (WAN) Settings" page, select STATIC(fixed IP) then enter IP Address
"192.168.20.254", subnet mask "255.255.255.0", Default gateway "192.168.20.1".
Press "Apply" button to confirm the configuration setting.
192.168.20.254
255.255.255.0
192.168.20.1
168.95.1.1
10.10.10.254
255.255.255.0
10.10.10.100 – 10.10.10.200
AP
AutoSelect
