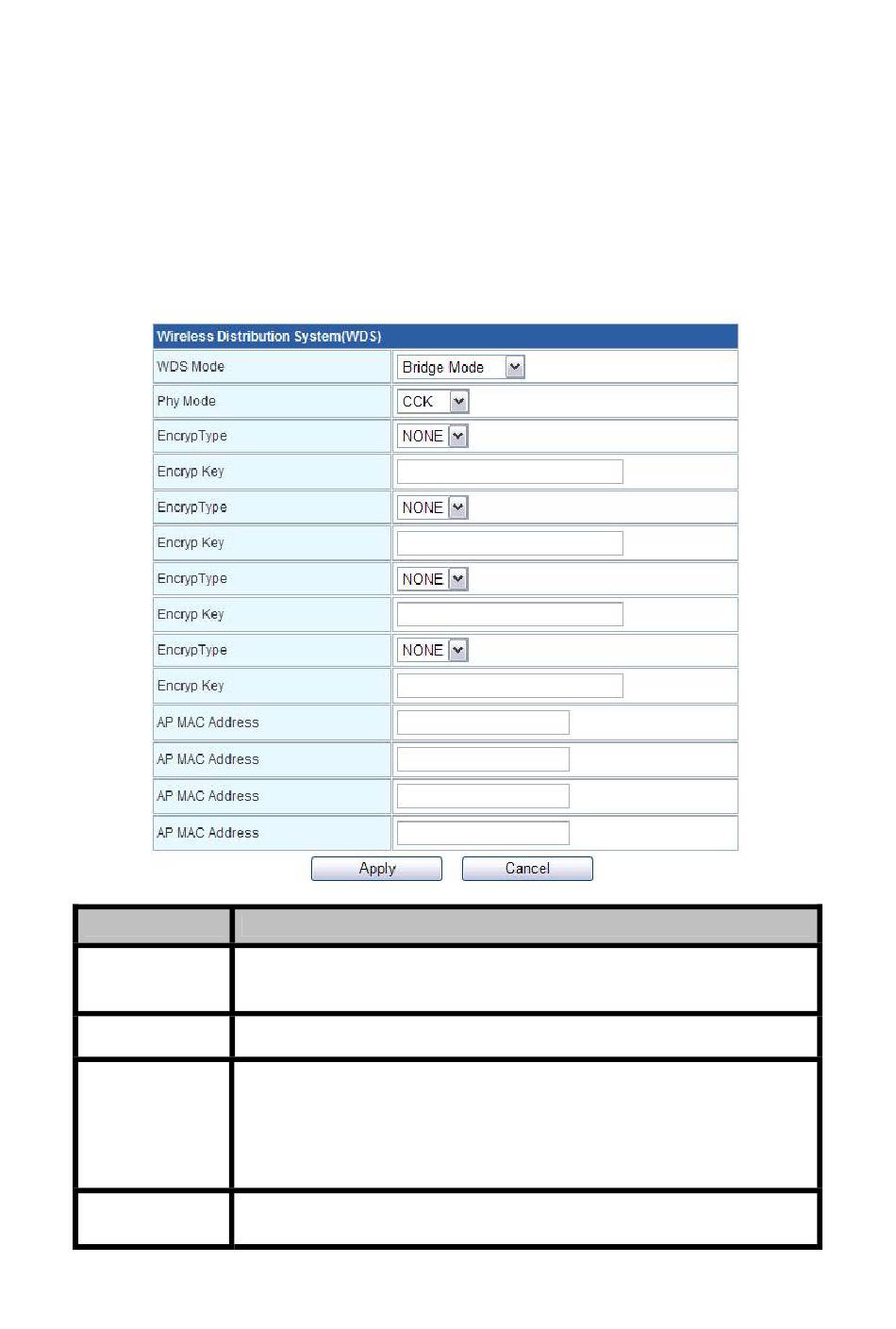

c. Bridge Mode
Bridge mode allows user to operate as a standard bridge that forwards traffic
between WDS links (links that connect to other units in Repeater or Lazy mode). The
MAC addresses of WDS peers must be configured on the Wireless 11n Access Points/
Repeaters. Basically this mode is used when you have a 2.4G outdoor router with
more than one WDS link to other AP/Repeaters.
Note: In this mode wireless clients will not be able to connect to the 2.4G outdoor
router directly.
Item Description
Phy Mode
Select wireless physical mode from pull down menu. CKK (11b). OFDM (11g).
HTMIX (11b/g/n mixed mode)
Encryp Type Select encryption type for wireless data transmission. There are four options:
None, WEP, TKIP or AES.
Encryp Key
When you select WEP encryption type on above, please input 5, 13 (ASCII), 10 or
26 (HEX) characters for WEP Key.
When you select TKIP or AES encryption type on above, please input a
Passphrase or Hex (64 characters).
AP MAC Address Fill in the MAC address of AP which WDS links in Repeater or Lazy mode.
