Lan - Loopcomm LP-7316H User Manual

4.3.3.2

LAN

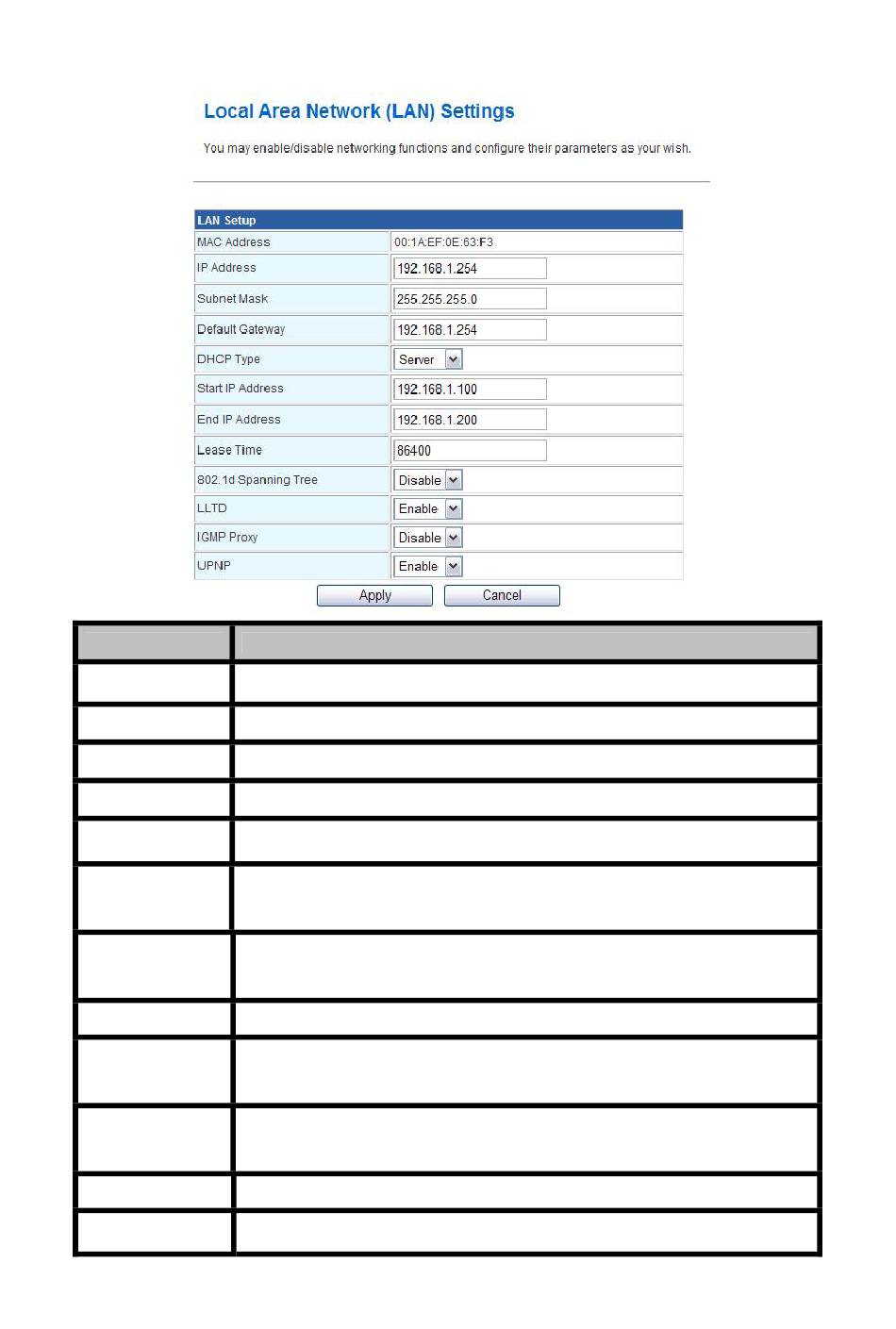

Item Description
MAC Address
Show the MAC address of LAN interface.
IP Address
Fill in the IP address of LAN interfaces.
Subnet Mask
Fill in the subnet mask of LAN interfaces.
Default Gateway
Fill in the default gateway for LAN interfaces out going data packets.
DHCP Type Disable: Disable DHCP server on LAN side.
Server: Enable DHCP server on LAN side.
Start IP Address Fill in the start IP address to allocate a range of IP addresses; client with DHCP
function set will be assigned an IP address from the range.
End IP Address Fill in the end IP address to allocate a range of IP addresses; client with DHCP
function set will be assigned an IP address from the range.
Lease Time Fill in the lease time of DHCP server function.
802.1d Spanning Select enable or disable the IEEE 802.1d Spanning Tree function from pull-down
Tree menu.
LLTD Select enable or disable the Link Layer Topology Discover function from
pull-down menu.
IGMP Proxy Select enable or disable the IGMP proxy function from pull-down menu.
UPNP Select enable or disable the UPnP protocol from pull-down menu.
