ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench
and your own phillips screwdriver
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.

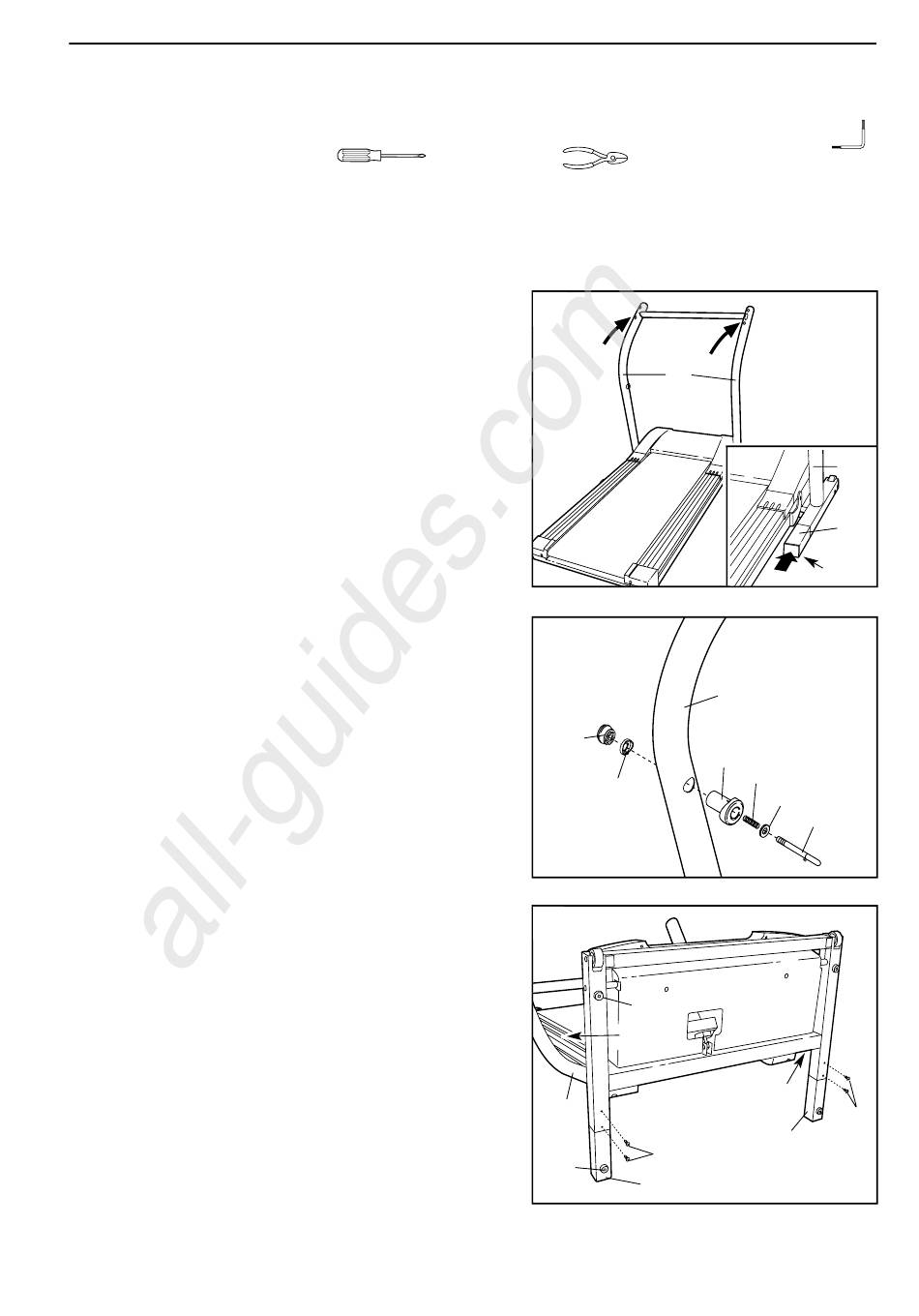

1. With the help of a second person, carefully raise the
Uprights (69) until the treadmill is in the position shown.
See the inset drawing. Insert one of the Extension Legs
(102) into the treadmill as shown. Make sure that the
Extension Leg is turned so the Base Pad (99) is on the
bottom. Note: It may be helpful to tip the Uprights (69)
forward as you insert the Extension Leg.
Insert the other Extension Leg (not shown) in the same
way.
2. Press the Lock Knob Sleeve (70) into the left Upright (69).
Make sure that the Lock Pin Collar (72) and the Spring
(71) are on the Lock Pin (74). Insert the Lock Pin into the
Lock Knob Sleeve (70) and the left Upright (69). Next,
press the Lock Knob Spacer (80) onto the left Upright.
Tighten the Lock Knob (68) onto the Lock Pin.
3. With the help of a second person, carefully tip the
Uprights (69) down as shown. Make sure that the
Extension Legs (102) remain in the Uprights.
Attach each Extension Leg (102) with two Screws (111)
as shown.
With the help of a second person, carefully tip the
Uprights (69) back to the vertical position.
Note: One replacement Base Pad (99) may be included.
Use the Base Pad to replace any Base Pad that becomes
worn.
All manuals and user guides at all-guides.com
and wire cutters
6
.
1
69
2
68
70
80
3
99
Frame
69
111
99
102
69
102
99
69
71
72
74
69
111
102
