DEEP SEA ELECTRONICS DSEE800 Installation Instructions

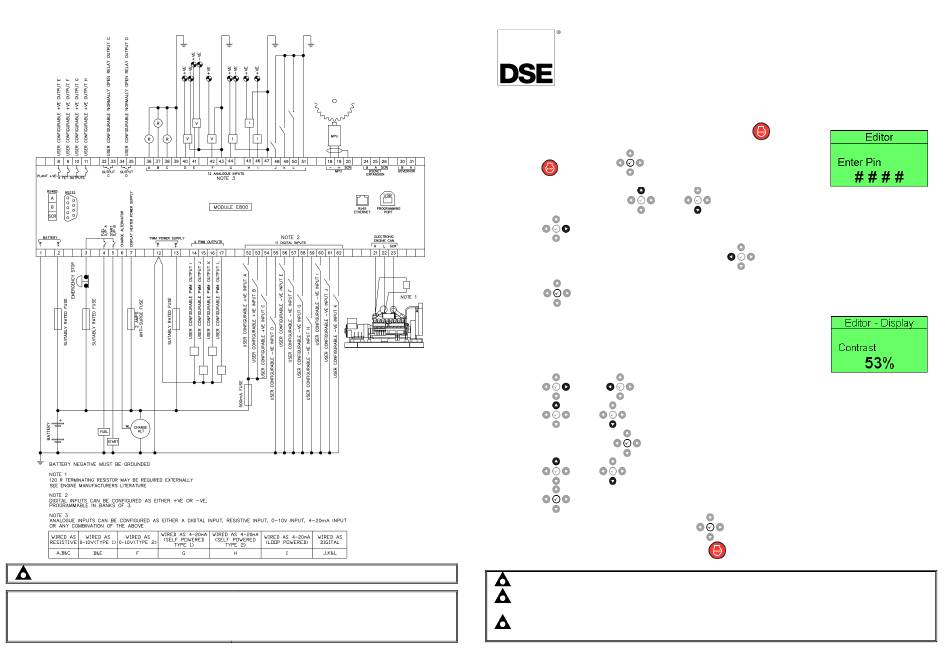

TYPICAL WIRING DIAGRAM
NOTE: To meet UL requirements, fuse the module supply at 167% of supply current.
Deep Sea Electronics Ltd.
Tel:+44 (0)1723 890099
Email: support@deepseaelectronics.com
Web: www.deepseaelectronics.com
Deep Sea Electronics Inc.
Tel: +1 (815) 316 8706
Fax: +1 (815) 316 8708
Email: support@deepseausa.com
Web: www.deepseausa.com
D E E P S E A E L E C T R O N I C S
DSEE800 Installation Instructions
ACCESSING THE MAIN CONFIGURATION EDITOR
•
Ensure the engine is at rest and the module is in STOP mode by pressing the
button.
•
Press the (Stop/Reset) and (Tick) buttons simultaneously.
•
If a module security PIN has been set, the PIN number request is then shown:
•
The first '#' changes to '0'. Press the
(Up) or
•
(Right) button when the first digit is correctly entered. The digit previously entered now shows '#' for security.
Press the
•
Repeat this process for the other digits of the PIN number. Press the
digits.
•
When the (Tick) button is pressed after editing the final PIN digit, the PIN is checked for validity. If the number is not correct,
the PIN must be re-entered.
•
If the PIN has been successfully entered (or the module PIN has not been enabled), the editor is
displayed:
EDITING A PARAMETER
•
Enter the editor as described above.
•
Press the (Right) or (Left) buttons to cycle to the section to view/change.
•
Press the (Up) or (Down) buttons to select the parameter to view/change within the currently selected section.
•
To edit the parameter, press the (Tick) button to enter edit mode. The parameter begins to flash to indicate editing.
•
Press the (Up) or (Down) buttons to change the parameter to the required value.
•
Press the (Tick) button to save the value. The parameter ceases flashing to indicate that it has been saved.
•
To exit the editor and save the changes, press and hold the
•
To exit the editor and not save the changes, press and hold the
NOTE: The editor is exited after 5 minutes of inactivity to ensure security.
NOTE: The PIN number is automatically reset when the editor is exited (manually or automatically) to
ensure security.
NOTE: More comprehensive module configuration is possible using the DSE Configuration Suite PC
Software, refer to DSE publication 057-203 DSEE800 Configuraiton Suite PC Software Manual.
053-090
ISSUE 3
(Stop/Reset)
(Down) button to adjust it to the correct value.
(Left) button to move back to adjust one of the previous
(Tick) button.
.
(Stop/Reset) button
