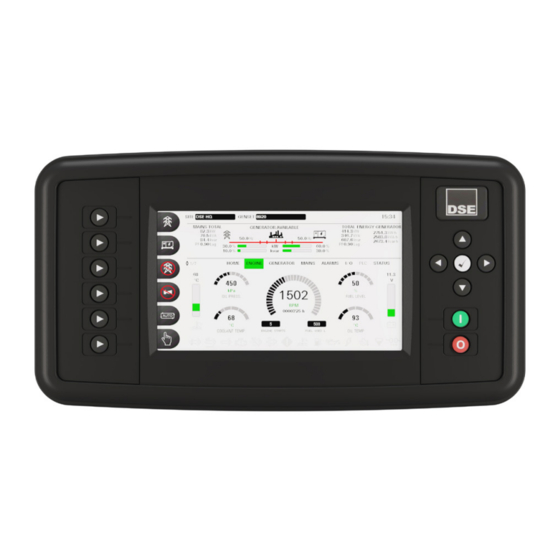

DEEP SEA ELECTRONICS DSE8910 Installation Instructions

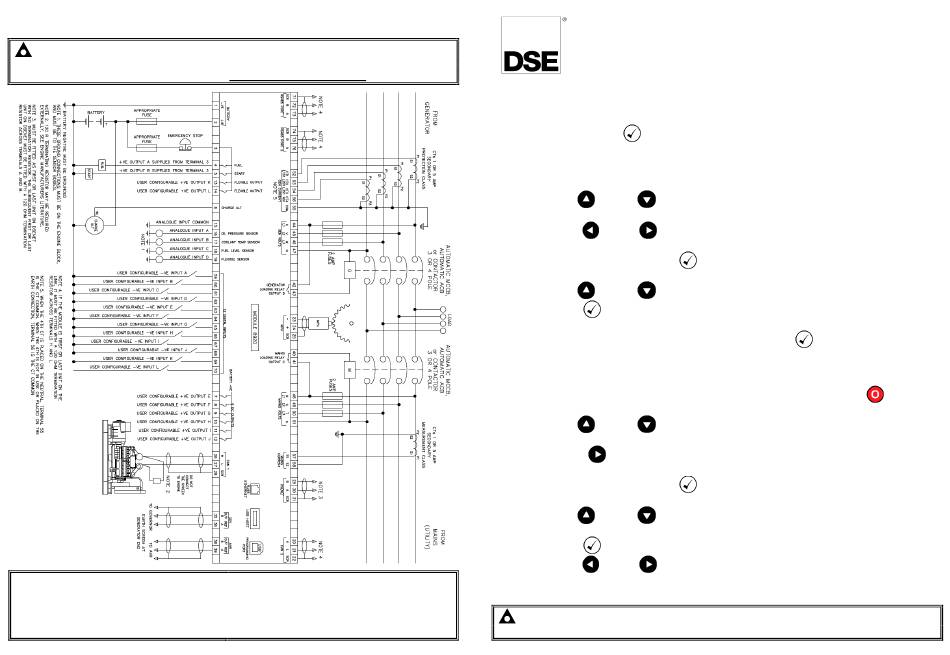

TYPICAL WIRING DIAGRAM
NOTE: Larger versions of the Typical Wiring Diagrams are available in the products'
operator manuals, refer to DSE Publication: 057-310 DSE8910 Operator Manual & 057-311
DSE8920 Operator Manual, both available from www.deepseaelectronics.com.
Deep Sea Electronics Ltd.
Tel:+44 (0)1723 890099
Email: support@deepseaelectronics.com
Web: www.deepseaelectronics.com
Deep Sea Electronics Inc.
Tel: +1 (815) 316 8706
Email: USAsupport@deepseaelectronics.com
Web: www.deepseaelectronics.com
D E E P S E A E L E C T R O N I C S
DSE8910 & DSE8920 Installation Instructions
ACCESSING THE RUNNING CONFIGURATION EDITOR
•
The Running Configuration Editor is accessible without stopping the generator. All protections
remain active whilst the 'Running Configuration Editor is accessed.
•
Press and hold the Tick button to enter the Running Configuration Editor.
EDITING A PARAMETER
•
Enter the Running Configuration Editor as described above.
•
Press the Up or Down buttons to select the section to view/change. The current selected
section highlights in green.
•
Press the Left or Right buttons to select the Subsection/Parameter to be edited. The
current selected item highlights in green.
•
To edit the parameter, press the Tick
longer highlighted green to indicate editing.
•
Press the Up or Down buttons to change the parameter to the required value.
•
Press the Tick button to save the value. The parameter highlights green to indicate that it has
been saved.
•
To exit the editor and save the changes, press and hold the Tick
SELECTING THE DSE8910 OR DSE8920 SOFTWARE APPLICATION
•
Ensure the generator is at rest and the module by pressing the Stop/Reset Mode
•
Enter the Running Configuration Editor as described above.
•
Press the Up or Down buttons to navigate to the MODEL TYPE section. The section
highlights in green when selected.
•
Press the Right button to select the MODEL SELECTION parameter. The parameter
highlights in green when selected.
•
To edit the parameter, press the Tick
longer highlighted green to indicate editing.
•
Press the Up or Down buttons to change between DSE8910 and DSE8920, by default
DSE8920 is selected.
•
Press the Tick button to change the software application, a confirmation box appears.
•
Press the Left or Right buttons to select YES to confirm software application change.
When prompted, remove the power supply to the module and then reapply the power supply. The
module powers up in the newly selected software application.
NOTE: If the editor is left inactive for the duration of the LCD Page Timer, it is automatically
exited to ensure security.
button to enter the edit mode. The parameter is no
button.
button to enter the edit mode. The parameter is no
053-248
ISSUE: 1
button.
