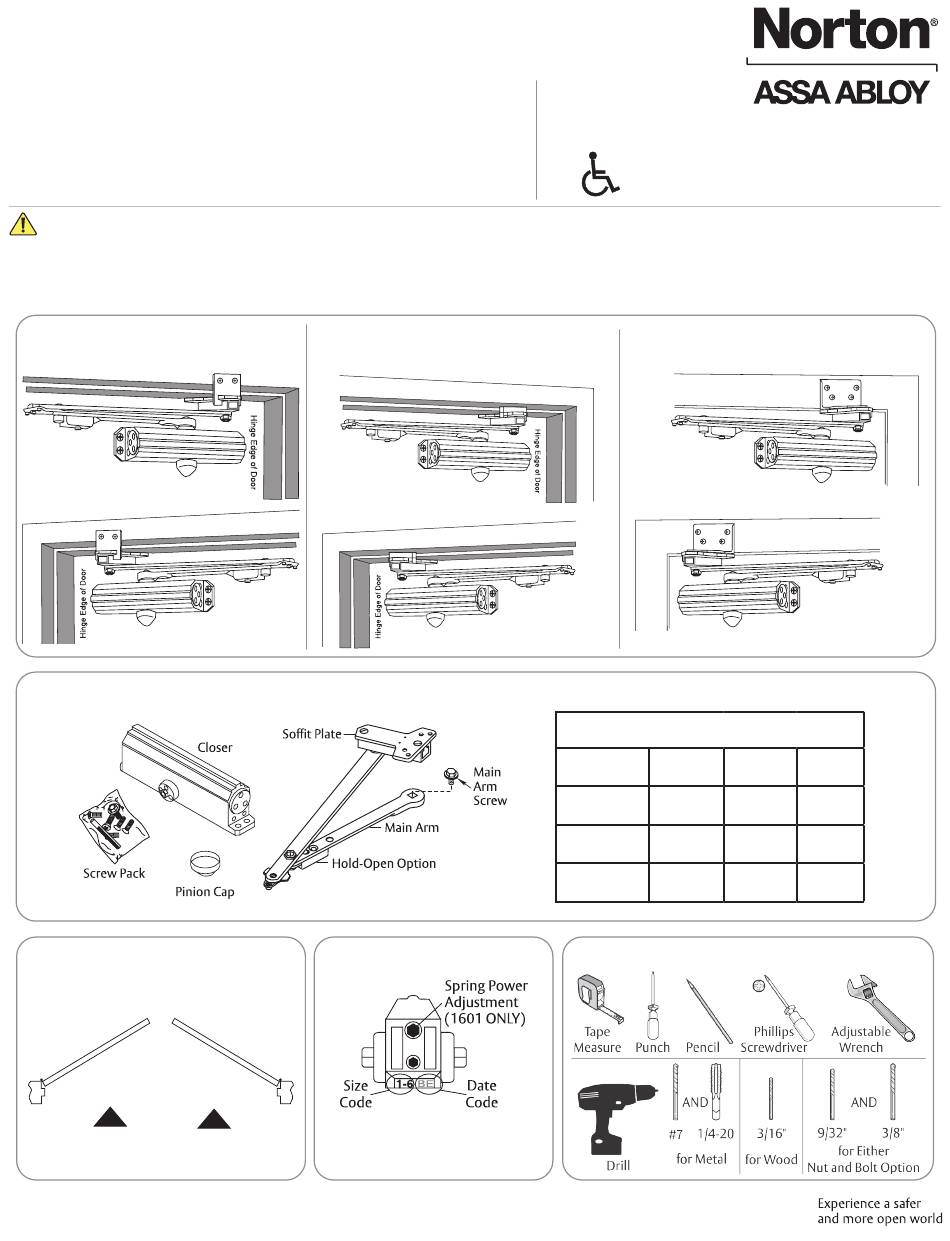

Assa Abloy Norton 1600 UniTrol Quick Start Manual

1600 UniTrol
®
Non Handed Door Closer
Standard Frame
Deep Reveal
Flush Transom
WARNING
This product can expose you to lead which is known to the state of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65warnings.ca.gov.
Standard Frame
(Reveals 1-7/8" to 4-5/8" - Uses 6190 Bracket)
Right Hand Door - RH
Left Hand Reverse - LHR
Left Hand Door - LH
Right Hand Reverse - RHR
Included Components (See page 2 for mounting hardware and optional components)
TO DETERMINE
HAND OF
To Determine Your Hand of Door:
YOUR DOOR:
Right Hand
Reverse
LEFT
HAND
DOOR
Copyright © 2016, 2020, ASSA ABLOY Accessories and Door Controls Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Accessories and Door Controls Group, Inc. is prohibited.
80-9316-2533-020 Rev 2 02/20
Hold Open (H)
(Reveals Over 4-5/8" - Uses 6191 Reinforcing Kit)
Right Hand Door - RH
Left Hand Reverse - LHR
To Identify Your Model:
Left Hand
Reverse
RIGHT
HAND
DOOR
Non Hold Open
(Not UL Listed)
Sized Adjustable
(Sizes 3,4) (Sizes 1-6)
UNI-1603BC (H) UNI-1601 (H)
UNI-1604BC (H)
Ce produit peut vous exposer au plomb qui, dans l'état de la Californie,
est reconnu pour causer le cancer, des anomalies congénitales ou d'autres
problèmes de reproduction. Pour plus d'informations, visitez:
www.P65warnings.ca.gov.
Deep Reveal
Left Hand Door - LH
Right Hand Reverse - RHR
1-6 = 1601
3 = 1603BC
4 = 1604BC
(UL Listed)
Flush Transom
(Uses 2022 Bracket)
Right Hand Door - RH
Left Hand Reverse - LHR
Arm Identification (Stamped on Arm)
Non Hold
Door Width Main Arm
28" - 32" 9-1/2"
6100-11
(0.70 - 0.80m) (241mm)
33" - 41" 11"
6100-13
(0.85 - 1.00m) (279mm)
42" - 48" 12-1/2"
6100-14
(1.05 - 1.20m) (318mm)
Tools Needed
Left Hand Door - LH
Right Hand Reverse - RHR
Hold
Open Open
6100-1
6100-3
6100-4
