Specifications - Armytek WIZARD C2 PRO NICHIA User Manual

ENG USER MANUAL
Thank you for choosing the products of Armytek.
Please read this manual carefully before using the flashlight.

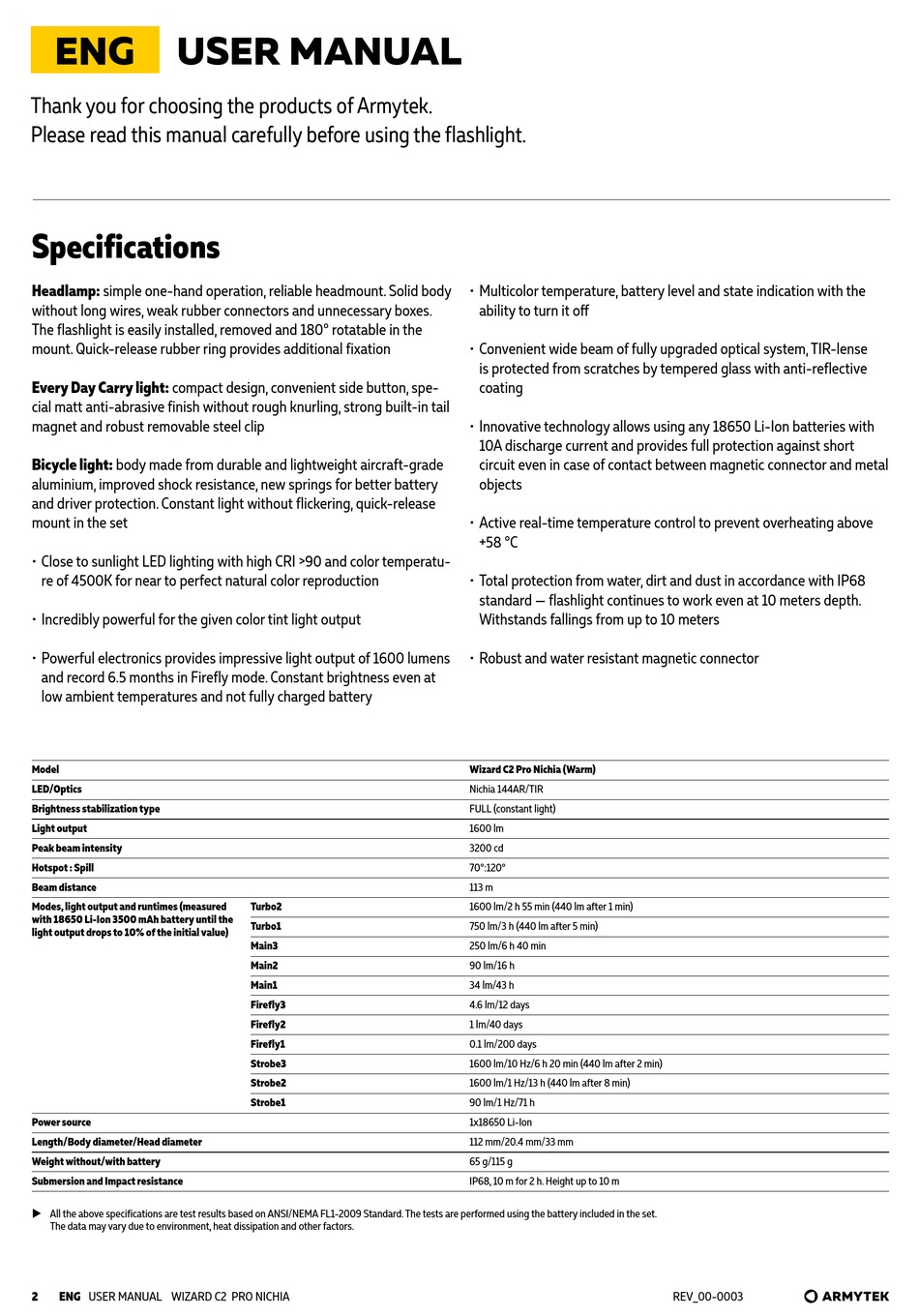

Specifications

Headlamp: simple one-hand operation, reliable headmount. Solid body
without long wires, weak rubber connectors and unnecessary boxes.
The flashlight is easily installed, removed and 180° rotatable in the
mount. Quick-release rubber ring provides additional fixation
Every Day Carry light: compact design, convenient side button, spe-
cial matt anti-abrasive finish without rough knurling, strong built-in tail
magnet and robust removable steel clip
Bicycle light: body made from durable and lightweight aircraft-grade
aluminium, improved shock resistance, new springs for better battery
and driver protection. Constant light without flickering, quick-release
mount in the set
• Close to sunlight LED lighting with high CRI >90 and color temperatu-
re of 4500K for near to perfect natural color reproduction
• Incredibly powerful for the given color tint light output
• Powerful electronics provides impressive light output of 1600 lumens
and record 6.5 months in Firefly mode. Constant brightness even at
low ambient temperatures and not fully charged battery
Model
LED/Optics
Brightness stabilization type
Light output
Peak beam intensity
Hotspot : Spill
Beam distance
Modes, light output and runtimes (measured
with 18650 Li-Ion 3500 mAh battery until the
light output drops to 10% of the initial value)
Power source
Length/Body diameter/Head diameter
Weight without/with battery
Submersion and Impact resistance
X All the above specifications are test results based on ANSI/NEMA FL1-2009 Standard. The tests are performed using the battery included in the set.
The data may vary due to environment, heat dissipation and other factors.
2 ENG USER MANUAL WIZARD C2 PRO NICHIA
Turbo2
Turbo1
Main3
Main2
Main1
Firefly3
Firefly2
Firefly1
Strobe3
Strobe2
Strobe1
• Multicolor temperature, battery level and state indication with the
ability to turn it off
• Convenient wide beam of fully upgraded optical system, TIR-lense
is protected from scratches by tempered glass with anti-reflective
coating
• Innovative technology allows using any 18650 Li-Ion batteries with
10A discharge current and provides full protection against short
circuit even in case of contact between magnetic connector and metal
objects
• Active real-time temperature control to prevent overheating above
+58 °C
• Total protection from water, dirt and dust in accordance with IP68
standard — flashlight continues to work even at 10 meters depth.
Withstands fallings from up to 10 meters
• Robust and water resistant magnetic connector
Wizard C2 Pro Nichia (Warm)
Nichia 144AR/TIR
FULL (constant light)
1600 lm
3200 cd
70°:120°
113 m
1600 lm/2 h 55 min (440 lm after 1 min)
750 lm/3 h (440 lm after 5 min)
250 lm/6 h 40 min
90 lm/16 h
34 lm/43 h
4.6 lm/12 days
1 lm/40 days
0.1 lm/200 days
1600 lm/10 Hz/6 h 20 min (440 lm after 2 min)
1600 lm/1 Hz/13 h (440 lm after 8 min)
90 lm/1 Hz/71 h
1x18650 Li-Ion
112 mm/20.4 mm/33 mm
65 g/115 g
IP68, 10 m for 2 h. Height up to 10 m
REV_00-0003
