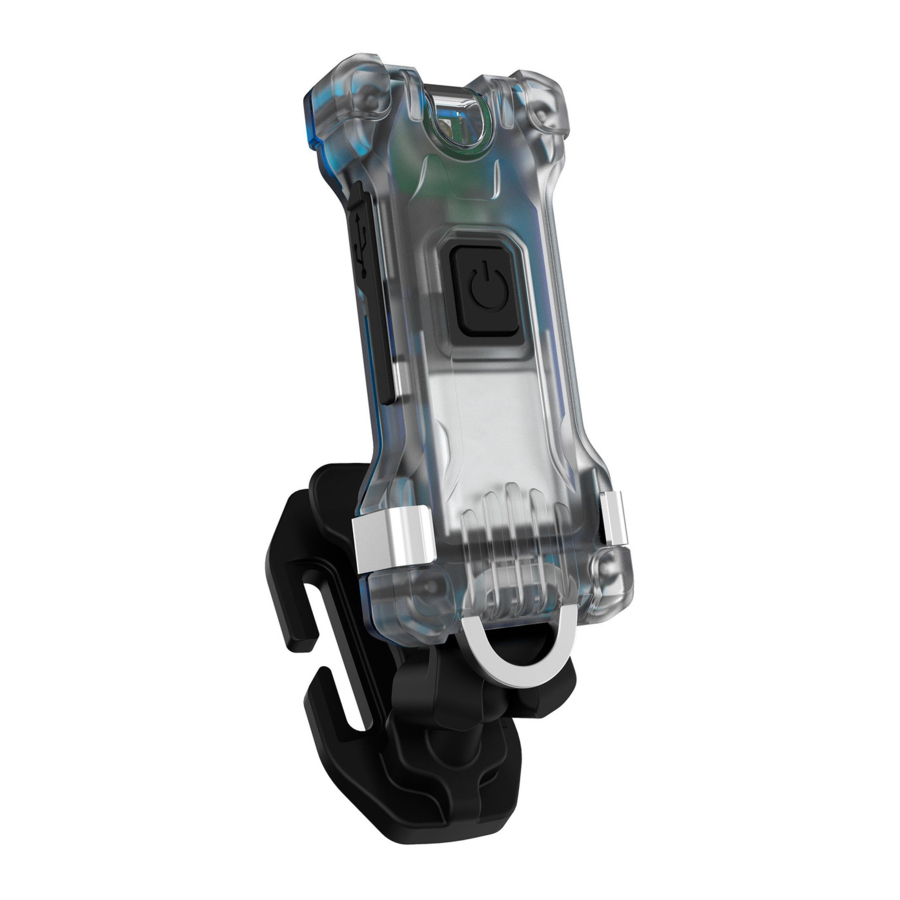

ArmyTek Zippy - Keychain Flashlight Manual

Please read this manual carefully before using the product.

Specification

• Maximum light output 200 LED lumens
• Unique optical system with 110° angle of light
• Built-in Li-Pol battery and color indication of charge level
• Robust, shockproof and water-resistant body
• Simple operation with one button
• Slim and lightweight: 59x25x9 mm / 12 g
• Auto-memorization of last used mode
• Lock function against accidental activation
• Durable ring for keys and removable steel clip for attaching to a belt, backpack or pocket

Set description

Items included in the package: flashlight, steel clip, user manual.

The producer reserves the right to change the package at his own discretion without modifying this manual.

Operation

On / Off. Click the button once.

Cycling through the modes. Press and hold the button, when the flashlight is on. Release the button to select the mode. The flashlight remembers the last used mode.

Lock function. Press and hold the button for 3 seconds when the flashlight is off. Repeat the action to unlock. When you hold the button, the flashlight blinks once to confirm the lock / unlock. To turn on the flashlight, click the button.

Warning indication of battery level. Low level - the flashlight blinks once and begins to decrease in brightness before turning off in the Maximum and Medium modes. When cycling through the modes and the battery is low, the flashlight will turn off after the third cycle.

Charging

Insert the cable into the Micro-USB connector and connect it to the USB-A output of any battery charger with an output voltage of 4.5 - 5.5V. Approximate charging time for a fully discharged battery is 1 hour 10 minutes.

Indication of the charging process: Red color – the charging is in progress. Green color – the charging is finished.

Service and Warranty

Armytek provides free warranty repair for 5 years (excluding batteries, chargers, switches and connectors, which have a 2-year warranty) from the date of acquisition and if there is a document confirming the purchase.

Warranty doesn't cover damage caused by:

1. Improper usage.
2. Attempts to modify or repair the flashlight by nonqualified specialists.
3. Prolonged use in chlorinated or other polluted liquids.
4. High temperatures and chemicals (including the exposure of liquid from defected batteries).

Optional: original 360° headband widens the spheres of Zippy application.

Specifications are subject to change without notice.
