Summary of Contents for Technika TFS54FC-DGW

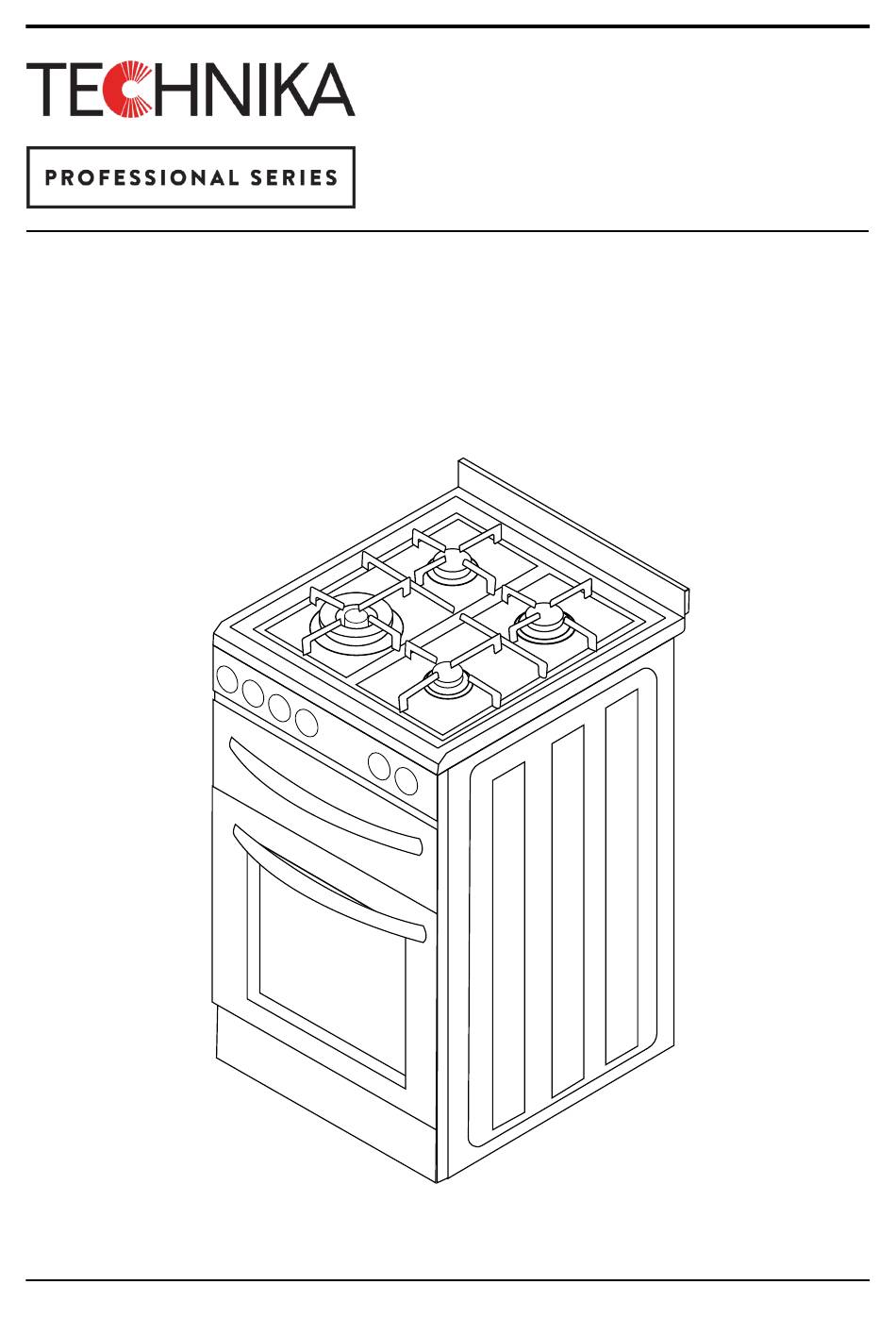

- Page 1 USER GUIDE 5 4 C M F R E E S T A N D I N G G A S C O O K E R T F S 5 4 F C - D G W TECHNIKA.COM.AU...
-
Page 3: Table Of Contents
CONTENTS TABLE Conditions of use..............Pg 3 Safety precautions ..............Pg 4 Other important safety information........Pg 4 Warnings for use of oven and appliance hob....Pg 5 Installation, cleaning and service ........Pg 6 Product descriptions..............Pg 7 First time use of the appliances...........Pg 8 Using the oven .................Pg 9 Oven shelf location ..............Pg 10 Using the grill................Pg 12... -
Page 4: Safety Precautions
SAFETY USE • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •... -
Page 5: Warnings For Use Of Oven And Appliance Hob
WARNINGS FOR USE OF OVEN AND APPLIANCE HOB Grill warnings • DO NOT leave grill on unattended. • DO NOT cover the grill tray wire rack with foil. • Trying to grill food more than 25mm thick under grill can be a fire hazard. Trim excess fat from fatty meats, such as pork and lamb. -
Page 6: Installation, Cleaning And Service
INSTALLATION CLEANING AND SERVICING • An authorised person must install this appliance. (Certificate of Compliance to be retained). • Before using the appliance, ensure that all packing materials are removed from the appliance. • In order to avoid any potential hazard, the Installation Instructions must be followed. •... -
Page 7: Product Descriptions
PRODUCT DESCRIPTIONS Description of Electric Cooker 1. Cast iron pan support (trivet) incldes WOK trivet (not pictured) 2. Burner with removable cap, distributor x 4 3. Control panel 4. Grill door 5. Shelf 6. Oven tray 7. Oven door glass 8. -
Page 8: First Time Use Of The Appliances
FIRST TIME USE OF THE APPLIANCE Preparing your appliance for the first time • Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. • New appliances can have an odour during first operation from components manufactured with the aid of oils It is recommended to ‘run in’... -
Page 9: Using The Oven
USING THE OVEN Oven safety warnings • Always follow the instructions for putting the shelves and side racks into the oven, to avoid accidents. • DO NOT line the oven with foil, it will damage the enamel coating. • DO NOT place cookware or anything else on the bottom of oven as trapped heat will damage the oven enamel coating. -
Page 10: Oven Shelf Location
OVEN SHELF LOCATION Oven cooking guide The following is intended as a guide only. It is often required to set oven 10-20 degrees above or below this guide to get the result you want. Also adjustments are needed for the cooking time to suit personal desired results. Also you should follow the recipe guide when setting temperature and times. - Page 11 USING THE OVEN Understanding cooking problems Problem Causes What to do Uneven cooking Incorrect shelf position Select shelf that puts food in centre of oven Oven tray too large Remove oven tray. Use smaller trays or dishes Trays not in centre Put trays in centre Oven fan causing uneven browning or small cakes Rotate food during cooking, or use...
-
Page 12: Using The Grill
USING THE GRILL Grill safety warnings • Always turn off the grill immediately after you have finished cooking and pull drawer out or remove grill tray otherwise fat left in the tray in the hot grill compartment will continue to smoke or could catch fire. •... -
Page 13: Using The Gas Burner
USING THE GAS BURNER The hob control knobs The symbols on the control knobs mean the following: No gas flow Maximum gas flow Minimum gas flow All operating positions must be set between the maximum and minimum flow settings, and never between the maximum setting and the closed position. -
Page 14: Fitting Oven Accessories And Cleaning
FITTING OVEN ACCESSORIES AND CLEANING Safety warnings about cleaning • Always make sure that the cooker is turned off before cleaning. • Always clean cooker immediately after use. • Do not use steam cleaners. These may cause moisture build-up. • Do not use caustic- based cleaners. - Page 15 Cleaning the gas hob Remove the trivets (Refer Figure 1) • The trivets locate in the recessed area of the hob. • They can be removed for cleaning by carefully lifting them from the hob. • Clean by washing in warm soapy water. Dry thoroughly. •...
- Page 16 Cleaning the oven door / How to remove the oven door For a more thorough clean, you can remove and disassemble the oven door. Proceed as follows: • Oven door structures 1 remove and assemble procedure: • Open the door to the full extent (fig.1); •...
-
Page 17: Replacing The Oven Light
REPLACING THE OVEN LIGHT • Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. • Disconnect the oven from the power supply at the fuse-box by means of the switch used to connect the appliance to the electrical mains. -
Page 18: Solving Problems
SOLVING PROBLEMS If you have a problem with your appliance, check the table below before calling service. You may be able to avoid a service call by and avoid unnecessary inconvenience and expense. For cooking problems, refer to Handling Baking Problems. NOTE: Only service centers should carry out servicing. -
Page 19: Installing Cooker - Power Connections
INSTALLING COOKER - POWER CONNECTIONS Electrical Connection The appliance is supplied fitted with a power cord and 3 pin plug. Install the cooker so that the plug is easily accessible. Plug the 3-pin plug into a properly earthed, 10A general purpose power outlet preferably on a separate dedicated circuit. -
Page 20: Installing The Gas Cooker
INSTALLING THE GAS COOKER Unpacking Do not fit the burner crowns, burner caps and trivets until after the cooker has been installed. Locating the cooker This appliance must be installed by an authorised person in accordance with this instruction manual, AS/NZS 5601 –... - Page 21 Connection to the gas supply The isolating manual shut-off valve connection point must be installed and accessible when the appliance is in position. Gas inlet is located at the top rear right hand side, 50mm from the edge. This appliance is suitable for connection with rigid pipe or flexible hose.
- Page 22 Safety warnings about installation • The cooker MUST BE installed and serviced only by an authorised person. • A certificate of compliance must be supplied by installer and is to be kept by the customer. • The packing materials must be removed before you install the cooker. •...
-
Page 23: Testing The Operation Of The Gas Cooker
TESTING THE OPERATION OF THE GAS COOKER Gas leakage and operation of the appliance must be tested by the installer before leaving. Check all burner flames are blue in colour, stable and completely ignite at both high and low flame settings with no appreciable yellow tipping, carbon deposition, lifting, floating, lighting back or objectionable odour. - Page 24 • Determine position of cooker and ant-tilt plate. • Securely fix the anti-tilt plate to the floor with appropriate fasteners. • Slide the cooker into the anti-tilt plate to double check. And then slide out the cooker. • Connect Electricity supply but do not turn on until installation is completed. •...
-
Page 25: Technical Specifications
TECHNICAL SPECIFICATIONS Model TFS54FC-DGW oven capacity (L) grill capacity (L) coltage (v) 220-240 frequency (Hz) 50-60 power (W) 1700W burner power (W) NG 39.88 MJ/h / LPG 38.88 MJ/h product dimension (mm) 540*630*910 package size (mm) 590*712*960 PG 25... -
Page 26: Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within: a) In the case of Technika Professional products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. - Page 27 MANUFACTURER GUARANTEE The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;...
- Page 28 MANUFACTURER GUARANTEE Warranty claims If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).
- Page 29 MANUFACTURER GUARANTEE READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE. The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual.
