C8051F30x
4. Target Board
The C8051F30x Development Kit includes a target board with a C8051F30x device pre-installed for evaluation and
preliminary software development. Numerous input/output (I/O) connections are provided to facilitate prototyping
using the target board. Refer to Figure 4 for the locations of the various I/O connectors.
P1
Power connector (accepts input from 7 to 15 VDC unregulated power adapter)
J1
34-pin Expansion I/O connector
J3
Port I/O Configuration Header
J4
DEBUG connector for Debug Adapter interface
J5
DB-9 connector for UART0 RS232 interface
J6
Analog I/O terminal block
J7
Low pass filter connector
J9, J10
External crystal enable connectors
6
Pin 1
Pin 2
J1
C8051F30x
J7
J6
Pin 1
I/O Connection Points

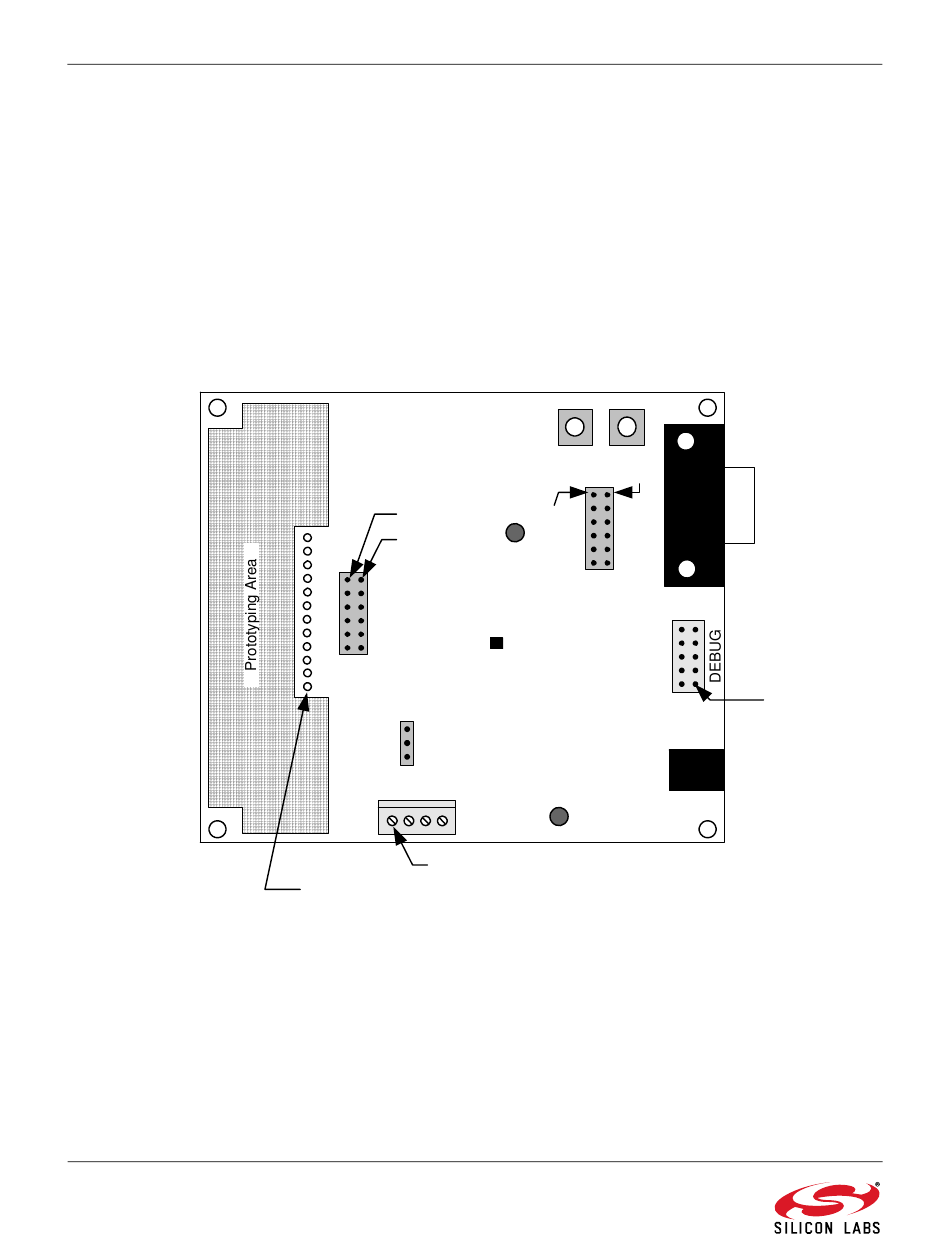

Figure 4. C8051F300 Target Board
Rev. 0.6
RESET P0.3
J5
Pin 2
J3
Pin 1
P0.2
J4
P1
PWR
Pin 1
