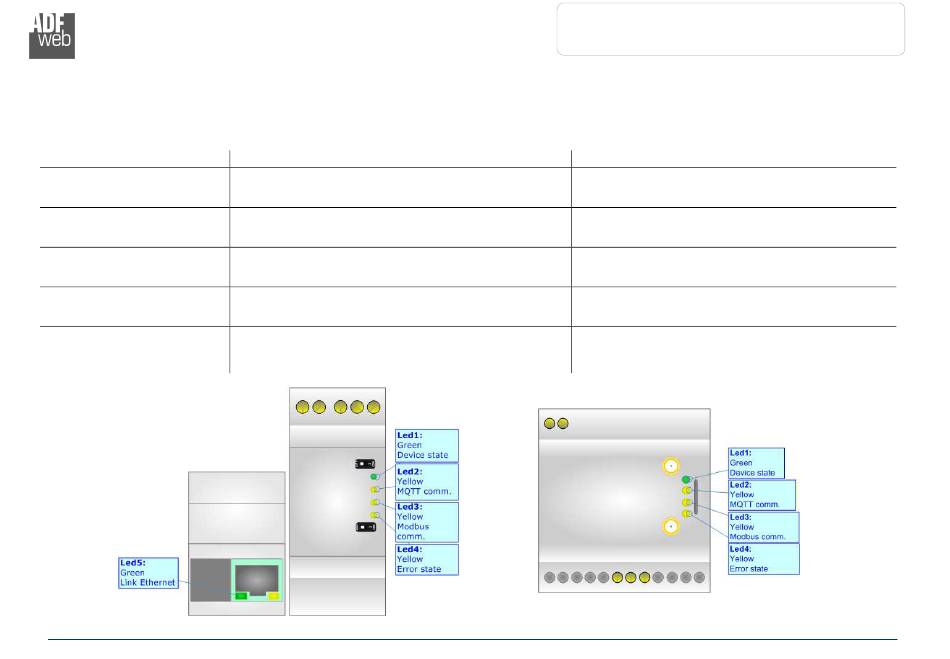

LEDS:
The device has got five LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: MQTT communication
(yellow)
3: Modbus communication
(yellow)
4:Modbus error (yellow)
5: Ethernet Link (green)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
Blinks when MQTT communication is running
Blinks when Modbus communication is running
Turns ON when an error occurs
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
User Manual Modbus Master / MQTT
Document code: MN67933_ENG Revision 1.101
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
