U-Line H-2733 Quick Start Manual

H-2733, H-2734

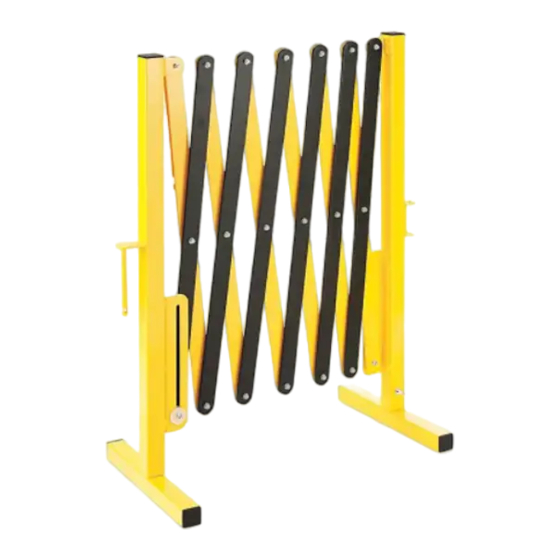

SAFETY BARRIER
Wing Screw x 2 Washer x 2
1. Remove wing screw
and washer from axle.
(See Figure 1)
2. Line up holes in axle
and gate, and insert
axle into end of gate.
(See Figure 2)
PAGE 1 OF 3
1-800-295-5510
uline.com
PARTS
Axle without Casters x 2
(For H-2733)
INSTALLATION
Figure 1
Wing
Screw
Figure 2
Gate
Axle
Axle with Casters x 2
(For H-2734)
3. Hand-tighten wing
screw and washer until
flush. (See Figure 3)
4. Repeat steps 1-3 for
second axle.
Para Español, vea página 2.
Pour le français, consulter la page 3.
Gate x 1
Figure 3
Wing
Screw
0621 IH-2733
