U-Line H-6239 Manual

π
LIGHT DUTY
GUARD RAILS

TOOLS NEEDED

3/8" Diameter 17 mm Wrench
Masonry Drill Bit
NOTE: Rails should be inserted into post pockets
before anchoring to ground.
1. Position posts in the approximate location required.

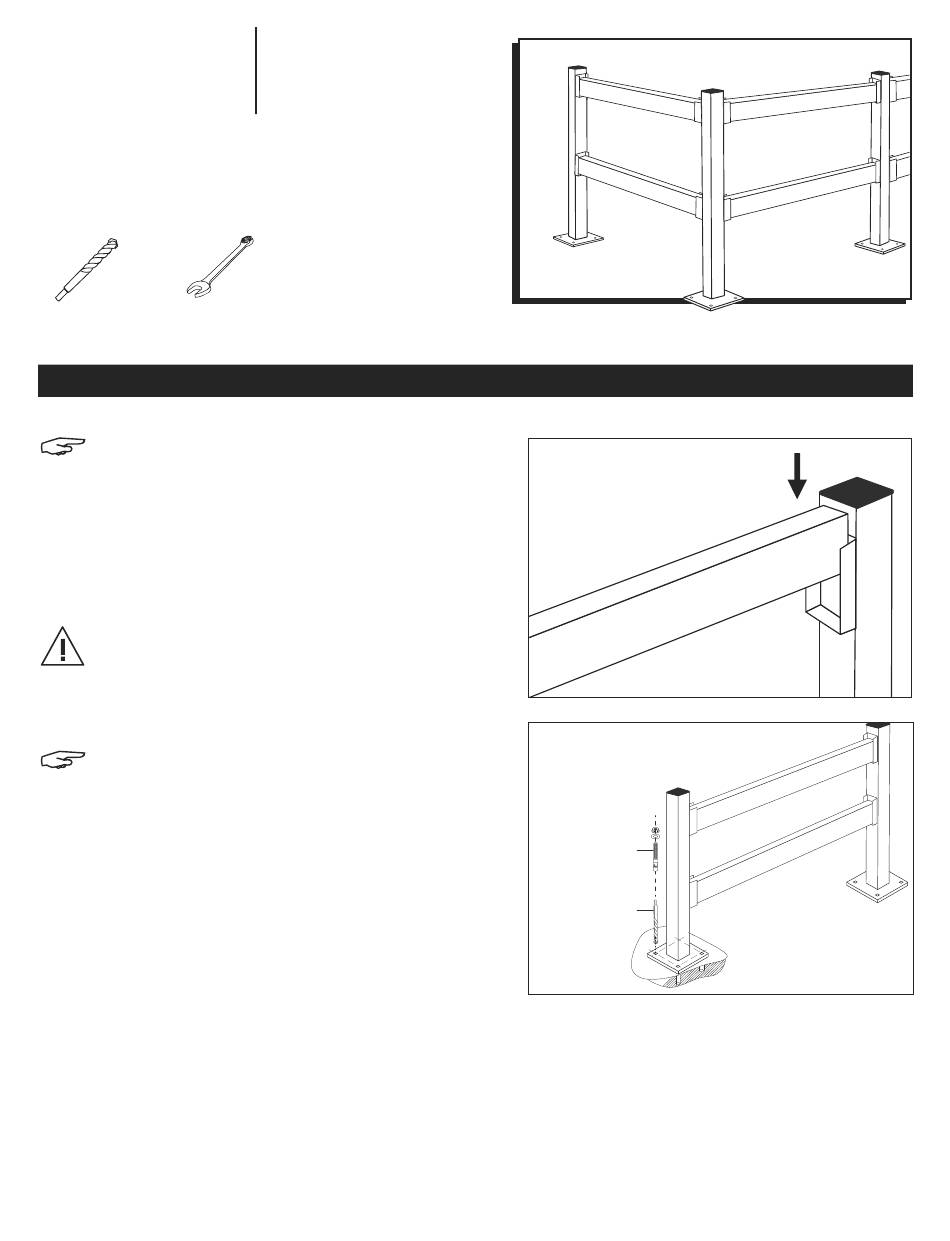

2. Insert all rails into posts pockets. (See Figure 1)
3. Verify the posts are positioned in the desired location.
Mark the floor where holes will be drilled.
CAUTION! Wear eye protection when completing
step 4.
4. Using a 3/8" diameter masonry drill bit, drill a hole
approximately 3" deep into the floor. (See Figure 2)
NOTE: For the anchor to function properly, the
hole must not be larger in diameter than the
anchor bolt.
5. Clean out debris and dust from inside the hole. Fully insert
the anchor bolt through the mounting plate and into the
hole.
6. Slightly tap down the anchor bolt with a hammer if
needed. Slide washer onto anchor bolt. Using 17 mm
wrench, tighten the hex nut until the anchor bolt is
secure.
7. Repeat for remaining anchors.
π
PAGE 1 OF 3 CHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA
1-800-295-5510
uline.com

INSTALLATION

Pour le français, consulter la page 3.
Figure 1
Figure 2
Anchor
Bolt
3/8"
Masonry
Drill Bit
Para Español, vea página 2.
1116 IH-6239
