π
H-6928

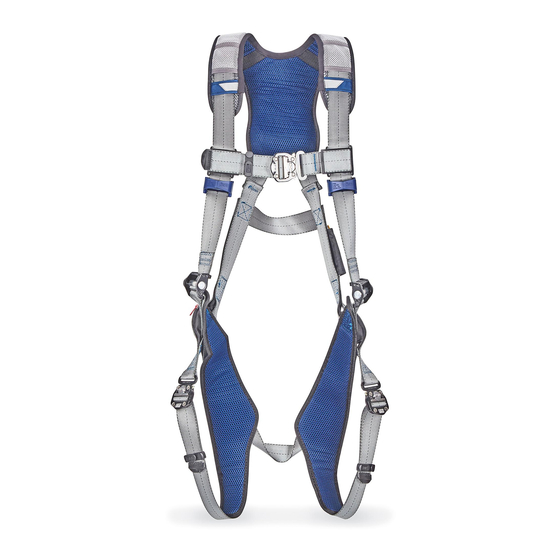

3M EXOFIT™ HARNESS
HOW TO DON A HARNESS
1.
Holding harness by back D-ring, ensure straps are unbuckled
and untwisted. (See Figure 1)
2. Slip straps over shoulders so back D-ring is located between
shoulder blades. (See Figure 2)
3. Pull leg straps between legs and buckle to corresponding
ends. Tighten leg straps until snug. (See Figure 3)
NOTE: Leg straps should not be too snug as to obstruct
blood circulation in legs.
4. Buckle chest strap so that it is positioned in mid-chest area.
If adjustable, tighten until snug. (See Figure 4)
NOTE: Chest strap should be 6-8" below the trachea,
but not below the sternum.
5. After buckling all straps, readjust harness fit as needed.
Secure excess strap in elastic loop keepers.
HARNESS CARE
When not in use, hang harness by back D-ring in order to
maintain shape.
NOTE: This chart serves only as a guideline
for harness sizing.
PAGE 1 OF 3
1-800-295-5510
uline.com
INSTRUCTIONS
SIZING CHART
6'8"
6'6"
6'4"
6'2"
6'0"
5'10"
5'8"
5'6"
5'4"
5'2"
5'0"
4'10"
Pour le français, consulter la page 3.
Figure 1
Figure 3
L
M
S
X-S
Weight – Lbs.
Para Español, vea página 2.
Figure 2
D-Ring
Figure 4
XXXL
XXL
XL
0621 IH-6928
