U-Line H-4618 Quick Start Manual

π
H-4618, H-4619
5 cHannel caBle
PROTecTOR

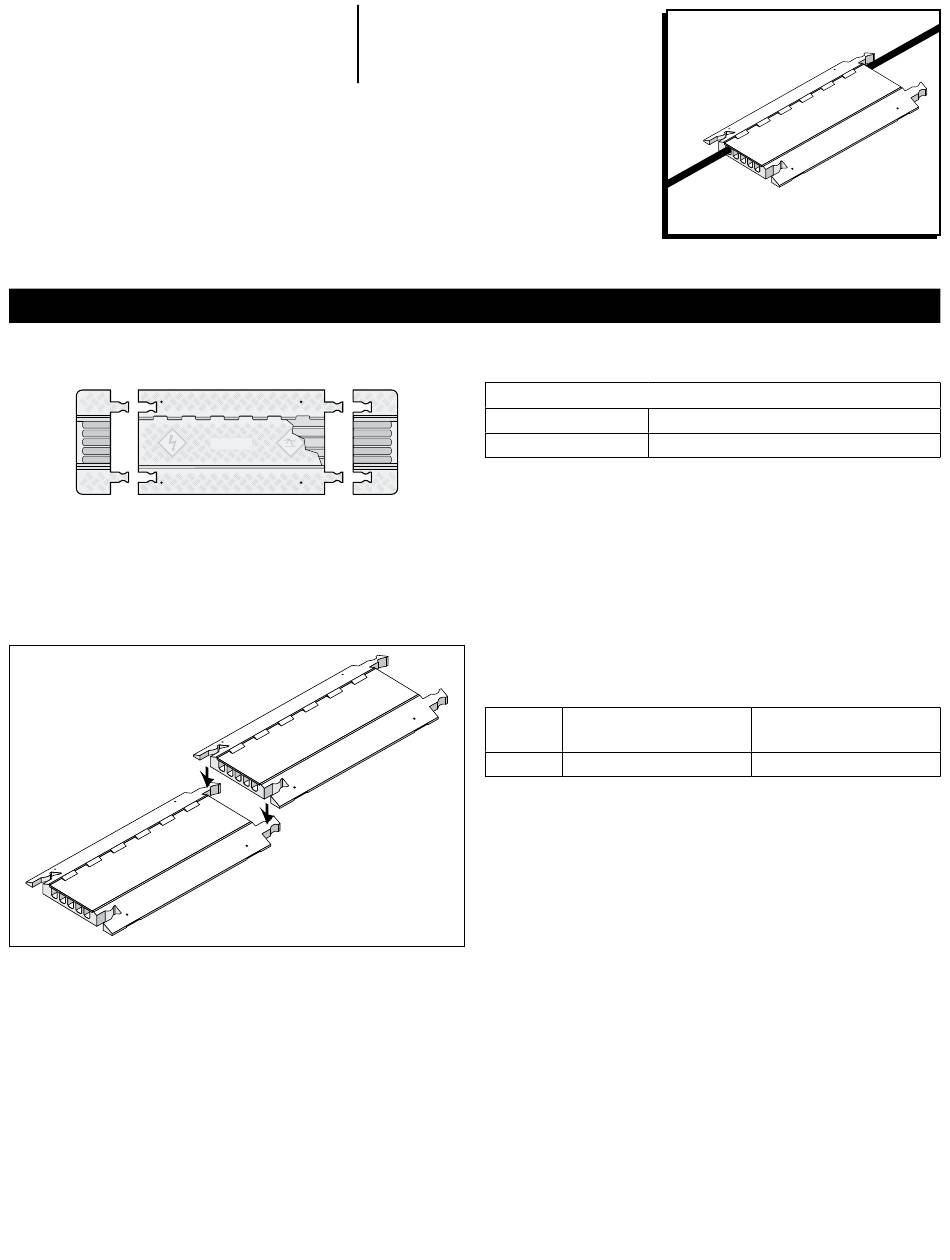

cOmPOnEnts

End cap 36" lineal Protector

AssEmbly

Interlock with dog-bone connectors to extend protection
length. (see Figure 1)
Figure 1
• Inspect areas for safety hazards.
• Assemble sections by aligning female connectors
over male connectors and press with foot to secure.
• Using through-holes, fasten protector to ground
(optional - see mounting Instructions).
• close cover flush with base.
• test installation for intended use.
• Periodically inspect installation.
PAGE 1 OF 2
1-800-295-5510
uline.com
instrUctions

cHAnnEl cAPAcIty

4 Outer channels
center channel

lOAd cAPAcIty

End cap
the 5 channel cable Protector has different load
supporting capabilities depending on type of vehicle
and temperature. suitability must be verified by testing
under actual conditions.
load-supporting capacity varies by type of loading
conditions and environmental conditions. the load
capacity decreases in warm environments. test before
use and inspect periodically.
model
no.
H-4618

OPErAtInG tEmPErAtUrE

-40° to 120°F (-40° to 48°c)

cHEmIcAl rEsIstAncE

tested for compatibility with common motor oils, gasoline
and diesel fuel. limited resistance to brake fluids and
other chemicals.

mAtErIAl

UV-stabilized polyurethane elastomer.
channel capacity - max. diameter inches
1.339" width x 1.325" height
1.704" width x 1.325" height
load capacity per tire
max load 70°F (21°c)
10,500 lbs.
load capacity per axle
max load 70°F (21°c)
21,000 lbs.
0214 IH-4618
