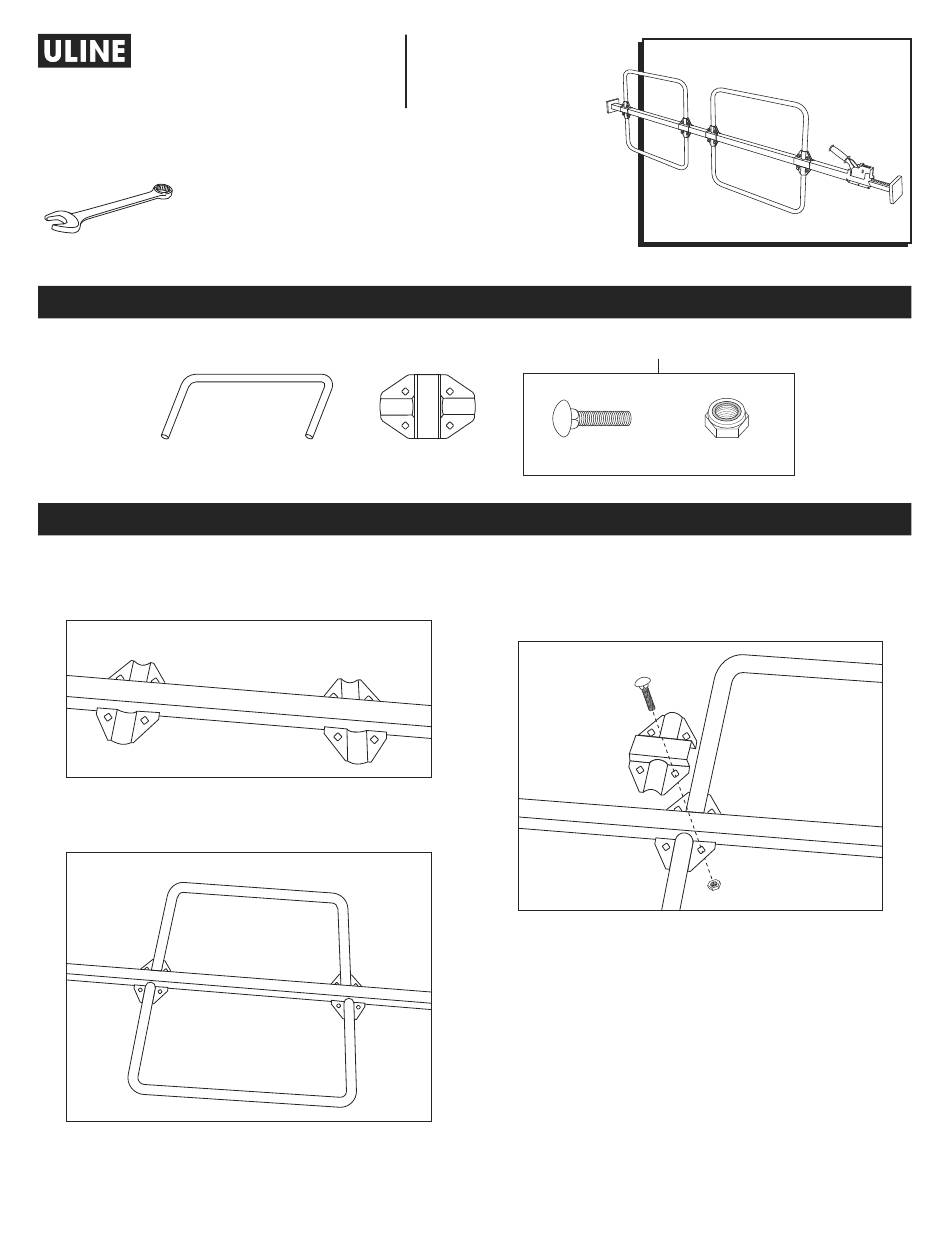

H-10803, H-10804
LOAD BAR WITH HOOPS
TOOL NEEDED
17 mm Wrench
1.
Determine hoop location on H-1413 load bar and
put brackets in place. (See Figure 1)
Figure 1
2. Insert hoops into brackets and confirm spacing.
(See Figure 2)
Figure 2
PAGE 1 OF 3
Hoop x 4
Bracket x 8
1-800-295-5510
uline.com
PARTS
Bolt x 16
ASSEMBLY
3. Place opposite bracket and secure with included
bolts and locknuts. Fully tighten with 17 mm wrench.
Repeat for remaining brackets. (See Figure 3)
Figure 3
Para Español, vea página 2.
Pour le français, consulter la page 3.
Hardware
Locknut x 16
0223 IH-10803
