- Page 1 E300 Pro GNSS RECEIVER USER GUIDE V2.2 1st Edition Shanghai eSurvey GNSS Co., Ltd.
- Page 3 SHANGHAI ESURVEY GNSS CO., LTD. Copyright © Shanghai eSurvey GNSS Co., Ltd. 2021. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Shanghai eSurvey GNSS Co., Ltd. Trademarks and Permissions and other eSurvey trademarks are trademarks of Shanghai eSurvey GNSS Co., Ltd.
- Page 4 SHANGHAI ESURVEY GNSS CO., LTD.
-
Page 5: Table Of Contents
SHANGHAI ESURVEY GNSS CO., LTD. Contents Before You Start ......................1 Precautions for Safe Operation ................1 1.1.1 Warning ......................1 1.1.2 Caution ......................1 Exemptions from Responsibility ................ 2 E300 at a Glance ......................3 Appearance ......................3 Indicator Light ...................... 3 Battery Indicator .................... - Page 6 SHANGHAI ESURVEY GNSS CO., LTD.
-
Page 7: Before You Start
Please do not use wet charger, defective power cable, socket or plug, and power cable not specified by e-Survey. Otherwise, fire or electric shock may occur. Please do not put the device close to burning gas or liquid, and do not put it in the fire or high temperature condition. -
Page 8: Exemptions From Responsibility
SHANGHAI ESURVEY GNSS CO., LTD. Exemptions from Responsibility You are expected to follow all operating instructions and regularly check the performance of this device. We assume no responsibility for any damage and loss of profits caused by the following conditions: ... -
Page 9: E300 At A Glance

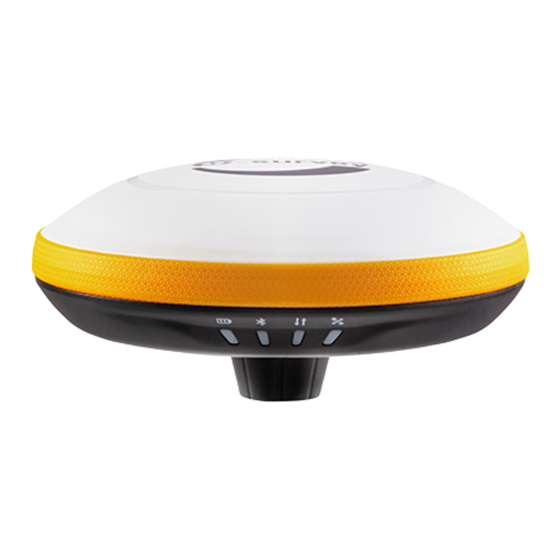

SHANGHAI ESURVEY GNSS CO., LTD. E300 at a Glance The E300 Pro main body is designed with magnesium alloy material to provide durable usage and better heat dispersion and light weight 940g. And when it's fully charged, it can continuously work for 12h. -
Page 10: Battery Indicator
SHANGHAI ESURVEY GNSS CO., LTD. Battery Indicator Through the battery indicator, you can know the battery level: Number of green indicator Battery level 75% - 100% 50% - 75% 25% - 50% 0% - 25% Power Button Through the power button, you can achieve the following: ... -
Page 11: Web Ui
SHANGHAI ESURVEY GNSS CO., LTD. Web UI The receiver WIFI can be used as a hotspot, and you can connect to the hotspot with you PC, smart phone or tablet. After connecting to the hotspot, you can manage working status, change working mode, configure basic settings, download raw data, update firmware and register device, etc. -
Page 12: Position
SHANGHAI ESURVEY GNSS CO., LTD. Position In Position page, you can view the following, and start and stop recording in static mode: System node Coordinates: longitude, latitude, and height Solution status Satellite number PDOP HDOP ... -
Page 13: Datalink
SHANGHAI ESURVEY GNSS CO., LTD. Datalink In Datalink page, you can check the current datalink:... -
Page 14: Satellites
SHANGHAI ESURVEY GNSS CO., LTD. Satellites In Satellites page, you can do the following: Set cut-off angle View satellites in table or skyplot... -
Page 15: Information
SHANGHAI ESURVEY GNSS CO., LTD. Information In Information page, you can view the following information: Receiver Antenna GNSS board Network UHF... -
Page 16: Working Mode
SHANGHAI ESURVEY GNSS CO., LTD. Working Mode In Working Mode page, you can configure the working mode, including base, rover and static:... -
Page 17: Satellite Settings
SHANGHAI ESURVEY GNSS CO., LTD. Satellite Settings In Satellite Setting page, you can do the following: Configure the satellites to be used, including GPS, GLONASS, Beidou, GALILEO, SBAS and QZSS. Set RTK timeout: with Hemisphere L-Band service, high accuracy can be still kept within the set timeout even if correction data loses. -
Page 18: Device Configuration
SHANGHAI ESURVEY GNSS CO., LTD. Device Configuration In Device Configuration page, you can do the following: Set time zone. Select whether to enable direct link mode, and IMU sensor data output. Set 5-pin serial port baud rate. ... -
Page 19: Nmea Message
SHANGHAI ESURVEY GNSS CO., LTD. NMEA Message In NMEA Message page, you can do the following: Configure NMEA data output through Bluetooth or 5-pin port. Select whether to enable automatic output GNSS PPP message. Select whether to enable external port output NMEA. ... -
Page 20: View Logs
SHANGHAI ESURVEY GNSS CO., LTD. View Logs In View Logs page, you can do the following for troubleshooting: View App logs and OS logs. Download files of App logs and OS logs. -
Page 21: Raw Data
SHANGHAI ESURVEY GNSS CO., LTD. 3.10 Raw Data In Raw Data page, you can do the following: Download raw data and NMEA data. Convert data to RINEX format. Download multiple files by checking the target files and clicking Package. -
Page 22: Backup Data
SHANGHAI ESURVEY GNSS CO., LTD. 3.11 Backup Data The points collected in SurPad software will be automatically backed up in receiver storage to avoid data loss. You can download the data for later use. In Backup Data page, you can do the following: ... -
Page 23: Management
SHANGHAI ESURVEY GNSS CO., LTD. 3.12 Management In Management page, you can do the following: Install new firmware. Register the device. Register the GNSS. Set security: to set password of web UI (192.168.10.1) and receiver WIFI. ... -
Page 24: Basic Operations
SHANGHAI ESURVEY GNSS CO., LTD. Basic Operations It introduces basic process of starting working with the device. Insert a SIM Card The device supports network working mode. To insert a SIM card, open the cover of nano SIM and insert a SIM card. Charge the Battery The device is equipped with Type-C charger which supports maximum 45W PD quick charge. -
Page 25: Measure Antenna Height
SHANGHAI ESURVEY GNSS CO., LTD. Measure Antenna Height Antenna height refers to the vertical distance between the phase center and the ground. Since the antenna height cannot be directly measured, it is automatically calculated by SurPad software based on the measured height you input and measurement type you select. -
Page 26: Start Tilt Measurement
SHANGHAI ESURVEY GNSS CO., LTD. Start Tilt Measurement The device can support both E-bubble and IMU, which is determined by the activation code and service you purchase, but you cannot use both of them at the same time. 4.6.1 Start E-bubble Tilt Measurement It is required when tilt measurement is used and E-bubble is used. - Page 27 SHANGHAI ESURVEY GNSS CO., LTD. 5. Change the inclined direction and repeat step 4 until 3 tilt points are collected. After 3 tilt points are collected, the following interface shows:...
- Page 28 SHANGHAI ESURVEY GNSS CO., LTD. 6. To save the result, press Save. The following interface shows:...
-
Page 29: Start Imu Tilt Measurement
SHANGHAI ESURVEY GNSS CO., LTD. 4.6.2 Start IMU Tilt Measurement It is required when tilt measurement is used and IMU is used. Before starting IMU tilt measurement, to enable IMU tilt measurement, in SurPad software, press main menu Device → Device Setting, and set tilt survey to Pole Tilt Correction. To start IMU tilt measurement in SurPad software, press main menu Survey →... -
Page 30: Internal Radio
SHANGHAI ESURVEY GNSS CO., LTD. Internal Radio E300 Pro is equipped with 1 W internal radio. You can select the transmission power from 0.5W or 1W. There are 8 default channel frequency in which channel 8 is changeable. With firmware updated, lots of protocols in survey industrial are supported. -
Page 31: Standard Accessories
SHANGHAI ESURVEY GNSS CO., LTD. Standard Accessories The standard accessories for the base station and rover station are as follows: Items Model Description Base Rover Picture Base √ √ Carrying Carry case Case (1) E300 GNSS √ √ Receiver Charger √... - Page 34 To be the leading provider of high-precision professional, solution & service in the global geospatial industry Shanghai eSurvey GNSS Co., Ltd. Address: Building 4, No.651 Wanfang Rd, Pujiang Town, Minhang District, Shanghai, China E-mail: Sales: info@esurvey-gnss.com Support: support@esurvey-gnss.com Hote-line: +86 21 54467213 Website: https://esurvey-gnss.com/...
