Summary of Contents for e-survey eRTK10

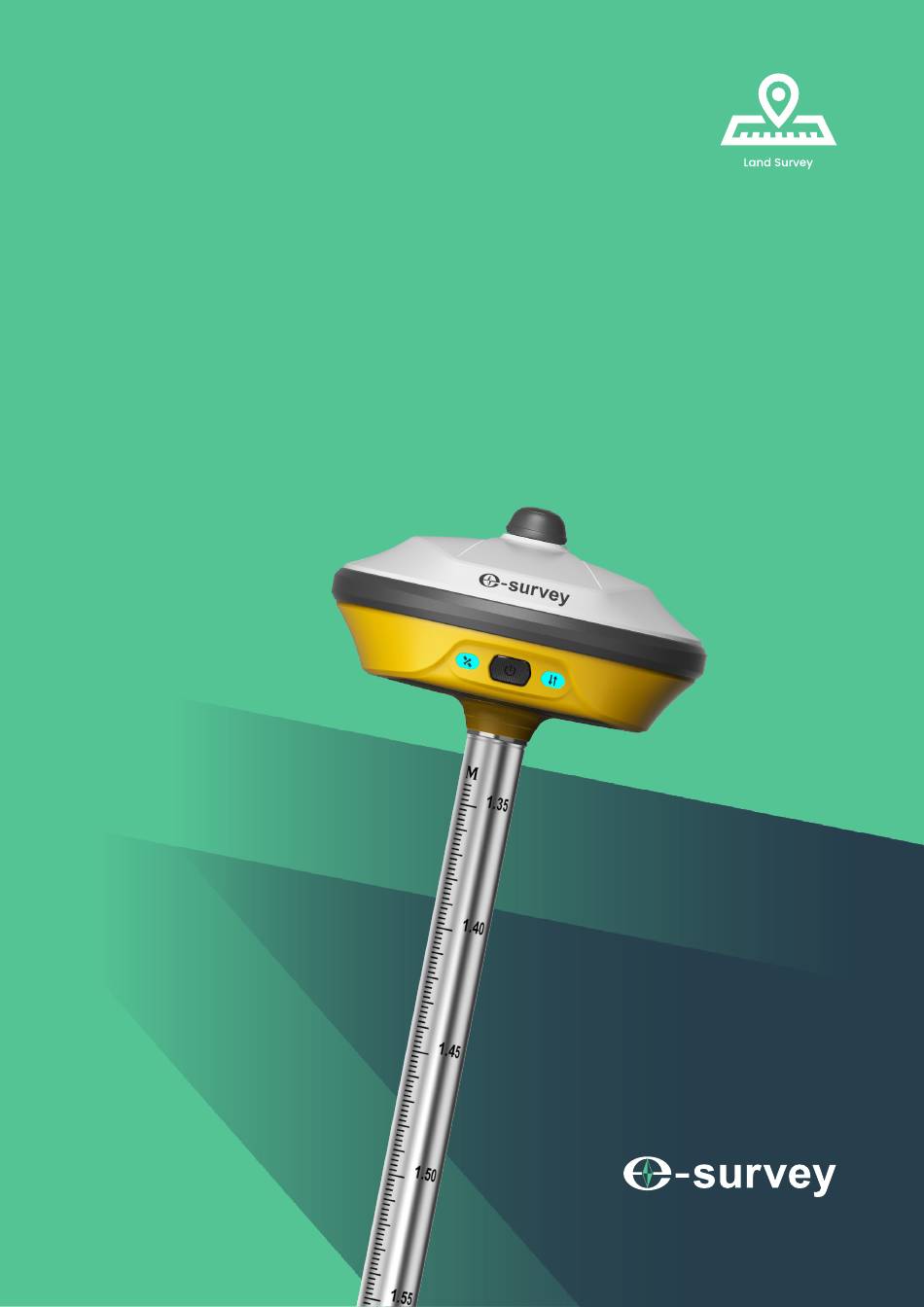

- Page 1 User Guide eRTK10 AR Visual Stakeout GNSS Receiver Shanghai eSurvey GNSS Co., Ltd.
- Page 2 SHANGHAI ESURVEY GNSS CO., LTD. Copyright © Shanghai eSurvey GNSS Co., Ltd. 2023. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Shanghai eSurvey GNSS Co., Ltd. Trademarks and Permissions and other eSurvey trademarks are trademarks of Shanghai eSurvey GNSS Co., Ltd.
- Page 3 SHANGHAI ESURVEY GNSS CO., LTD.
-
Page 4: Table Of Contents
Precautions for Safe Operation..............1 1.1.1 Warning ..........................1 1.1.2 Caution........................... 1 Exemptions from Responsibility ..............1 eRTK10 at a Glance ....................3 Appearance ....................3 Indicator Light ....................3 Power Button ....................3 Type-C ......................4 Web UI ........................5 Position ...................... - Page 5 SHANGHAI ESURVEY GNSS CO., LTD. AR Stakeout ....................21 Internal Radio ...................... 24 Standard Accessories ..................25...
-
Page 6: Before You Start
Ignoring this indication may possibly result in personal injury or property damage. 1.1.1 Warning Please do not disassemble the device. Otherwise, fire or electric shock may occur. Only e-Survey • authorized distributors can disassemble or rebuild the device. Please do not cover the charger when charging. Otherwise, fire may occur. - Page 7 SHANGHAI ESURVEY GNSS CO., LTD. • A faulty or intentional usage or misuse. Any disasters, such as earthquakes, storms, floods etc. • • A change of data, loss of data, an interruption of business etc. • Wrong transport. • Use of non-original parts. •...
-
Page 8: Ertk10 At A Glance

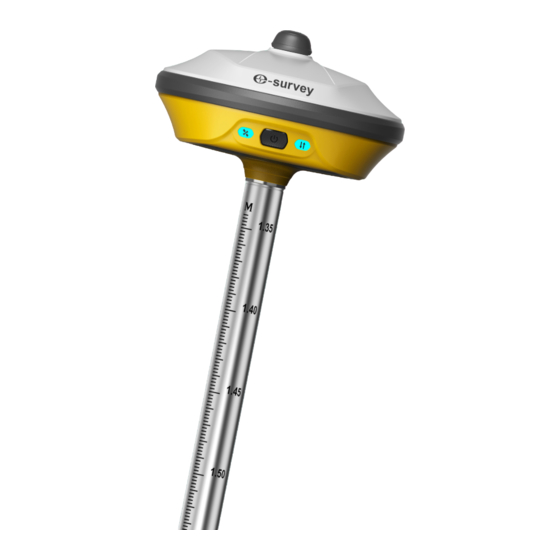

SHANGHAI ESURVEY GNSS CO., LTD. eRTK10 at a Glance The eRTK10 main body is designed with magnesium alloy material to provide durable usage and better heat dispersion and light weight 891 g. And when it's fully charged, it can continuously work for 10h. -
Page 9: Type-C
SHANGHAI ESURVEY GNSS CO., LTD. • Self-check: to troubleshoot the receiver when the receiver cannot work normally, long press the button for 2 seconds, release it until you hear the voice Power off?, and long press the button for 3 seconds until you hear the voice Self-check. -
Page 10: Web Ui
SHANGHAI ESURVEY GNSS CO., LTD. Web UI The receiver WIFI can be used as a hotspot, and you can connect to the hotspot with your PC, smart phone or tablet. After connecting to the hotspot, you can manage working status, change working mode, configure basic settings, download raw data, update firmware and register device, etc. -
Page 11: Position
SHANGHAI ESURVEY GNSS CO., LTD. Position In Position page, you can view the following, and start and stop recording in static mode: System mode • Coordinates: longitude, latitude, and height • • Solution status Satellite number • PDOP • HDOP •... -
Page 12: Datalink
SHANGHAI ESURVEY GNSS CO., LTD. Datalink In Datalink page, you can check the current datalink:... -
Page 13: Satellites
SHANGHAI ESURVEY GNSS CO., LTD. Satellites In Satellites page, you can do the following: • Set cut-off angle View satellites in table or skyplot •... -
Page 14: Information
SHANGHAI ESURVEY GNSS CO., LTD. Information In Information page, you can view the following information: • Receiver • Antenna •... -
Page 15: Working Mode
SHANGHAI ESURVEY GNSS CO., LTD. Working Mode In Working Mode page, you can configure the working mode, including rover and static:... -
Page 16: Satellite Settings
SHANGHAI ESURVEY GNSS CO., LTD. Satellite Settings In Satellite Setting page, you can do the following: • Configure the cutoff angle. • Configure the satellites to be used, including GPS, GLONASS, Beidou, GALILEO, SBAS and QZSS. • Set RTK timeout: high accuracy can be still kept within the set timeout even if correction data loses. -
Page 17: Device Configuration
SHANGHAI ESURVEY GNSS CO., LTD. Device Configuration In Device Configuration page, you can do the following: Set time zone. • Select whether to enable IMU sensor data output. • Select whether to enable speaker (smart voice broadcast). • Set naming method of static files. •... -
Page 18: Nmea Message
SHANGHAI ESURVEY GNSS CO., LTD. NMEA Message In NMEA Message page, you can do the following: Select data output. • Select whether to enable external port output NMEA. •... -
Page 19: View Logs
SHANGHAI ESURVEY GNSS CO., LTD. View Logs In View Logs page, you can do the following for troubleshooting: • View App logs and OS logs. Download files of App logs and OS logs. •... -
Page 20: Raw Data
SHANGHAI ESURVEY GNSS CO., LTD. 3.10 Raw Data In Raw Data page, you can do the following: Download raw data and NMEA data. • Convert data to RINEX format. • Download multiple files by checking the target files and clicking Package. •... -
Page 21: Management
SHANGHAI ESURVEY GNSS CO., LTD. 3.12 Management In Management page, you can do the following: Install new firmware. • Register the device. • Register the GNSS. • Set security: to set password of web UI (192.168.10.1) and receiver WIFI. • Format the internal disk. -
Page 22: Basic Operations
SHANGHAI ESURVEY GNSS CO., LTD. Basic Operations Charge the Battery The device is equipped with Type-C charger which supports maximum 20W PD quick charge. It takes about 5 hours to fully charge the battery: Flashing Green: connected to the charger and is charging. •... - Page 23 SHANGHAI ESURVEY GNSS CO., LTD. • h: the vertical height from the phase center to the ground. s: the slant height from the measuring line to the ground. • • a: the pole height, that is, the vertical height from the ground to the device bottom. To measure antenna height, do one of the following: Set the measured height to the slant height and measurement type to slant height.
-
Page 24: Start Tilt Measurement
SHANGHAI ESURVEY GNSS CO., LTD. Start Tilt Measurement The device support IMU function, which is determined by the activation code and service you purchase. It is required when tilt measurement is used and IMU is used. Before starting IMU tilt measurement, to enable IMU tilt measurement, in SurPad software, press main menu Device→Device Setting, and set tilt survey to Pole Tilt Correction. -
Page 25: Point Stakeout
Press main menu Survey→Point Stakeout, Press the icon to enter Display Information, set the Default Stakeout Mode. General Stakeout Before General Stakeout, please make sure the eRTK10 is set rover and under fixed solution. Press main menu Survey→Point Stakeout to enter General Stakeout page. - Page 26 Do the stakeout according to the direction and distance. AR Stakeout Before AR stakeout, please pay attention to the following configurations: The Communication mode for the phone and the eRTK10 is WIFI. • The eRTK10 is set as rover and under fixed solution.
- Page 27 SHANGHAI ESURVEY GNSS CO., LTD. If General Stakeout mode is set default, you need to press the icon to enter AR Stakeout mode. If the current communication mode is Bluetooth, SurPad will prompt "The host AR lofting function needs to be switched to WIFI to connect RTK".
- Page 28 In AR stakeout page, do the stakeout according to the direction line, distance, and the ball mark. Make sure that the eRTK10 camera and the phone camera is in the same direction, so as to avoid inaccurate direction displayed and the screen being blocked by the arm.
- Page 29 SHANGHAI ESURVEY GNSS CO., LTD. Internal Radio The device is equipped with 1 W internal radio. You can select the transmission power from 0.5 W or 1 W. There are 8 default channel frequency in which channel 8 is changeable. With firmware updated, lots of protocols in survey industrial are supported.
- Page 30 SHANGHAI ESURVEY GNSS CO., LTD. Standard Accessories The standard accessories are as follows: Items Description Picture Soft Bag (1) eRTK10 GNSS Receiver (1) Charger (1) Type-C port, UK/America/Europe/Australia Power Cable (1) Type-C to Type-C UHF Antenna (1) 420~450 MHz Measuring tape (1)
- Page 31 +86 400-999-8088 Website Social media...
