- Page 1 E300 Pro User Manual E300 Pro GNSS Receiver User Manual V2.0_202011 Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com...
-
Page 2: Table Of Contents
E300 Pro User Manual Contents Introduction ......................1 Appearance ....................1 Indicator ......................1 Interface ......................2 Pin definition ....................2 Power button ....................3 Web User Interface ....................3 Position ......................3 Satellites ......................4 Information ....................4 Working Mode ....................5 Satellite Setting ..................... -
Page 3: Introduction

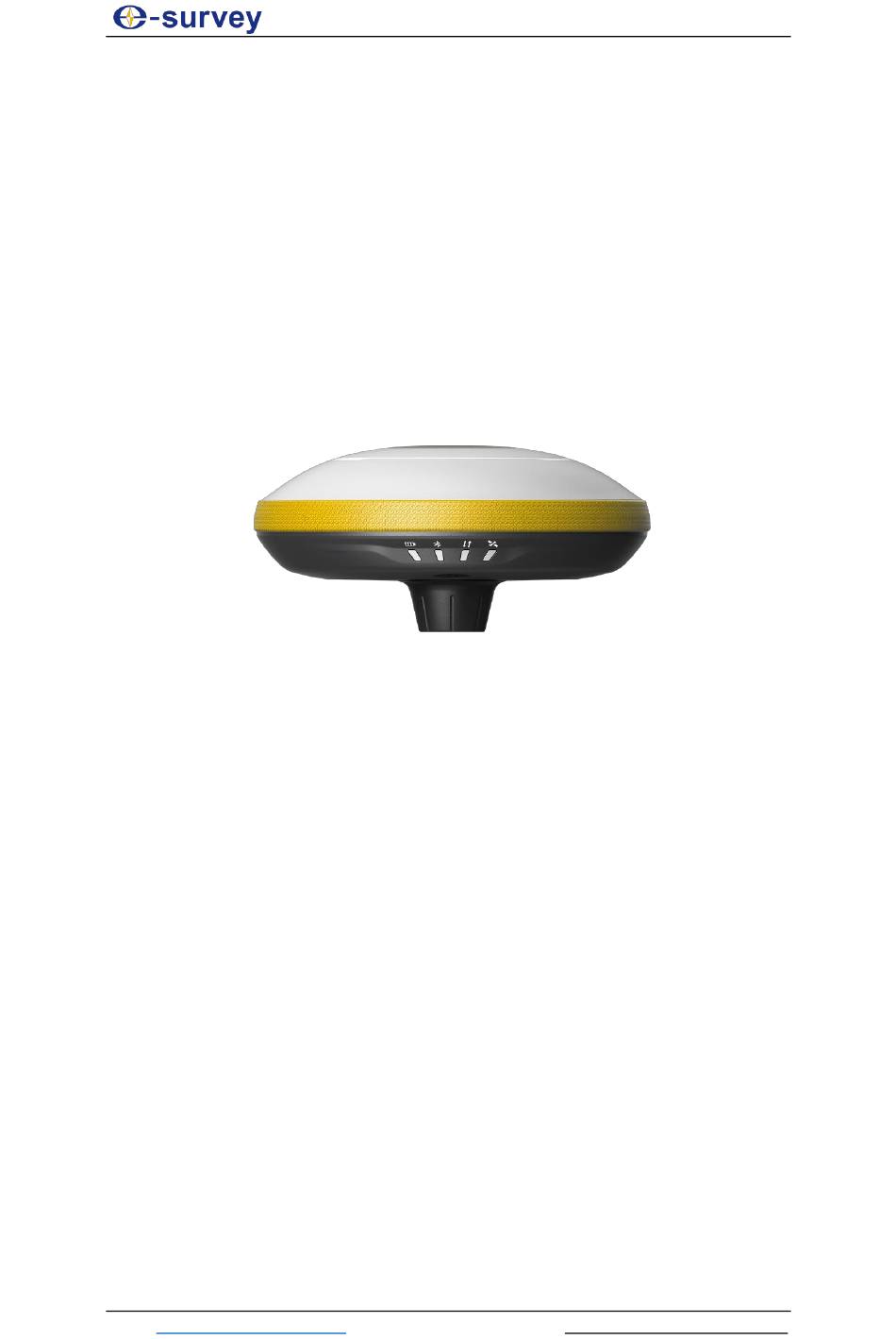

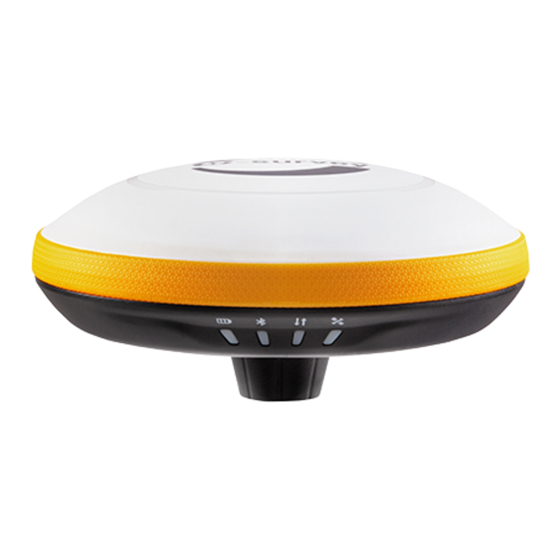

E300 Pro User Manual 1. Introduction This is the user manual for survey E300 Pro GNSS receiver. It gives basic description and operation guide which may help user to operate device properly. 1.1 Appearance The E300 Pro main body is designed with magnesium alloy material to provide durable usage and better heat dispersion as well as light weight 940g. -
Page 4: Interface
E300 Pro User Manual 1.3 Interface E300 Pro GNSS receive bottom interface is shown as below. The 5-pin port is used to connect external radio and external power, or output NMEA messages. Type-C port can be used for data download (internal storage access) or charging. -
Page 5: Power Button
E300 Pro User Manual 1.5 Power button There is a power button on E300 Pro control panel, the main function as below: Long press button for three seconds to power on Power On receiver, all the indicators will on. Long press button for two seconds then release, Power Off will hear the voice “Power off?”... -
Page 6: Satellites
E300 Pro User Manual 2.2 Satellites View satellite list and satellite map, set cut-off angle. 2.3 Information View receiver information: firmware version, GNSS board, and network module. Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 7: Working Mode
E300 Pro User Manual 2.4 Working Mode Configurate working mode: base, rover or static. 2.5 Satellite Setting Configurate the satellites to be used. “RTK Timeout” setting is for aRTK service (With Hemisphere L-Band service, user cans still keep high accuracy for a period when correction data loses). -
Page 8: Device Configuration
E300 Pro User Manual 2.6 Device Configuration Configurate receiver settings: User can set time zone. Sensor means MEMS sensor data output. Also, the 5-pin port baud rate is changeable. Speaker “Smart voice broadcast” can be disabled. When SIM card is insert and “WIFI share network” is enabled, PC can surf the internet when connected to device hotspot by using SIM data. -
Page 9: View Logs
E300 Pro User Manual 2.8 View Logs The log files can be used to diagnose issues. Click “download” to download the files. 2.9 Raw Data Download raw data or convert data to RINEX format. User can use check box, then click “Package”... -
Page 10: Backup Data
E300 Pro User Manual 2.10 Backup Data The points collected in SurPad4.0 will be backup in receiver storage automatically to avoid data loss. Can restore the data to SurPad software. 2.11 Management User can update receiver and GNSS firmware as well as register device, format internal disk, restore factory setting, restart device. -
Page 11: Basic Operation
E300 Pro User Manual 3. Basic Operation This part shows user some basic operations to start working with E300 Pro. 3.1 Insert SIM card E300 Pro supports network working mode. Open the cover and insert SIM card. 3.2 Charge the battery E300 Pro is equipped with Type-C charger which support maximum 45w PD quick charge. -
Page 12: Sensor
E300 Pro User Manual 3.5 Sensor The new E100 supports E-bubble and MEMS. It is determined by the activation code for which sensor is activated. Please note only one of the sensors can be activated. If you purchase E-bubble code, you can update to MEMS later by contacting with salesman. - Page 13 E300 Pro User Manual Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com...
-
Page 14: Internal Radio
E300 Pro User Manual 4. Internal Radio E300 Pro is equipped with 1-watt internal radio. User can select the transmission power 0.5 watt or 1 watt. There are 8 default channel frequency and the frequency of channel “8” is changeable. With new firmware update, lots of mainly used protocols in survey industrial are supported. -
Page 15: Standard Accessories
E300 Pro User Manual 5. Standard Accessories E300 Pro base and rover are using the same hard carrying case. Base: Rover: Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 16: Technical Specifications
E300 Pro User Manual 6. Technical Specifications Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 17: Warranty Policy
If it is a non-warranty product, and the repair center will handle the maintenance of the extra- fee. After the device is repaired, the same fault is con- firmed by the repair center and e-survey will provide a 3-month free warranty service. - Page 18 E300 Pro User Manual Damage to the product is caused by external, including but not limited to, abnormal and unpredictable factors such as satellite systems, geomagnetism, static electricity, physical pressure, etc. Damage caused by force majeure such as earth- quakes, floods, wars, etc.
