- Page 1 E800 User Manual E800 GNSS Receiver User Manual V2.0_202011 Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com...
-
Page 2: Table Of Contents
E800 User Manual Contents Introduction ......................1 Appearance ....................1 Indicator ......................1 Interface ......................2 Pin definition ....................2 Power button ....................2 Touch Screen ....................3 1.6.1 Main Screen ..................3 1.6.2 Device Information ................3 1.6.3 Work Mode Setting ................3 Web User Interface .................... - Page 3 E800 User Manual Technical Specifications ..................15 E800 (P40 Version) ..................15 E800 (BD990 Version) ................. 16 Warranty Policy ....................17 Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com...
-
Page 4: Introduction

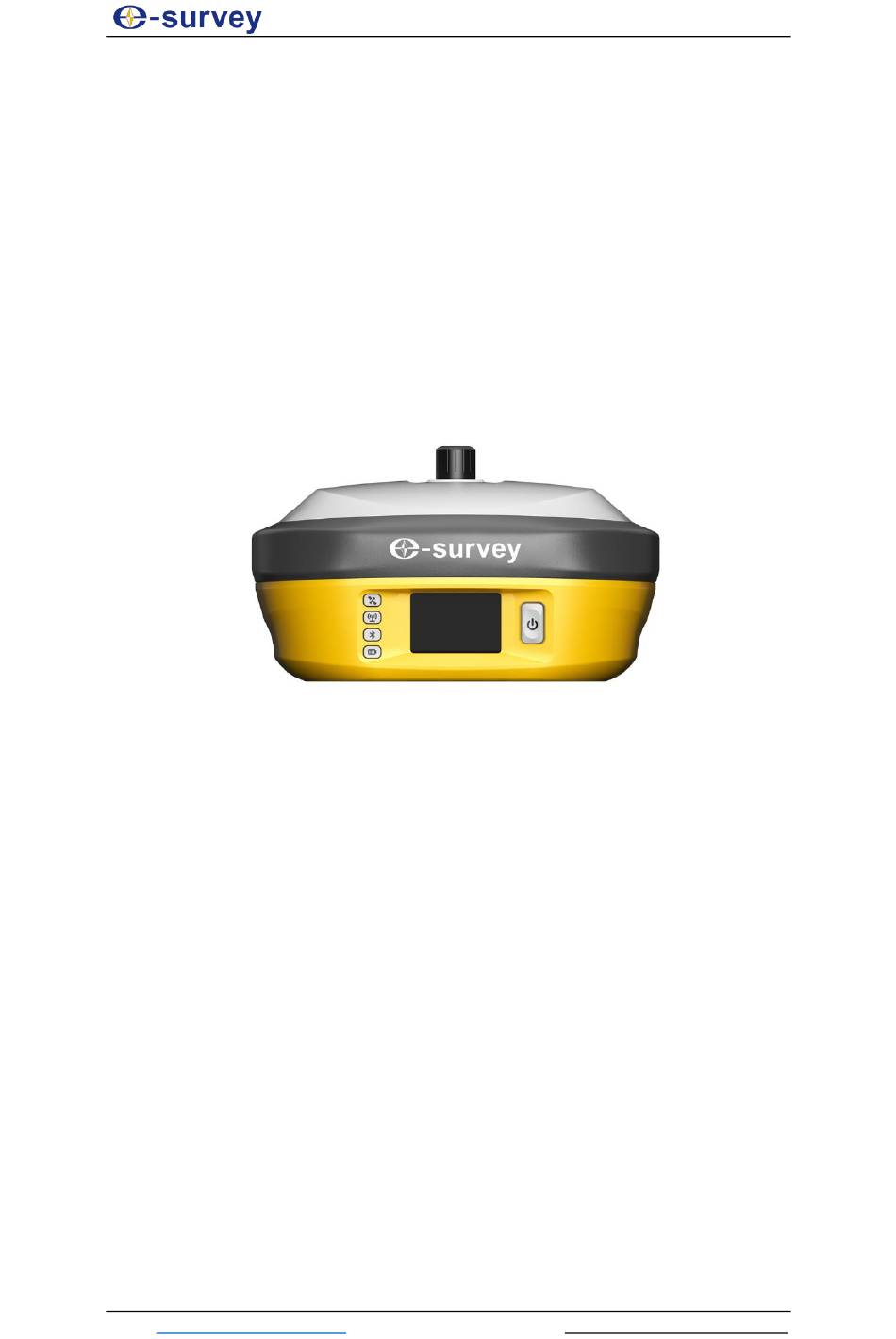

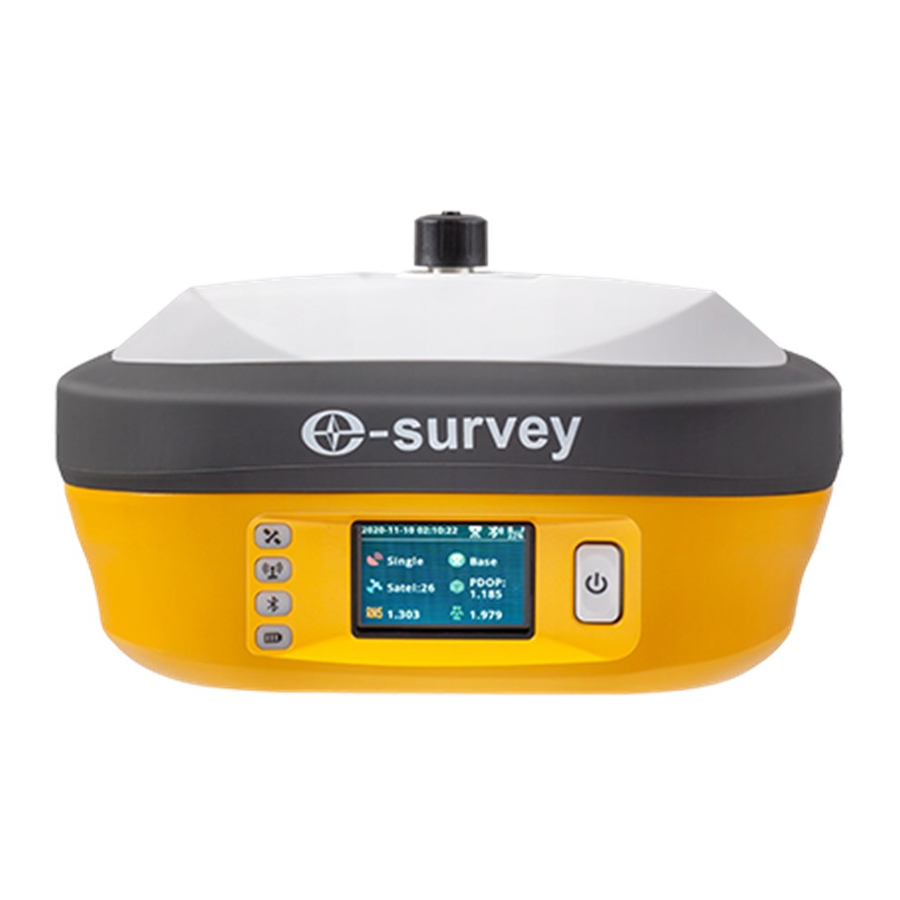

E800 User Manual 1. Introduction This is the user manual for survey E800 GNSS receiver. It gives basic description and operation guide which may help user to operate device properly. 1.1 Appearance The E800 main body is designed with magnesium alloy material to provide durable usage and better heat dispersion. -
Page 5: Interface
E800 User Manual 1.3 Interface E800 GNSS receive bottom interface is shown as below. The 5-pin port is used to connect external radio and external power, or output NMEA messages. Type-C port can be used for data download (internal storage access) or charging. -
Page 6: Touch Screen
“self- check”. 1.6 Touch Screen E800 1.45” colorful screen supports touch operation. User can view device status or operate device by simply touch the screen. The screen includes three parts: the main page, device information and work mode setting. -
Page 7: Web User Interface
E800 User Manual Rover Change to rover setting Channel: Channel frequency Radio Power: Low(2W)/High(5W) Datalink Protocol: Radio Protocol GPRS Auto APN: Yes/No External Radio Baud Rate Diff Diff Mode Available in base mode Backlight Time Setting Setting Language: wait for 3 seconds to apply setting 2. -
Page 8: Satellites
E800 User Manual 2.2 Satellites View satellite list and satellite map, set cut-off angle. 2.3 Information View receiver information: firmware version, GNSS board, and network module. Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 9: Working Mode
E800 User Manual 2.4 Working Mode Configurate working mode: base, rover or static. 2.5 Satellite Setting Configurate the satellites to be used. Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 10: Device Configuration
E800 User Manual 2.6 Device Configuration Configurate receiver settings: User can set time zone. Sensor means MEMS sensor data output. Also, the 5-pin port baud rate is changeable. Speaker “Smart voice broadcast” can be disabled. Base Alert is enabled, the rover will receive message when base is moved. -
Page 11: View Logs
E800 User Manual 2.8 View Logs The log files can be used to diagnose issues. Click “download” to download the files. 2.9 Raw Data Download raw data or convert data to RINEX format. User can use check box, then click “Package” to download multiple files. -
Page 12: Backup Data
E800 User Manual 2.10 Backup Data The points collected in SurPad4.0 will be backup in receiver storage automatically to avoid data loss. Can restore the data to SurPad software. 2.11 Management User can update receiver and GNSS firmware as well as register device, format internal disk, restore factory setting, restart device. -
Page 13: Basic Operation
This part shows user some basic operations to start working with E800. 3.1 Insert SIM card E800 supports network working mode. Open the cover and insert Micro SIM card. 3.2 Charge the battery E800 is equipped with Type-C charger which support maximum 45w PD quick charge. -
Page 14: Sensor
E800 User Manual 3.5 Sensor The new E100 supports E-bubble and MEMS. It is determined by the activation code for which sensor is activated. Please note only one of the sensors can be activated. If you purchase E-bubble code, you can update to MEMS later by contacting with salesman. - Page 15 E800 User Manual Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com...
-
Page 16: Internal Radio
E800 User Manual 4. Internal Radio E800 is equipped with 5-watt internal radio. User can select the transmission power 2 watt (Low) or 5 watt (High). There are 8 default channel frequency and the frequency of channel “8” is changeable. With new firmware update, lots of mainly used protocols in survey industrial are supported. -
Page 17: Standard Accessories
E800 User Manual 5. Standard Accessories E800 base and rover are using the same hard carrying case. Base: Rover: Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 18: Technical Specifications
E800 User Manual 6. Technical Specifications 6.1 E800 (P40 Version) Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 19: E800 (Bd990 Version)
E800 User Manual 6.2 E800 (BD990 Version) Web: www.esurvey-gnss.com Email: support@esurvey-gnss.com... -
Page 20: Warranty Policy
If it is a non-warranty product, and the repair center will handle the maintenance of the extra- fee. After the device is repaired, the same fault is con- firmed by the repair center and e-survey will provide a 3-month free warranty service. - Page 21 E800 User Manual Damage to the product is caused by external, including but not limited to, abnormal and unpredictable factors such as satellite systems, geomagnetism, static electricity, physical pressure, etc. Damage caused by force majeure such as earth- quakes, floods, wars, etc.
