  • Page 1 E800 GNSS RECEIVER USER GUIDE V3.1 1st Edition Shanghai eSurvey GNSS Co., Ltd.
  • Page 3 SHANGHAI ESURVEY GNSS CO., LTD. Copyright Copyright © Shanghai eSurvey GNSS Co., Ltd. 2021. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Shanghai eSurvey GNSS Co., Ltd. Trademarks and Permissions and other eSurvey trademarks are trademarks of Shanghai eSurvey GNSS Co., Ltd.
  • Page 4 SHANGHAI ESURVEY GNSS CO., LTD.

  • Page 5: Table Of Contents

    Precautions for Safe Operation ................1 1.1.1 Warning ......................1 1.1.2 Caution ......................1 Exemptions from Responsibility................2 E800 at a Glance ......................3 Appearance ......................3 Power Button ....................... 3 Indicator Light ...................... 3 Touch Screen ....................... 4 2.4.1 Main Screen ....................
  • Page 6 SHANGHAI ESURVEY GNSS CO., LTD.

  • Page 7: Before You Start

     Please do not use wet charger, defective power cable, socket or plug, and power cable not specified by e-Survey. Otherwise, fire or electric shock may occur.  Please do not put the device close to burning gas or liquid, and do not put it in the fire or high temperature condition.

  • Page 8: Exemptions From Responsibility

    SHANGHAI ESURVEY GNSS CO., LTD. Exemptions from Responsibility You are expected to follow all operating instructions and regularly check the performance of this device. We assume no responsibility for any damage and loss of profits caused by the following conditions: ...

  • Page 9: E800 At A Glance

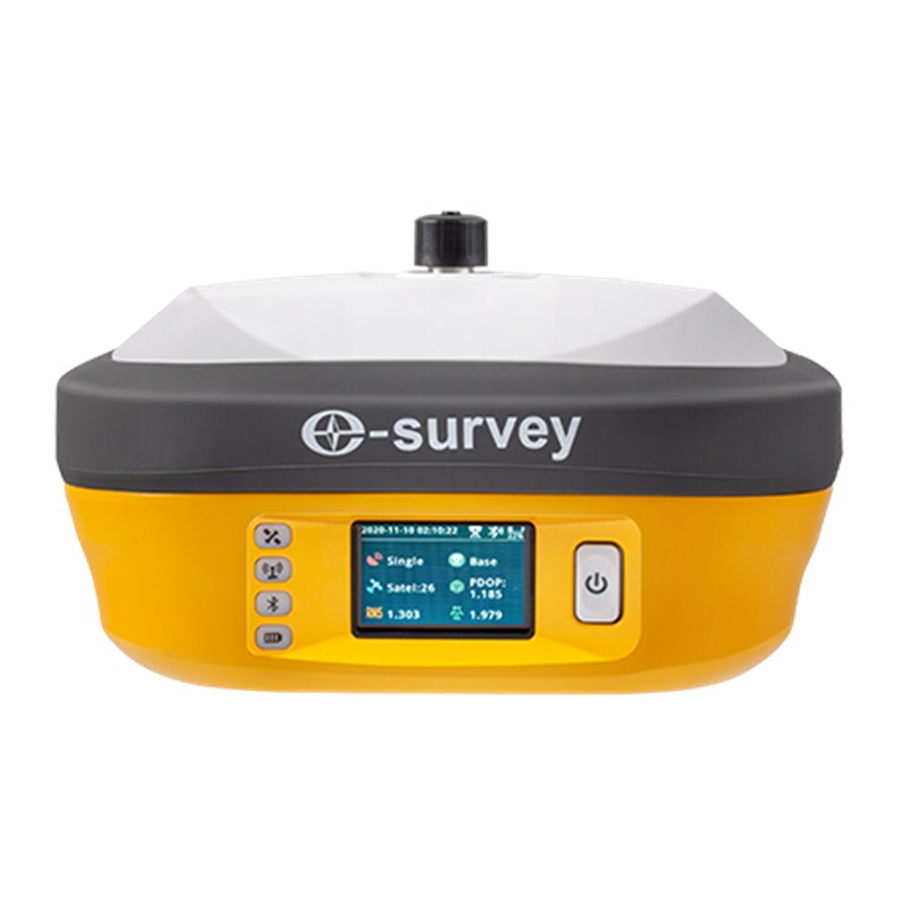

    SHANGHAI ESURVEY GNSS CO., LTD. E800 at a Glance The E800 is designed with magnesium alloy material to provide durable usage and better heat dispersion, and it is equipped with 1.45'' touch screen and 5 W internal radio. Appearance The E800 main body is as follows:...

  • Page 10: Touch Screen

    SHANGHAI ESURVEY GNSS CO., LTD.  Datalink status o Green: datalink is ready to start. o Flashing green: datalink is transmitting data normally. o Flashing blue: light flashes according to the interval with raw data recording enabled.  Bluetooth status o Off: Bluetooth not connected.

  • Page 11: Work Mode Setting

    SHANGHAI ESURVEY GNSS CO., LTD. 2.4.3 Work Mode Setting You can slide the touch screen to the left to do the following:  Start Rec / Stop Rec  Mode o Static: to set the sample interval (including 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz, 50 Hz, 2 seconds, 5 seconds, 10 seconds, 15 seconds, 30 seconds and 60 seconds), cut-off angle (including 0, 0.5, 1, 1.5, 2, 2.5, 3, 3.5, 4 and 4.5), and enable / disable automatic recording.

  • Page 12: Web Ui

    SHANGHAI ESURVEY GNSS CO., LTD. Web UI The receiver WIFI can be used as a hotspot, and you can connect to the hotspot with you PC, smart phone or tablet. After connecting to the hotspot, you can manage working status, change working mode, configure basic settings, download raw data, update firmware and register device, etc.

  • Page 13: Position

    SHANGHAI ESURVEY GNSS CO., LTD. Position In Position page, you can view the following, and start and stop recording in static mode:  System node  Coordinates: longitude, latitude, and height  Solution status  Satellite number  PDOP  HDOP ...

  • Page 14: Datalink

    SHANGHAI ESURVEY GNSS CO., LTD. Datalink In Datalink page, you can check the current datalink:...

  • Page 15: Satellites

    SHANGHAI ESURVEY GNSS CO., LTD. Satellites In Satellites page, you can do the following:  Set cut-off angle.  View satellites in table or skyplot.

  • Page 16: Information

    SHANGHAI ESURVEY GNSS CO., LTD. Information In Information page, you can view the following information:  Receiver  Antenna  GNSS board  Network  UHF...

  • Page 17: Working Mode

    SHANGHAI ESURVEY GNSS CO., LTD. Working Mode In Working Mode page, you can configure the working mode, including base, rover and static:...

  • Page 18: Satellite Settings

    SHANGHAI ESURVEY GNSS CO., LTD. Satellite Settings In Satellite Setting page, you can do the following:  Configure the satellites to be used, including GPS, GLONASS, Beidou, GALILEO, SBAS and QZSS.  Set RTK timeout: with Hemisphere L-Band service, high accuracy can be still kept within the set timeout even if correction data loses.

  • Page 19: Device Configuration

    SHANGHAI ESURVEY GNSS CO., LTD. Device Configuration In Device Configuration page, you can do the following:  Set time zone.  Select whether to enable direct link mode, and IMU sensor data output.  Set 5-pin serial port baud rate. ...

  • Page 20: Nmea Message

    SHANGHAI ESURVEY GNSS CO., LTD. NMEA Message In NMEA Message page, you can do the following:  Configure NMEA data output through Bluetooth or 5-pin port.  Select whether to enable automatic output GNSS PPP message.  Select whether to enable external port output NMEA. ...

  • Page 21: View Logs

    SHANGHAI ESURVEY GNSS CO., LTD. View Logs In View Logs page, you can do the following for troubleshooting:  View App logs and OS logs.  Download files of App logs and OS logs.

  • Page 22: Raw Data

    SHANGHAI ESURVEY GNSS CO., LTD. 3.10 Raw Data In Raw Data page, you can do the following:  Download raw data and NMEA data.  Convert data to RINEX format.  Download multiple files by checking the target files and clicking Package.

  • Page 23: Backup Data

    SHANGHAI ESURVEY GNSS CO., LTD. 3.11 Backup Data The points collected in SurPad software will be automatically backed up in the receiver storage to avoid data loss. You can download the data for later use. In Backup Data page, you can do the following: ...

  • Page 24: Management

    SHANGHAI ESURVEY GNSS CO., LTD. 3.12 Management In Management page, you can do the following:  Install new firmware.  Register the device.  Register the GNSS.  Set security: to set password of web UI (192.168.10.1) and receiver WIFI. ...

  • Page 25: Basic Operations

    SHANGHAI ESURVEY GNSS CO., LTD. Basic Operations It introduces basic process of starting working with the device. Insert a SIM Card The device supports network working mode. To insert a SIM card, open the cover of nano SIM and insert a SIM card. Charge the Battery The device is equipped with Type-C charger which supports maximum 45W PD quick charge.

  • Page 26: Measure Antenna Height

    SHANGHAI ESURVEY GNSS CO., LTD. Measure Antenna Height Antenna height refers to the vertical distance between the phase center and the ground. Since the antenna height cannot be directly measured, it is automatically calculated by SurPad software based on the measured height you input and measurement type you select.

  • Page 27: Start Tilt Measurement

    SHANGHAI ESURVEY GNSS CO., LTD. Start Tilt Measurement The device can support both E-bubble and IMU, which is determined by the activation code and service you purchase, but you cannot use both of them at the same time. 4.6.1 Start E-bubble Tilt Measurement It is required when tilt measurement is used and E-bubble is used.
  • Page 28 SHANGHAI ESURVEY GNSS CO., LTD. 5. Change the inclined direction and repeat step 4 until 3 tilt points are collected. After 3 tilt points are collected, the following interface shows:...
  • Page 29 SHANGHAI ESURVEY GNSS CO., LTD. 6. To save the result, press Save. The following interface shows:...

  • Page 30: Start Imu Tilt Measurement

    SHANGHAI ESURVEY GNSS CO., LTD. 4.6.2 Start IMU Tilt Measurement It is required when tilt measurement is used and IMU is used. Before starting IMU tilt measurement, to enable IMU tilt measurement, in SurPad software, press main menu Device → Device Setting, and set tilt survey to Pole Tilt Correction. To start IMU tilt measurement in SurPad software, press main menu Survey →...

  • Page 31: Internal Radio

    SHANGHAI ESURVEY GNSS CO., LTD. Internal Radio The device is equipped with 5 W internal radio. You can select the transmission power from 2 W or 5 W. There are 8 default channel frequency in which channel 8 is changeable. With firmware updated, lots of protocols in survey industrial are supported.

  • Page 32: Standard Accessories

    The standard accessories for the base station and rover station are as follows: Items Model Description Base Rover Picture Base √ √ Carrying Carry case Case (1) E800 GNSS √ √ Receiver (1) Type-C port, √ √ Charger (1) UK/America/Europe/Australia Power Cable √ √...
  • Page 34 To be the leading provider of high-precision professional, solution & service in the global geospatial industry Shanghai eSurvey GNSS Co., Ltd. Address: Building 4, No.651 Wanfang Rd, Pujiang Town, Minhang District, Shanghai, China E-mail: Sales: info@esurvey-gnss.com Support: support@esurvey-gnss.com Hote-line: +86 21 54467213 Website: https://esurvey-gnss.com/...
