Runxin F104 A User Manual

Runxin F104 A User Manual

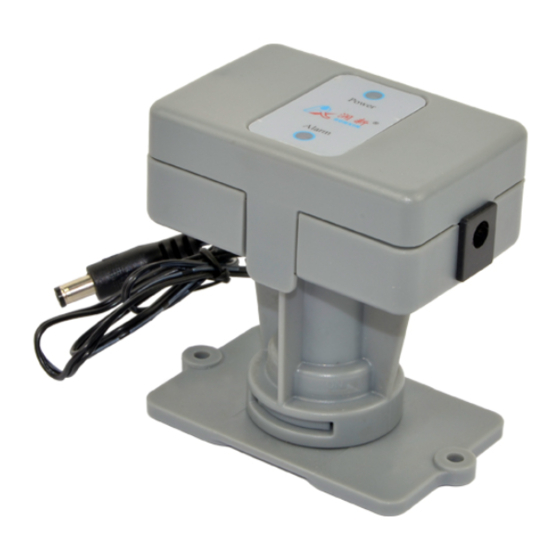

Automatic shut-off valve

Advertisement

Quick Links

Automatic Shut-off Valve
(Model F104 A/B/C/D)
User Manual
Please read this manual in details before using the valve and keep it
properly in order to consult in the future.
0WRX.466.572

Advertisement

loading
Need help?

Need help?

Do you have a question about the F104 A and is the answer not in the manual?

Questions and answers

Summary of Contents for Runxin F104 A

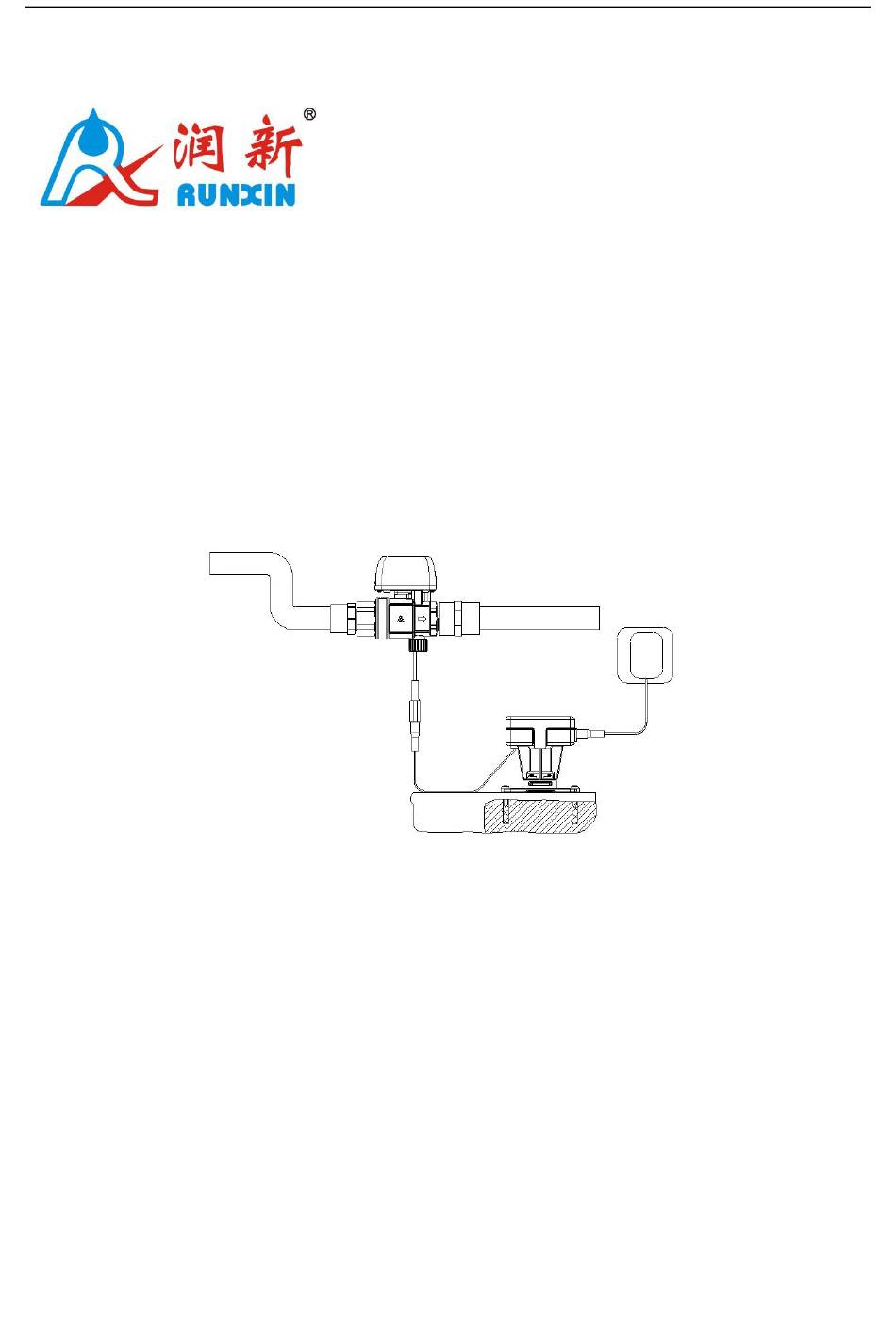

  • Page 1 Automatic Shut-off Valve (Model F104 A/B/C/D) User Manual Please read this manual in details before using the valve and keep it properly in order to consult in the future. 0WRX.466.572...
  • Page 2 F104 Catalogue 1. Product Overview................2 1.1. Main Application & Applicability........... 2 1.2. Product Characteristics............2 1.3. Product Structure and Technical Parameters......2 1.4. Installation................4 2. Application..................8 3. Warranty Card..................9...
  • Page 3: Product Overview

    F104 1. Product Overview 1.1. Main Application & Applicability Water pipeline of residential solar heater, faucet, water dispenser would have leakage when the water pressure is too high or the connector becomes old and loose, water seepage, drop, leakage even soaking in water and flooding, even a mere leakage happened in families will make people headache.
  • Page 4: Technical Parameters

    F104 Technical Parameters Speed of Temperature Power Model Name Power Input Leakage (℃) Output Closing Master F104A controller AC100~ DC12V, 5-50℃ seconds 240V/50~60Hz 1.5A Master F104C controller F104B F104B can only be used with F104A Sub-controller F104D F104D can only be used with F104C Note: 1.
  • Page 5 F104 also can be provided. 2. The matched standard power is 0.5W. The power consumption only occurs when leakage happened and the ball valve switches working position. 3. The sub-controller cannot be used alone, and it must be used with the corresponding master controller.
  • Page 6 F104 ① Installed method of double-side glue According to the direction on Figure 2, tear off the protective layer of double-side glue, then paste it and make it fixed to the ground where the detection points most easily touch the water when leakage happens, place should be dry and clean.
  • Page 7 F104 D. Wiring ①.Wiring of single detection point, as Figure 7 shows. a. Connect the controlling cable of ball valve on master controller with power cable of ball valve. b. Connect output port of power adapter with power socket of master controller.
  • Page 8 F104...
  • Page 9 F104 2. Application 2.1. When automatic shut-off valve system detects any leakage, the red indicator light will turn on, and the electronic ball valve installed in pipeline will close automatically and cut off the water. 2.2. After solving the leakage, please replace the absorbent cotton in the controller as Figure 9 shows.
  • Page 10: Warranty Card

    F104 3. Warranty Card Dear client: This warranty card is the guarantee proof of RUNXIN brand Automatic shut-off valve, which is kept by client self. You could get the after-sales services from the supplier which is appointed by RUNXIN manufacturer. Please keep it properly. It couldn’t be retrieved if lost.
  • Page 11 When product needs warranty service, please contact with your direct supplier first, after got permission, then fill in the below content and send this card together with the product to the appointed suppliers or Runxin company. End-user Tel/Cel. Company...
  • Page 12 F104 Problem Description WENZHOU RUNXIN MANUFACTURING MACHINE CO., LTD. ADD: NO.169, RUNXIN ROAD, SHANFU TOWN, WENZHOU, ZHEJIANG, CHINA TEL: 0577-88630038 88576511 FAX: 0577-88633258 http://www.run-xin.com Email: sales@run-xin.com Rev.A.2003...

This manual is also suitable for:

F104 bF104 cF104 d
