Proline Promag 55 PROFIBUS PA
!
Endress+Hauser
5.3

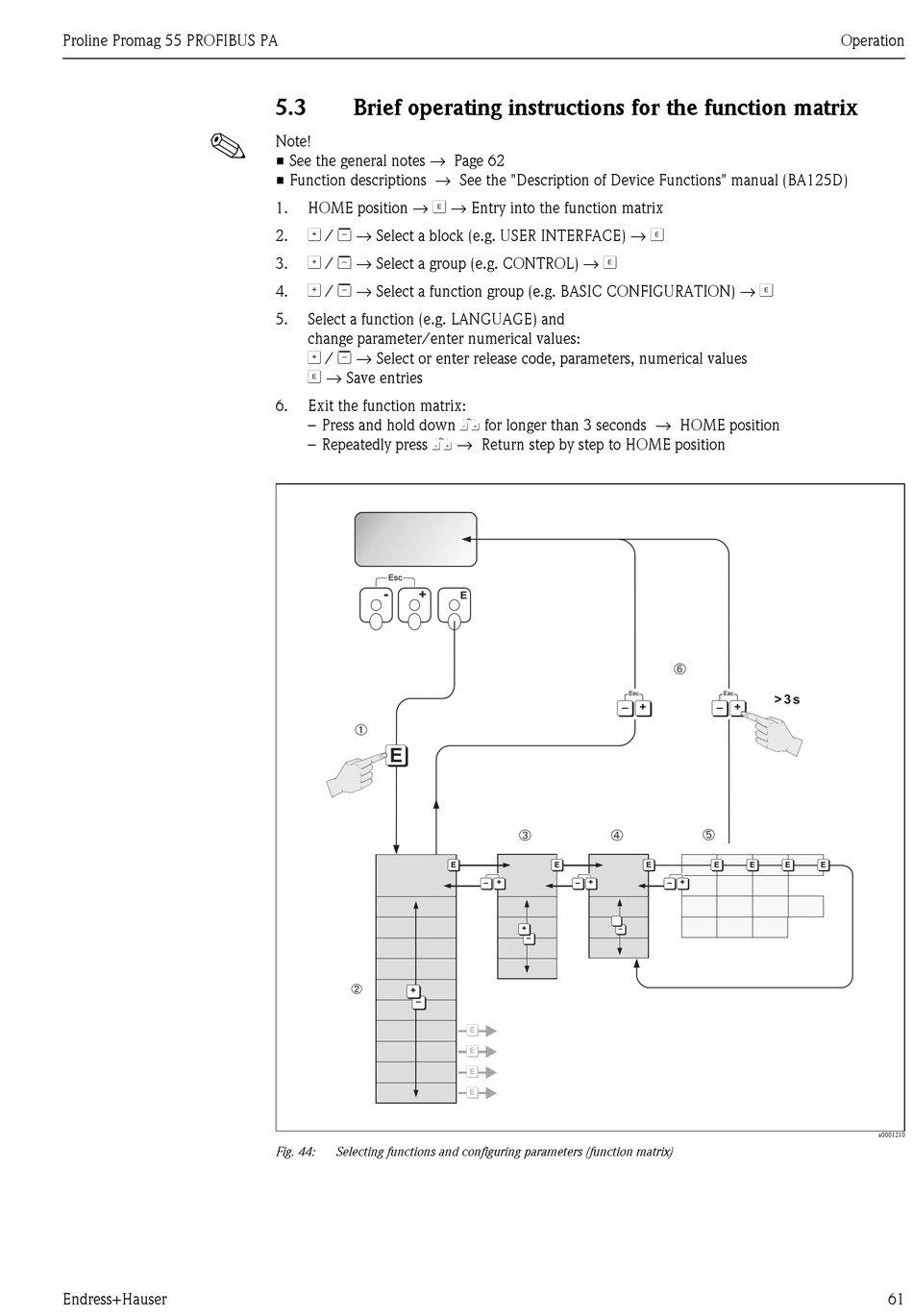

Brief operating instructions for the function matrix

Note!
• See the general notes → Page 62
• Function descriptions → See the "Description of Device Functions" manual (BA125D)
HOME position → F → Entry into the function matrix
1.
O / S → Select a block (e.g. USER INTERFACE) → F
2.
O / S → Select a group (e.g. CONTROL) → F
3.
O / S → Select a function group (e.g. BASIC CONFIGURATION) → F
4.
5. Select a function (e.g. LANGUAGE) and
change parameter/enter numerical values:
O / S → Select or enter release code, parameters, numerical values
F → Save entries
6. Exit the function matrix:
– Press and hold down X for longer than 3 seconds → HOME position
– Repeatedly press X → Return step by step to HOME position
Esc
-
+
➀
E
➁
+
–
Fig. 44: Selecting functions and configuring parameters (function matrix)
E
–
➂ ➃
E E
– + – +
+
–
–
E
E
E
E
➅
Esc Esc > 3 s
+ +
–
➄
E E E E
– +
Operation
E
a0001210
61
