Emerson Liebert GXT3 6000VA RTL630 Quick Start Manual

The Liebert GXT3 is shipped with the following items:
•
Terminal Block Communication terminals
•
Compact disc with:
o
Liebert MultiLink®
o
Configuration program
o
User manual (electronic version)
•
USB cable, one; 2m (6-1/2 ft.) long
•
Rack handles with mounting hardware
•
Plastic tower support base, one set
•
Plastic Bezel
•
Warnings, safety instructions booklet and WEEE recycling sheet (ISO 14001 compliance)

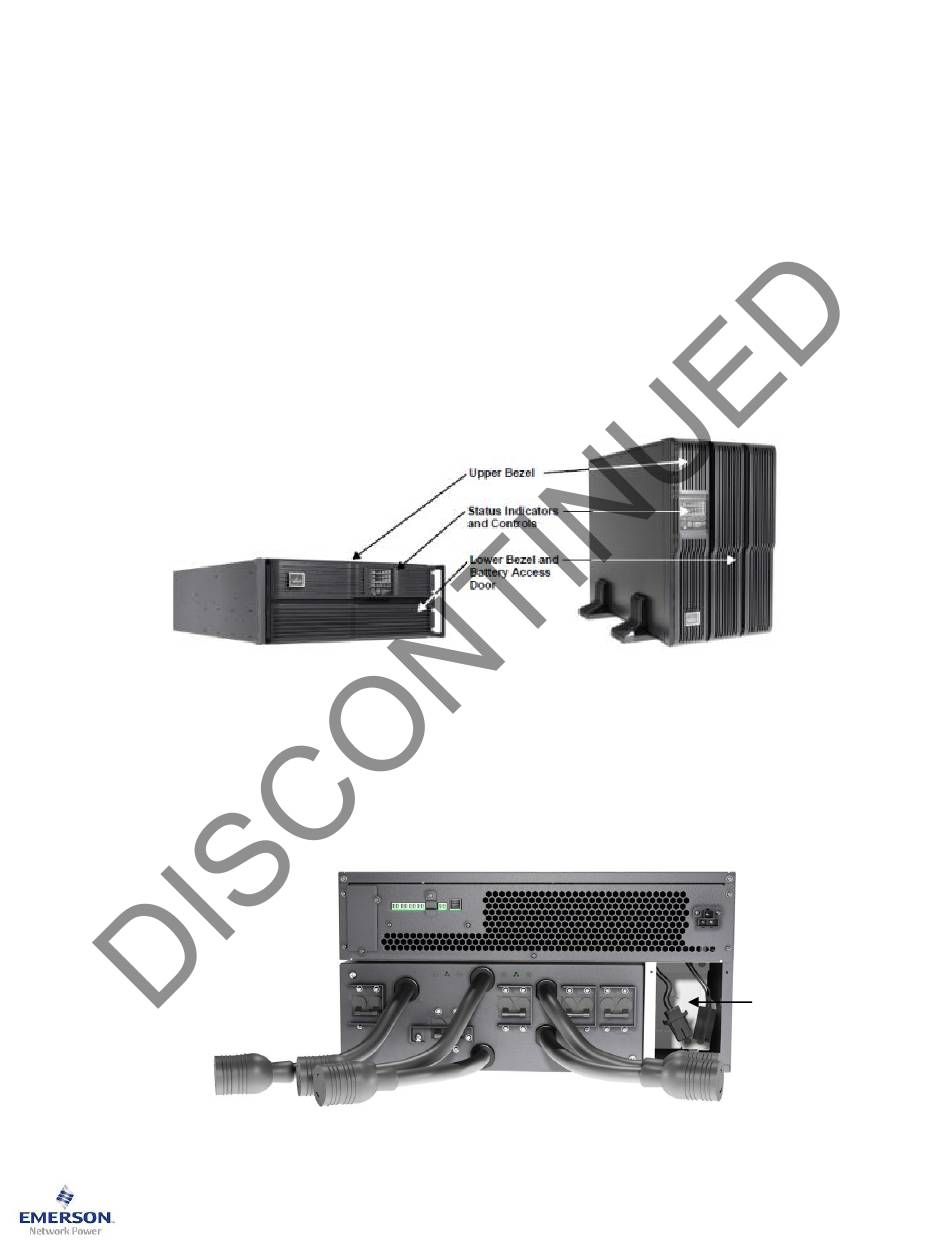

If the UPS is intended to be installed in the Tower orientation, locate the support base and spacers then assemble the two
stand assemblies with an even number of spacers in each assembly. Insert the UPS between the support base
assemblies with adequate space between the assemblies as shown in the picture below. Note the display should be
located on the upper half of the unit in the Tower orientation. To rotate the display with the bezels removed, depress the
grooved tabs on the sides and rotate it 90 degrees clockwise. If the USP is to be installed in a rack enclosure, follow the
instructions provided with the rack mounting hardware for proper installation.
The UPS is cord and plug connected using a L6-30P input plug. All wiring should be done in accordance to all local and
national electrical codes.
The UPS is equipped with output receptacles; connect the equipment to be protected to the output receptacles.
The GXT3-6000RTL630 is compatible with IT Power Systems. To configure the unit for operation on the IT Power
system, remove the 2 screws securing the cover plate in the lower right hand side on the rear of the unit and disconnect
the jumper, then replace the cover and secure with the screws.
Liebert
Quick Start Guide – 6000VA RTL630 Models
1
™
®
GXT3
SL-23185QS6L630_Rev0_09-2012
IT Power System
Connector
(with cover removed)
