3-15 SATA Interface

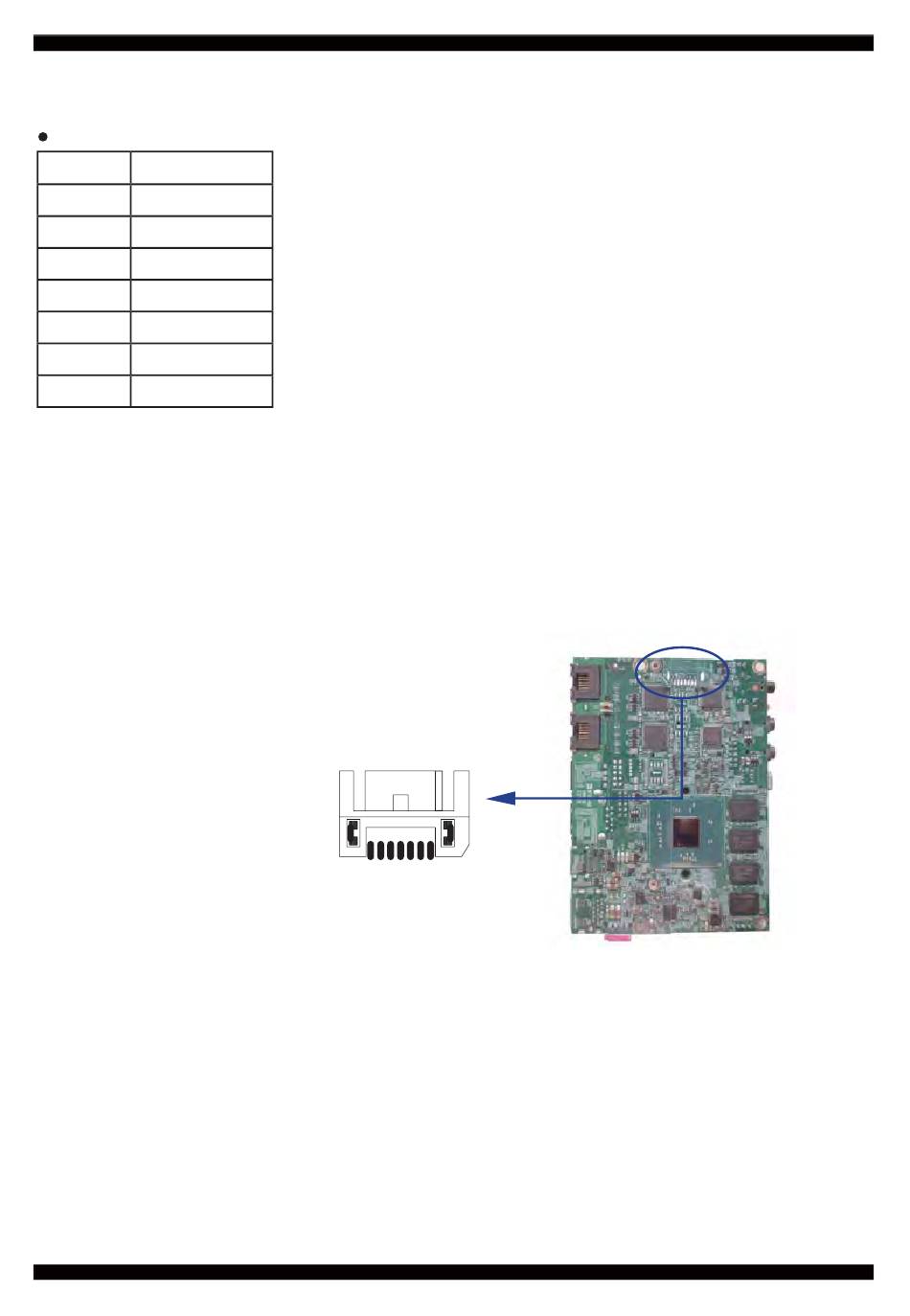

SATA1: SATA connectors ( Option )
PIN NO. Description
1 GND
2 DATA TX+
3 DATA TX-
4 GND
5 DATA RX-
6 DATA RX+
7 GND
Note: 1. SATA1 support SATA 2.0 spec update 6Gb/sec .
2. CPO1 provide SATA HDD power +12V, GND, +5V
3. The SATA signal share with mSATA of MPCE1,
but just one can be worked in same time.
SATA1
