This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
!
WARNING!
MATERIAL WHEN THE APPLIANCE IS NOT INSTALLED WITH THE ZERO CLEARANCE LINER PART NO. BI-3323-ZCL.
!
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Adults and especially children should be alerted to the hazards of high surface temperatures.
Notice to Installer: Leave these instructions with the grill owner for future reference.
N415-0541 DEC 11.18
N415-0541 DEC 11.18.indd 1
CABINET FRAME, CABINET AND COUNTER TOP MUST BE MADE FROM NON-COMBUSTIBLE
DANGER
Young children should be supervised near the gas grill.
Barrie, Ontario, CANADA L4N 4Y8
grills@napoleonproducts.com
!
Do not try to light this appliance without
reading the "LIGHTING" instructions section
of this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. An L.P. cylinder
not connected for use must not be stored in
the vicinity of this or any other appliance.
If the information in these instructions is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury or death.
Wolf Steel Ltd.
214 Bayview Drive,
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000

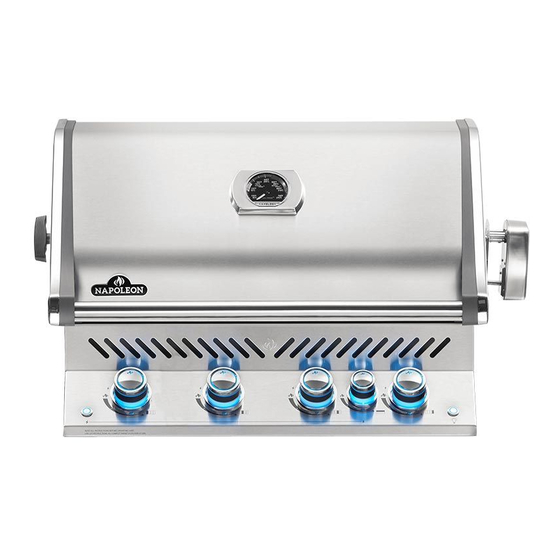

MODEL NO.
DO NOT DISCARD
BIPRO500-3
WARNING
www.napoleongrills.com
EN
FR
PG.31
PG.63
12/11/2018 1:44:09 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIPRO500-3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Napoleon BIPRO500-3

Summary of Contents for Napoleon BIPRO500-3

  • Page 1 Serial No. XXXXXX000000 MODEL NO. PG.31 DO NOT DISCARD PG.63 BIPRO500-3 WARNING! CABINET FRAME, CABINET AND COUNTER TOP MUST BE MADE FROM NON-COMBUSTIBLE MATERIAL WHEN THE APPLIANCE IS NOT INSTALLED WITH THE ZERO CLEARANCE LINER PART NO. BI-3323-ZCL. DANGER WARNING...
  • Page 2 This grill has been thoroughly inspected by a qualified technician before packaging and shipping to ensure that you, the customer, receive the quality product you expect from NAPOLEON. NAPOLEON warrants that components in your new NAPOLEON product will be free from defects in material and workmanship from the date of purchase, for the following period: Aluminum castings / stainless steel base .........

  • Page 3: Safe Operating Practices

    WARNING! Failure to follow these instructions could result in property damage, personal injury or death. Read and follow all warnings and instructions in this manual prior to operating grill. Safe Operating Practices • This gas grill must be assembled exactly according to the instructions in the manual. If the grill was store assembled, you must review the assembly instructions to confirm correct assembly and perform the required leak tests before operating the grill.

  • Page 4: General Information

    General Information This Gas Barbecue is certified under Canadian and American National Standards, CSA 1.6-2015 and ANSI Z21.58-2015 respectively for Outdoor Gas Grills and should be installed to conform according to local codes. In absence of local codes, install to the current CAN B149.1 Natural Gas and Propane Installation Code in Canada or to the National Fuel Gas Code, ANSI Z223.1 in the United States.
  • Page 5 not pass through a wall, floor, ceiling or partition, and is protected from damage. Do not use a hose to connect the unit except to connect the cylinder regulator to the piping system. It must be connected with rigid pipe, copper tube or an approved flexible metal connector which complies with Z21.24/ CSA 6.10 or ANSI Z21.75/CSA 6.27.

  • Page 6: Electrical Precautions

    BUILT IN NATURAL GAS HOOK-UP: The piping up to the gas grill is the responsibility of the installer and piping should be located as shown in the built-in instructions. A flexible metal connector is included to simplify the installation of the unit. Connect this connector to the flare fitting on the end of the manifold. Connect the other end of the connector to the gas piping.

  • Page 7: Lighting Instructions

    Lighting Instructions Lights Igniter Left Left Centre Rear Right Right Centre Burner Burner Burner Burner Burner Off Position WARNING! Open lid WARNING! Ensure all burner controls are in the off position. Slowly turn on the gas supply valve. Main Burner Rear Burner Lighting Side Burner Lighting Lighting...

  • Page 8: Cooking Instructions

    This may cause the control panel to become extremely hot to touch and the knobs to deform. Napoleon offers a wind deflector illustrated below. Install this wind deflector to help prevent the possibility of improper heat build up.
  • Page 9 Leave the lid open. See Your All Season Grill cookbook by Napoleon for more detailed instructions. Direct Cooking: Place food to be cooked on the grill directly over the heat. This method is generally used for searing or for foods that do not require prolonged cooking times such as hamburgers, steaks, chicken pieces, or vegetables.

  • Page 10: Cleaning Instructions

    Cleaning The Outer Grill Surface: Do not use abrasive cleaners or steel wool on any painted, porcelain or stainless steel parts of your Napoleon Grill. Doing so will scratch the finish. Exterior grill surfaces should be cleaned with warm soapy water while the metal is still warm to the touch. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner.

  • Page 11: Maintenance Instructions

    Maintenance Instructions We recommend this gas grill be thoroughly inspected and serviced annually by a qualified service person. At all times keep the gas grill area free from combustible materials, gasoline and other flammable vapors and liquids. Do not obstruct the flow of ventilation and combustion air. Keep the cylinder enclosure ventilation openings (located on the cart sides and at the front and back of the bottom shelf) free and clear from debris.
  • Page 12 Regulator Hose (when applicable): Check for abrasions’, melting, cuts, and cracks in the hose. If any of these conditions exist, do not use the gas grill. Have the part replaced by your Napoleon Gas Grill dealer or qualified gas installer.

  • Page 13: Troubleshooting

    Troubleshooting Problem Possible Causes Solution Low heat / Low flame For propane - improper lighting Ensure lighting procedure is followed when valve turned to procedure. carefully. All gas grill valves must be in the high. off position when the tank valve is turned on.
  • Page 14 Cracked ceramic tile. Allow burner to cool and inspect very closely for cracks. If any cracks are found, contact your authorized Napoleon dealer to order a replacement burner assembly. Leaking gasket surrounding the ceramic Contact your authorized Napoleon dealer...

  • Page 15: Warranty Information

    3. A concise description of the problem (‘broken’ is not sufficient). 4. Proof of purchase (photocopy of the invoice). In some cases, Napoleon could request to have the parts returned to the factory for inspection before providing replacement parts. Before contacting Napoleon dealer, please note that the following items are not covered by the warranty: •...

  • Page 16: Getting Started

    CAUTION! During unpacking and assembly we recommended you wear work gloves and safety glasses for your protection. Although we make every effort to make the assembly process as problem free and safe as possible, it is characteristic of fabricated steel parts that the edges and corners might be sharp and could cause cuts if handled incorrectly.
  • Page 17 BUILT-IN UNIT OPENING DIMENSIONS MODEL OPENING DIMENSIONS NOTES BIP / BIPRO500 30 3/4” 20 5/8” 8 7/8” WITHOUT ZERO CLEARANCE LINER 781 mm 524 mm 225 mm SIDE BURNER 12 3/4” 16 1/2” 4 1/2” OPENING OF AT LEAST 5 SQ IN MUST BE PROVIDED FOR 324 mm 419 mm 114 mm...
  • Page 18 BUILT-IN UNIT OPENING DIMENSIONS MODEL OPENING DIMENSIONS NOTES BIP / BIPRO500 WITH 33 ” 22 9/16” 9 1/16” ZERO CLEARANCE SHELL 840 mm 573 mm 230 mm BI-3323-ZCL KNOCK OUT 34”(864mm) RECOMMENDED WARNING! A propane tank cannot be stored below the gas grill. www.napoleongrills.com N415-0541 DEC 11.18 N415-0541 DEC 11.18.indd 18...
  • Page 19 (Pre-installed at factory.) N570-0087 (1/4” -20 X 7/8”) This grill is designed for masonry, NON-COMBUSTIBLE enclosures only when not installed with zero clearance liner, and must be installed and serviced by a qualified installer to local codes. 1. Attach the rotisserie mount bracket to the side of the grill using (2) #14 x 1/2” screws (N570-0086). 2.
  • Page 20 Heat shield Drip pan www.napoleongrills.com N415-0541 DEC 11.18 N415-0541 DEC 11.18.indd 20 12/11/2018 1:44:33 PM...
  • Page 21 4” (102mm) minimum, bottom of the grill to top of the electrical panel. 9⅝” GFI Outlet (244mm) 8” (203mm) maximum 7” (178mm) LOCATED INSIDE CABINET WARNING! Failure to follow these instructions could result in property damage, personal injury or death. The grills electrical systems are pre assembled in an electrical box which must be mounted a minimum of 4”...
  • Page 22 NON-METALIC CABINET ONLY LOCATED INSIDE CABINET www.napoleongrills.com N415-0541 DEC 11.18 N415-0541 DEC 11.18.indd 22 12/11/2018 1:44:41 PM...
  • Page 23 IM-UGC500 N570-0038 (1/4”-20 X 1/2”) N450-0008 (1/4”-20) N415-0541 DEC 11.18 www.napoleongrills.com N415-0541 DEC 11.18.indd 23 12/11/2018 1:44:44 PM...
  • Page 24 (Pre-installed at factory.) N570-0087 (1/4” -20 X 7/8”) COUNTER TOP REQUIRED. (NOT INCLUDED) IM-UGC500 www.napoleongrills.com N415-0541 DEC 11.18 N415-0541 DEC 11.18.indd 24 12/11/2018 1:44:49 PM...
  • Page 25 LOCATED INSIDE CABINET N415-0541 DEC 11.18 www.napoleongrills.com N415-0541 DEC 11.18.indd 25 12/11/2018 1:44:53 PM...
  • Page 26 www.napoleongrills.com N415-0541 DEC 11.18 N415-0541 DEC 11.18.indd 26 12/11/2018 1:44:54 PM...
  • Page 27 N415-0541 DEC 11.18 www.napoleongrills.com N415-0541 DEC 11.18.indd 27 12/11/2018 1:44:57 PM...
  • Page 28 Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Napoleon Customer Solutions department and have the grill inspected by a certified STOP gas installer.
  • Page 30 HALOGEN LAMP / LUMIÈRE HALOGÈNE HALOGEN LAMP / LUMIÈRE HALOGÈNE - - 12VAC, 10 W - - 12VAC, 10 W JUMPER IGNITER / MODULE D'ALLUMAGE FUSE / FUSIBLE - 4 A POWER TRX / TRANSFORMATEUR - INPUT / ENTRÉE : 120VAC-60Hz, 85W - OUTPUT / SORTIE : 12VAC-3333mA, 40W ELECTRODE / ÉLECTRODE POWER / PUISSANCE...
  • Page 31 ELECTRICAL INSTRUCTIONS CONSIGNES ÉLECTRIQUES READ ALL INSTRUCTIONS IN THE MANUAL PRIOR TO TURNING ON THE ELECTRICAL SYSTEMS. LISEZ TOUTES LES INSTRUCTIONS DU MANUEL AVANT DE METTRE EN MARCHE LES SYSTÈMES THE CONTROL BOX IS LOCATED IN THE CABINET UNDER THE GRILL HEAD. ÉLECTRIQUES.
  • Page 32 - black / ensemble du couvercle - noir N510-0017 black silicone lid bumper 60A / pare-chocs du couvercle 60A (silicone noir) N385-0308-SER NAPOLEON logo / logo NAPOLEON N715-0091 trim left side lid casting / garniture moulage gauche du couvercle S91005 temperature gauge / jauge de température...
  • Page 33 Parts List ITEM PART # DESCRIPTION BIPRO500 N240-0001 rear burner electrode / électrode du brûleur arrière N570-0122 1/4-20 x 3/8" screw / vis 1/4-20 x 3/8” N570-0087 1/4-20 x 7/8" screw / vis 1/4-20 x 7/8” N100-0045-SER rear burner / brûleur arrière N350-0069 rear burner housing / boîter du brûleur arrière (infra-red) N200-0120-GY1SG...
