This gas grill must be used only outdoors in a well-ventilated space and must not be used inside a
building, garage, screened-in porch, gazebo or any other enclosed area.
WARNING!
CABINET FRAME, CABINET AND COUNTER TOP MUST BE MADE FROM NON-COMBUSTIBLE MATERIAL.
DANGER
IF YOU SMELL GAS:
• Shut off gas to the appliance.
• Extinguish any open flame.
• Open lid.
• If odor continues, keep away from the
appliance and immediately call your gas
supplier or fire department.
Adults and especially children should be alerted to the hazards of high surface temperatures.
Notice to Installer: Leave these instructions with the grill owner for future reference.
214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: 1-705-726-4278 Fax: (705)725-2564
N415-0307 APR 17.14
Young children should be supervised near the gas grill.
Napoleon Group of Companies
www.napoleongrills.com
Customer service: 1-866-820-8686 or wecare@napoleonproducts.com
APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000

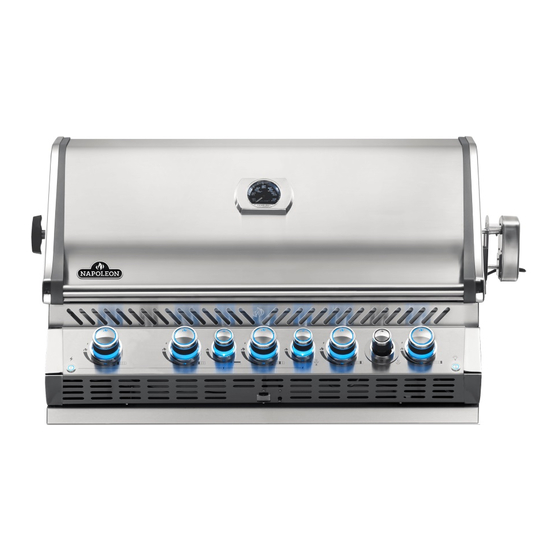

MODEL NO.
BIPRO 665
WARNING
Do not try to light this appliance without
reading the "LIGHTING" instructions section of
this manual.
Do not store or use gasoline or other
flammable liquids or vapors in the vicinity of
this or any other appliance. An L.P. cylinder
not connected for use must not be stored in
the vicinity of this or any other appliance.
If the information in these instructions is
not followed exactly, a fire or explosion may
result, causing property damage, personal
injury or death.
EN
FR
PG.31
