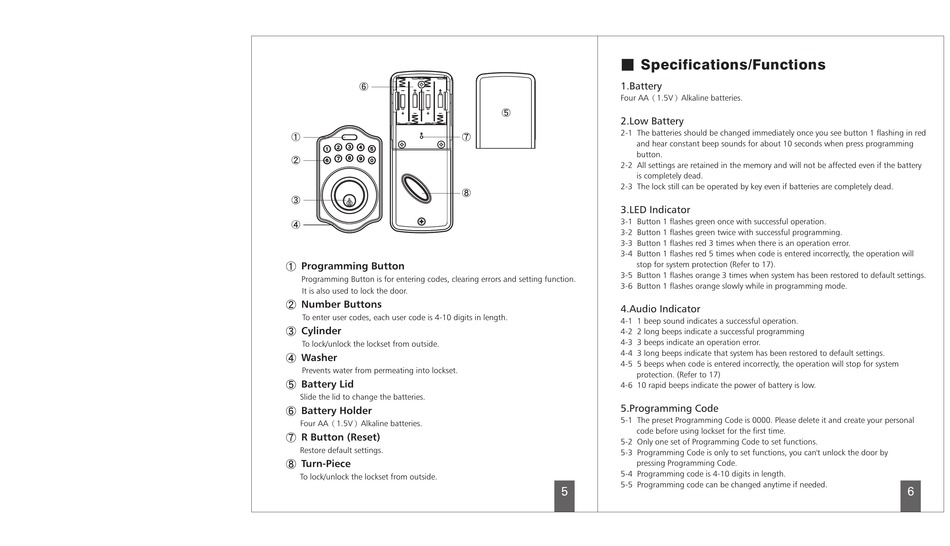

Specifications/Functions; Low Battery; Audio Indicator; Led Indicator - Kwikset PL1 User Manual


 




 Programming Button
Programming Button is for entering codes, clearing errors and setting function.
It is also used to lock the door.
 Number Buttons
To enter user codes, each user code is 4-10 digits in length.
 Cylinder
To lock/unlock the lockset from outside.
 Washer
Prevents water from permeating into lockset.
 Battery Lid
Slide the lid to change the batteries.
 Battery Holder
Four AA（1.5V）Alkaline batteries.
 R Button (Reset)
Restore default settings.
 Turn-Piece
To lock/unlock the lockset from outside.

■ Specifications/Functions

1.Battery
Four AA（1.5V）Alkaline batteries.


2.Low Battery

2-1 The batteries should be changed immediately once you see button 1 flashing in red
and hear constant beep sounds for about 10 seconds when press programming
button.
2-2 All settings are retained in the memory and will not be affected even if the battery
is completely dead.
2-3 The lock still can be operated by key even if batteries are completely dead.

3.LED Indicator

3-1 Button 1 flashes green once with successful operation.
3-2 Button 1 flashes green twice with successful programming.
3-3 Button 1 flashes red 3 times when there is an operation error.
3-4 Button 1 flashes red 5 times when code is entered incorrectly, the operation will
stop for system protection (Refer to 17).
3-5 Button 1 flashes orange 3 times when system has been restored to default settings.
3-6 Button 1 flashes orange slowly while in programming mode.

4.Audio Indicator

4-1 1 beep sound indicates a successful operation.
4-2 2 long beeps indicate a successful programming
4-3 3 beeps indicate an operation error.
4-4 3 long beeps indicate that system has been restored to default settings.
4-5 5 beeps when code is entered incorrectly, the operation will stop for system
protection. (Refer to 17)
4-6 10 rapid beeps indicate the power of battery is low.
5.Programming Code
5-1 The preset Programming Code is 0000. Please delete it and create your personal
code before using lockset for the first time.
5-2 Only one set of Programming Code to set functions.
5-3 Programming Code is only to set functions, you can't unlock the door by
pressing Programming Code.
5-4 Programming code is 4-10 digits in length.
5-5 Programming code can be changed anytime if needed.
