Johnson Controls tyco Illustra Pro Quick Start Manual

Quick Start Guide
(8200-2007-07_C0)

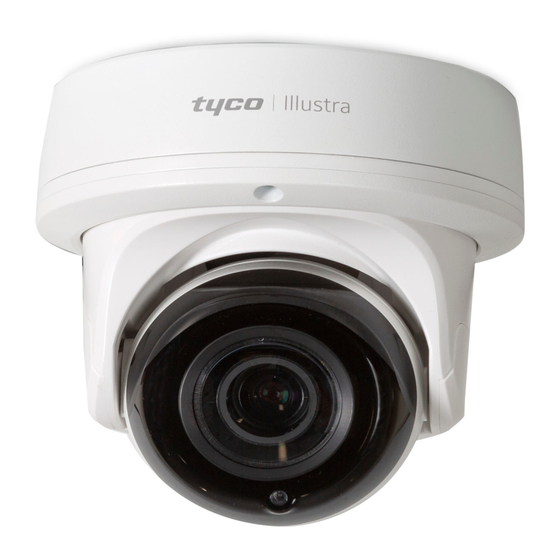

Illustra Pro Gen4, 2MP, 4MP & 8MP Indoor / Outdoor IR Dome cameras
Note: Please visit illustracameras.com for access to firmware updates that include
new features, cyber-security enhancements and bug fixes.
In the box
 1 x Camera
 1 x T20 Security Key
 4 x TP4 32mm screws & 4 x Plastic screw anchors
 1 x Water proof rubber (1 hole)
 1 x Water proof rubber (3 holes)
 1 x Water proof rubber insert tool
 1 x Printed Regulatory Document
 1 x Printed QSG
 1 x Camera bottom base (use in a wall mount installation)
 1 x Camera bottom base cable hole cover
 1 x Mounting template (use with the bottom case / wall mount installation)
 1 x Mounting template (use in an in-ceiling mount installation)
 1 x Metal cover
Installation tools
 1 x Screw driver
 1 x Drill
 1 x Wire cutters

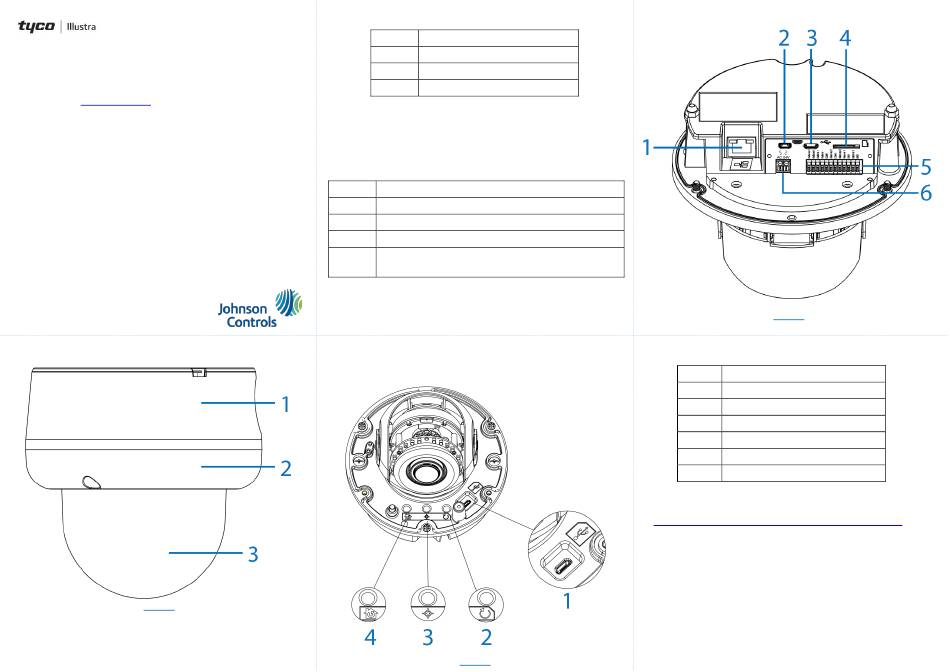

Figure 1: PG4 Indoor / Outdoor IR Dome camera parts
Figure 1
Table 1: Camera parts descriptions
Security
Number
1
2
3
Quick reference

Default IP: 192.168.1.168 (DHCP enabled)

Default Username / Password: admin / admin

Power: PoE Class 3 or 24V AC
Table 2: Camera interface (Bubble assembly side)
Number
1
2
3 Auto focus (Set the camera focus during installation)
Reset to Factory default but preserve IP Address (Hold for 5
4
Figure 2: Camera interface (Bubble assembly side)
Note: Use the T20 security key to remove the three screws on the dome cover (2)
(Figure 1) to access the interior buttons and USB connection.
Description
Camera bottom base
Dome cover base
Dome
Description
USB port connection
Reboot button
seconds)
Reset to factory default (Hold for 20 seconds)
Figure 2
Figure 3: Camera interface (Base assembly side)
Figure 3
Table 3: Camera interface (Base assembly side)
Number Description
1 Ethernet port
2 Micro HDMI cable port
3 Mini USB cable port
4 Micro SD card slot
5 Audio and alarm pins
6 Power connector
Mounting the camera
Refer to the Illustra mounting accessories webpage
https://www.illustracameras.com/products/accessories/mounts
assistance. The following mount accessory part numbers are
applicable with the Illustra Pro Gen4 2MP, 4MP and 8MP IR Indoor /
Outdoor Dome cameras: ADCi6DPCAPOW, ADLOMARM,
ADCDMCRNRO, ADCDMPOLE and IBJB-P-ISWB-0.
for
