Quick Start Guide
(8200-1994-04_C0)
Tyco Holis JSV Versatile 2MP & JSA Advance 4MP IR Dome Cameras
(Product Code: JSV02-D02-OI01 and JSA04-D02-OI01)
In the box

1 x Camera

1 x Quick Start Guide

4 x PA 4x25mm tapping screws

1 x Mounting template

4 x 6x29mm Plastic screw anchors

1 x Sponge

1 x L-Key Hexagonal wrench

1 x CVBS & DC IN cables

1 x Regulatory Document
Installation tools

Screwdriver

Drill

L-Key Hexagonal wrench

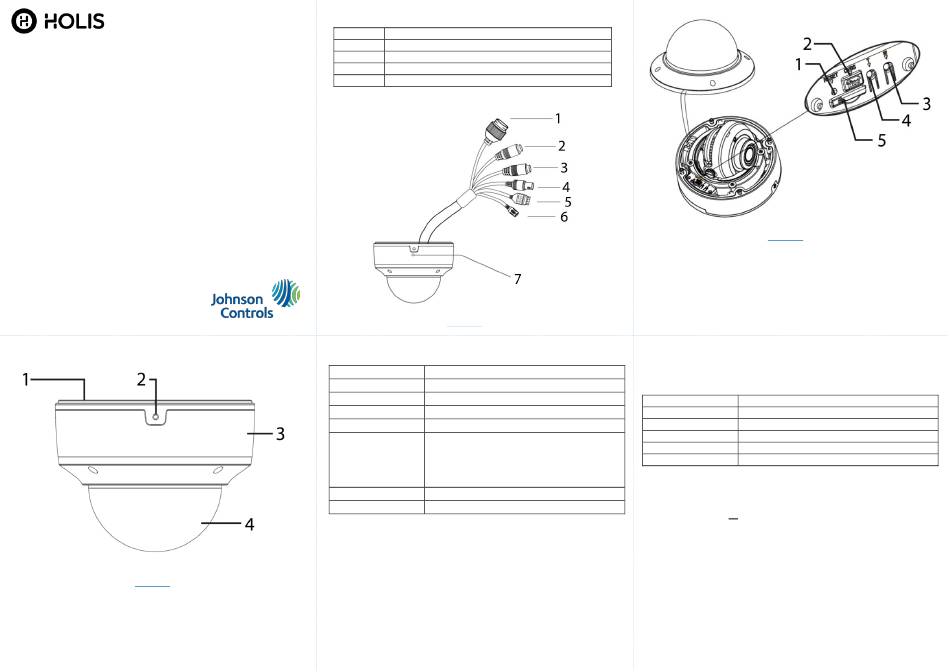

Figure 1: Camera parts
Figure 1
Table 1: Camera part descriptions
Security
Number
1 Camera base
2 Lock screw
3 Camera dome cover
4 Camera dome
Figure 2: Cable connections
Table 2: Cable connection descriptions
Number
1
2
3
4
5
6
7
Camera part description
Figure 2
Cable connection description
Ethernet Connector and also supports PoE
Audio Input (Mic)
Audio Output (HP)
CVBS Video Output
Alarm Input / Output
 1 – Alarm OUT COM
 2 – Alarm OUT Open
 3 – Alarm IN
 4 – Alarm IN GND
Power Connector (12V DC @ 1A)
Microphone
Figure 3: Micro SD card slot and camera buttons
Figure 3
Figure 3: Micro SD card slot and camera buttons (continued)
Note: Remove the four screws on the camera cover (3) (Figure 1) to
access the buttons. Securely attach the cover when finished.
Table 3: Camera button descriptions and SD card slot
Number Camera button description
1 Reset button (Hold for more than 3 seconds)
2 DC IN & CVBS Interface
3 Zoom -
4 Zoom +
5 Micro SD card slot
Quick reference
 Default IP: 192.168.1.168 (DHCP enabled).
 Default Username / Password: admin / admin
 Power: 12VDC or PoE 48VDC (2MP also supports 24V AC).
 Use Internet Explorer 11 web browser.
Mounting the camera to a wall or ceiling
Ensure that the wall or ceiling is strong enough to withstand three times
the weight of the camera.
1. Place the mounting template on the surface that you want to attach
the camera.
2. On the surface drill four Ø 6mm holes and cut out a Ø 22mm cable
hole as per the markings identified on the mounting template.
3. Securely place the four screw anchors into the four holes.
4. Remove the four screws on the camera cover (3) (Figure 1) and the
fixing screw (2) (Figure 1) to remove the cover from the camera
base.
