Johnson Controls ILLUSTRA IQ Quick Start Manual

Quick Start Guide
(A163820G0G_A)

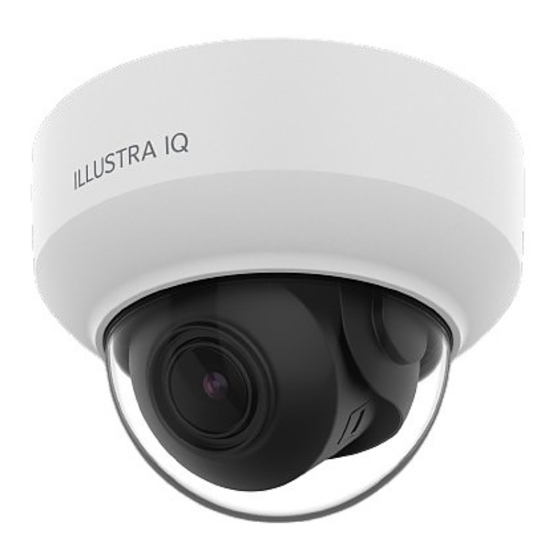

Illustra Flex Gen4 Indoor Dome Camera
(PN's = IFS02-D12-ATB4, IFS05-D12-ATB4 & IFS08-D13-ATB4)
In the box
1 x Indoor dome camera
1 x Mounting template sticker
1 x Mounting plate
2 x 50x4mm tapping screws
2 x 40x6mm plastic screw anchors
2 x 10x4mm mounting plate screws
1 x Printed Quick Start Guide
Installation tools
1 x Drill

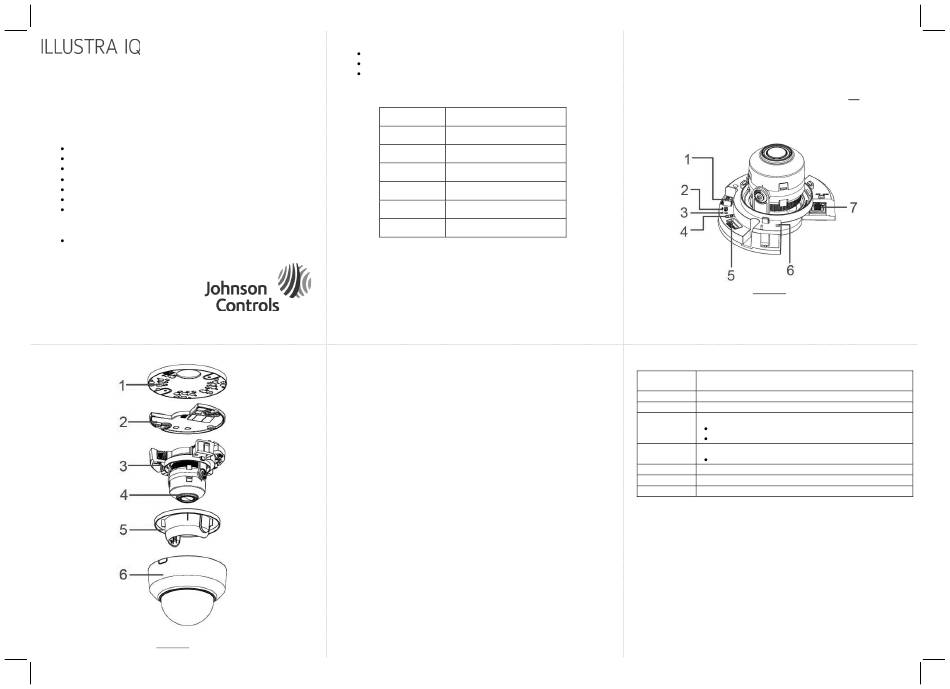

Camera Parts: Figure 1
Figure 1
PT01-006062A_FG4-ID-Dome-QSG_A163820G0G_A.en(3-8-23).pdf 1 PT01-006062A_FG4-ID-Dome-QSG_A163820G0G_A.en(3-8-23).pdf 1
Quick reference
Default IP: 192.168.1.168 (DHCP enabled)
Security
Default Username / Password: admin
Power: AC24V / PoE 802.3af
Table 1: Camera part descriptions
Camera Part
1
2
3
4
5
6
Mounting and powering up the camera
1. Place the mounting template sticker on the surface that you
want to attach the camera.
2. On the surface drill two Ø 6mm holes and cut out a cable hole
as per the markings identified on the mounting template sticker.
3. Securely place the two screw anchors into the two Ø 6mm
holes.
Mounting and powering up the camera (continued)
4. Hold the camera dome with one hand and rotate the camera
base to unlock it and remove it from the dome.
Note: The camera dome includes a 'lock' and 'unlock' symbol to
assist with step 4.
5. Gently pull up and remove the camera lens cover (5) (Figure 1)
to easily access the cable connections and buttons.
6. Connect the PoE cable to the PoE slot on the camera or the
AC24V cable to the AC24 connection on the camera.
7. Before you secure the mounting plate (1) (Figure 1) to the
camera base (2) (Figure 1) you must place the cable through
the cable hole on the camera mounting plate.
8. Place the mounting plate onto the camera base so that the three
semicircular swellings on the mounting plate fit correctly into the
three screw holes on the camera base.
9. Place the cable through the cable hole on the mounting surface.
10. Hold the mounting plate with camera base up to the mounting
template and align two screw holes on the camera base with the
two screw holes on the mounting surface.
11. Insert the two screws into the two holes on the camera base
and securely attach the mounting plate and camera base to the
surface.
12. Insert the camera lens cover (5) (Figure 1) on to the camera
lens.
Description
Mounting Plate
Camera base
Camera body
Camera Lens
Camera lens cover
Dome Cover
Mounting and powering up the camera (continued)
13. Hold the camera dome (6) (Figure1) up to the camera base and
rotate the camera dome to securely lock it to the camera base.
Note: The camera dome includes a 'lock' and 'unlock' symbol to
assist with step 13.
14. Connect the AC 24V cable to an AC 24V terminal or connect the
RJ-45 jack to a PoE compatible network device that supplies
power through the Ethernet cable.
Camera buttons and connections: Figure 2
Figure 2
Table 2: Camera buttons and connections descriptions
Button
Description
/connection
1 AC cable connection
2 USB cable connection
Factory reset
3 Hold for 5 seconds for soft reset
Hold for 20 seconds for hard reset
Focus button
4
Hold for 3 seconds to run one touch focus
5 Audio / Alarm cable connection (P/N = IA-CBL-IO-F30)
6 Micro SD card insert
7 Ethernet / PoE cable slot
